Coleman Mach 10 13,500 BTU RV Rooftop Air Conditioner, Black
Coleman Mach 10 13,500 BTU RV Rooftop Air Conditioner, Black — Product description

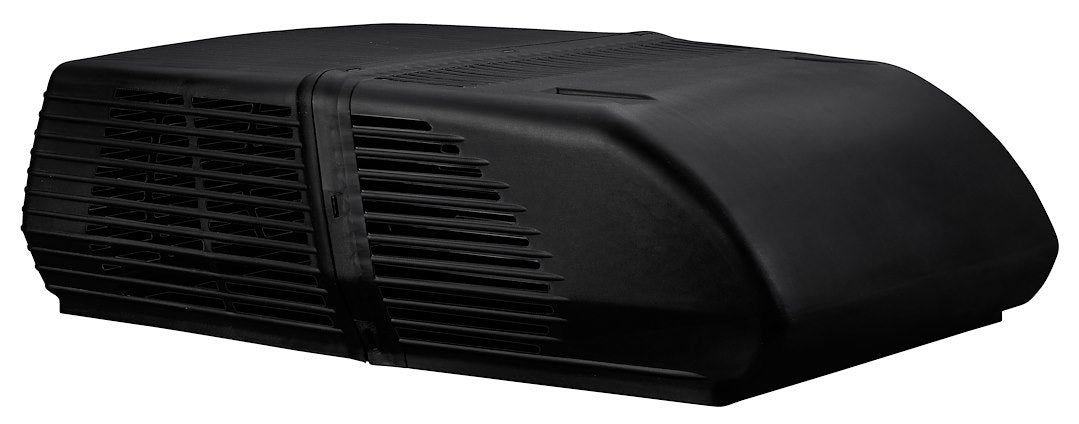

The Coleman Mach 10 is a 13,500 BTU rooftop air conditioner built for RVs, travel trailers, and fifth wheels. It drops onto a standard 14 by 14 inch vent opening, runs on 120 volt power, and keeps a mid-size rig comfortable through a hot afternoon. Textured black finish, top mount design.
If your rig runs hot in the afternoon, a 13,500 BTU unit like the Mach 10 has the muscle to keep up. It mounts down through a standard 14 by 14 inch roof vent opening, so it's a straight swap on most travel trailers and fifth wheels. The top and down mount design lets you run it ducted or non-ducted depending on your ceiling setup.
It pulls 120 volt power and draws about 11 amps at the compressor, so plan your shore power or generator around that. This is a cooling-only unit. There's no heat pump and no condensate pump built in, which keeps the weight down to 80 pounds and the profile clean at 11.8 inches tall.
One thing to know before you order. The ceiling assembly and thermostat aren't included. You'll need to add the matching ceiling kit and a compatible thermostat to finish the install. If you're swapping out an old Coleman unit, you might already have those on the roof. And the textured black finish hides road grime better than white.
Key Features
- 13,500 BTU cooling output handles mid-size travel trailers and fifth wheels through hot afternoons
- Fits a standard 14 in x 14 in roof vent opening for a straight swap on most rigs
- Top/Down mount design runs ducted or non-ducted depending on your ceiling setup
- 120 volt power with an 11 amp compressor draw, sized for shore power or a generator
- 80 lb weight and a low 11.8 in profile in a textured black finish that hides road grime
Why Buy from NVN Marine
- Authorized COLEMAN RVP reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Coleman Mach 10 13,500 BTU RV Rooftop Air Conditioner, Textured Black |
|---|---|
| Brand | Coleman RVP |
| Manufacturer Part Number | 35203-0792 |
| UPC | 755790008698 |
| Cooling Capacity | 13,500 BTU |
| Voltage | 120 Volt |
| Compressor Draw | 11 Amp |
| Mount Design | Top/Down Mount |
| Color | Textured Black |
| Fits Vent Opening | 14 in x 14 in |
| Weight | 80 lb |
| Dimensions (L x W x H) | 38 in x 26.1 in x 11.8 in |
Frequently asked questions
Does this air conditioner include the ceiling assembly and thermostat?
No. The Mach 10 ships as the rooftop unit only. You'll need to order the matching ceiling assembly and a compatible thermostat separately to complete the install.
What size roof opening does it need?
It fits a standard 14 by 14 inch vent opening, which is the common cutout on most travel trailers and fifth wheels.
Does it have a heat pump?
No. This is a cooling-only model with no heat pump and no built-in condensate pump. If you need heat, you'll run your furnace or a separate heat source.
What power does it need to run?
It runs on 120 volt power and draws about 11 amps at the compressor, so make sure your shore power or generator can handle the load.
