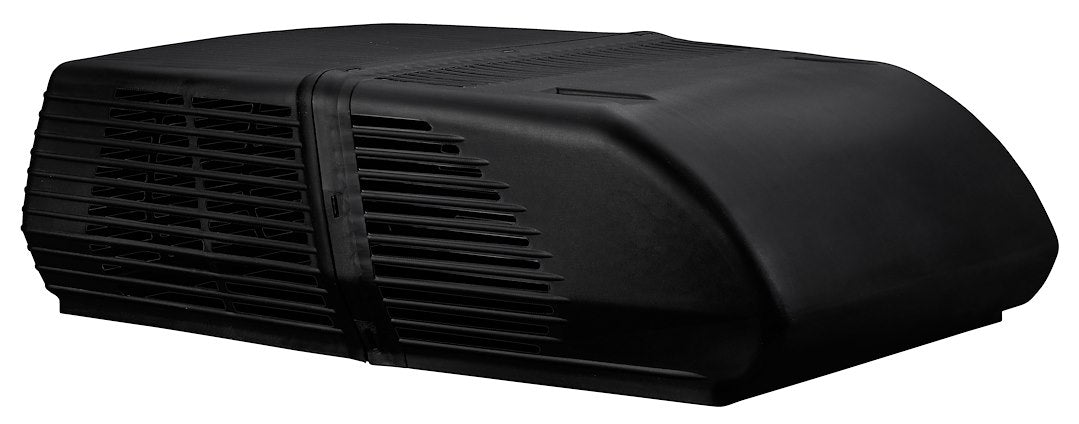

Coleman Mach 10 13,500 BTU Ducted Heat Pump RV Rooftop AC
Coleman Mach 10 13,500 BTU Ducted Heat Pump RV Rooftop AC — Product description
The Coleman Mach 10 is a 13,500 BTU ducted rooftop air conditioner with a built-in heat pump, sized for RVs and trailers with standard 14 by 14 inch roof vents. Quiet Design keeps overnight cycles livable, and the heat pump adds cool-weather warmth without running the furnace.
The Coleman Mach 10 is a 13,500 BTU rooftop air conditioner built for RVs, travel trailers, and fifth wheels that run on standard 14-inch by 14-inch roof vent openings. It's a ducted top/down mount unit, so it pushes cool air through your rig's existing ceiling ductwork instead of dumping it all in one spot. That means more even temperatures from the front cap back to the bedroom.
What sets this model apart is the built-in heat pump. On cool mornings you get supplemental heat without firing up the propane furnace, which saves fuel and keeps things quiet. And speaking of quiet, Coleman's Quiet Design shroud keeps compressor and fan noise down so you can actually sleep through an overnight cycle.
It runs on 120 volts with an 11.5-amp compressor draw, so it's a good match for standard shore power and most onboard generators. The textured black shroud weighs 82 pounds and measures 38 by 26.1 by 11.8 inches. One heads-up before you order: the ceiling assembly and thermostat aren't included with this unit and must be ordered separately.
Key Features
- 13,500 BTU cooling with an integrated heat pump, so you get cold air in summer and supplemental heat in cooler weather without running the propane furnace.
- Ducted top/down mount design distributes air through your RV's existing ceiling ductwork for even, quiet cooling front to back.
- 120-volt operation with an 11.5-amp compressor draw, sized for standard RV shore power and most onboard generators.
- Fits standard 14-inch by 14-inch roof vent openings for a straightforward rooftop install or replacement.
- Textured black Quiet Design shroud, 82 pounds, with a 38 x 26.1 x 11.8 inch footprint.
Why Buy from NVN Marine
- Authorized COLEMAN RVP reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Coleman Mach 10 13,500 BTU Ducted Heat Pump RV Air Conditioner, Textured Black |
|---|---|
| Brand | COLEMAN RVP |
| Manufacturer Part Number | 35003-0794 |
| UPC | 755790010752 |
| Cooling Capacity | 13,500 BTU |
| Heat Pump | Yes |
| Mount Type | Top/Down Mount, Ducted |
| Design | Quiet Design |
| Fits Vent Opening | 14 in x 14 in |
| Voltage | 120 Volt |
| Compressor Draw | 11.5 Amp |
| Color | Textured Black |
| Dimensions (L x W x H) | 38 in x 26.1 in x 11.8 in |
| Weight | 82 Pounds |
| Condensate Pump | None |
Frequently asked questions
Does the Coleman Mach 10 include a heat pump?
Yes. This is a heat pump model, so it both cools in summer and provides supplemental heat in cooler weather. That lets you take the chill off in the morning without firing up the propane furnace.
Will it fit my RV roof opening?
It's designed for standard 14-inch by 14-inch roof vent openings, which is the most common size on RVs, travel trailers, and fifth wheels. Measure your existing opening before ordering to confirm the fit.
Does it come with a ceiling assembly and thermostat?
No. The ceiling assembly and thermostat must be ordered separately. Make sure you match a ducted ceiling assembly to this unit for the top/down mount ducted configuration.
What power does it need to run?
It runs on 120 volts with an 11.5-amp compressor draw, so it works with standard RV shore power and most onboard generators sized for a rooftop air conditioner.
Is this a ducted or non-ducted unit?
Ducted. It's a top/down mount ducted design that pushes air through your rig's existing ceiling ductwork rather than discharging from the unit itself, which gives you more even temperatures throughout the coach.
