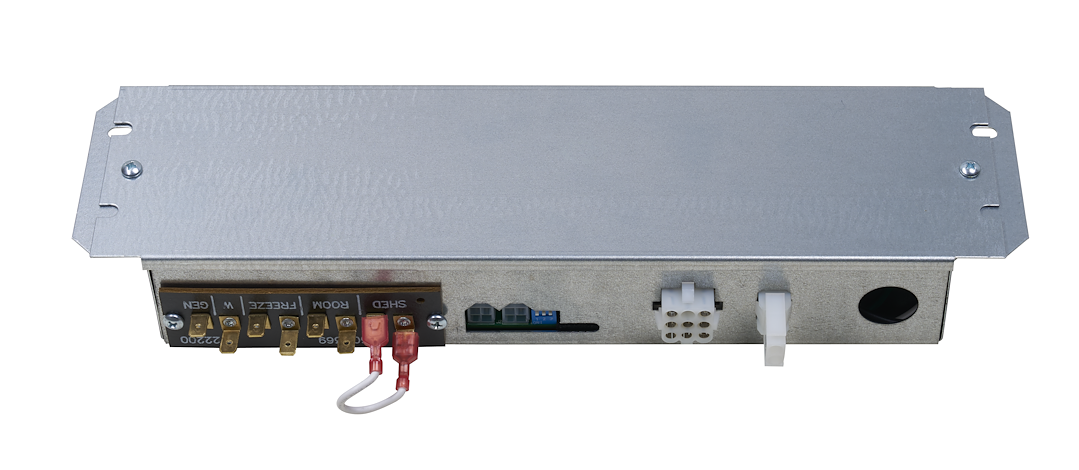

Coleman 9430-758 RV AC Control Box | 9420A330
Coleman 9430-758 RV AC Control Box | 9420A330 — Product description
The Coleman RVP 9430-758 is the replacement control box for RV rooftop air conditioners built around the 9420A330 thermostat, set up without a heat pump and with the heat strip option. It's the brains that ties your thermostat to the unit.
When a Coleman rooftop air conditioner stops responding to the thermostat, the control box is usually where you start looking. The 9430-758 is the factory replacement for systems running the Coleman 9420A330 thermostat, wired without a heat pump and set up for the heat strip option. If that's your configuration, this is the box that matches it.
It's a straight swap for a failed or damaged original. The control box handles the switching between your thermostat and the air conditioner, so when it goes bad you'll see the unit stop cooling, stop running the fan, or quit answering the wall control entirely. Getting the right part number matters here, because Coleman builds these boxes for specific setups. This one's for the no heat pump, heat strip configuration, so check your existing box and your thermostat model before you order.
We'd point any RV owner toward matching the part number on the old box to what's printed here. That's the surest way to know you're getting a direct fit.
Key Features
- Factory replacement control box for Coleman RVP rooftop air conditioners
- Built for systems using the 9420A330 thermostat
- Configured without heat pump, with heat strip option
- Direct-fit swap for a failed or damaged original control box
- Genuine Coleman RVP part, MPN 9430-758
Why Buy from NVN Marine
- Authorized COLEMAN RVP reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Coleman RVP 9430-758 RV Air Conditioner Control Box |
|---|---|
| Brand | COLEMAN RVP |
| Manufacturer Part Number | 9430-758 |
| UPC | 755790004911 |
| Type | Control Box |
| Compatible Thermostat | 9420A330 |
| Heat Pump | Not equipped |
| Heat Strip | Heat strip option |
Frequently asked questions
What air conditioner setup does this control box fit?
It's built for Coleman RVP rooftop units running the 9420A330 thermostat, wired without a heat pump and set up with the heat strip option. Match your existing box before ordering.
Does this work with a heat pump system?
No. This box is for units without a heat pump. It's the heat strip configuration, so a heat pump setup needs a different part number.
How do I know if my control box is the problem?
Common signs are the AC not responding to the thermostat, not cooling, or the fan not running when it should. If the wall control is fine and the unit still won't answer, the control box is a likely culprit.
Is this a genuine Coleman part?
Yes. It's a genuine Coleman RVP part, MPN 9430-758.
