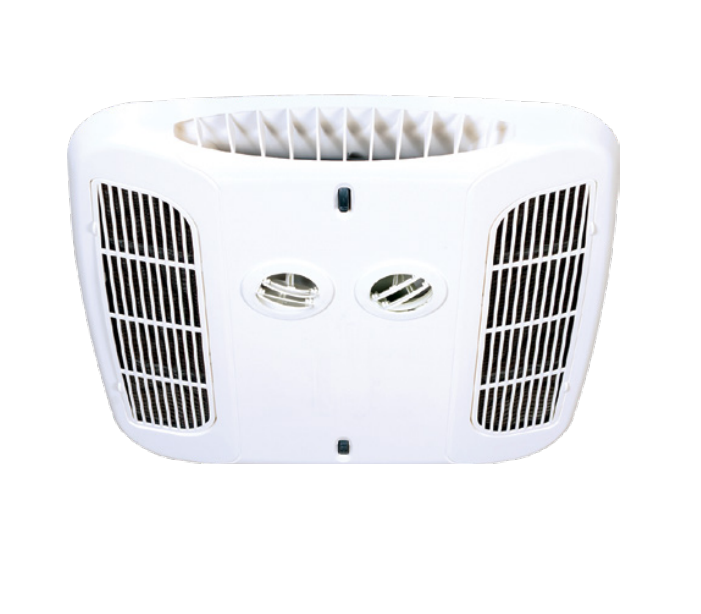

Coleman 9430-4553 Non-Ducted Ceiling Plenum, Wall Thermostat

If you've got a Coleman Mach non-ducted rooftop air conditioner, the ceiling plenum is the interior half of the system. It bolts to the ceiling of your RV directly under the roof-mounted unit, and it's the piece that actually moves conditioned air into the living space. This is Coleman part 9430-4553, the plenum-only assembly built for setups that run a wall thermostat instead of a ceiling-mounted control box.

Non-ducted is the simplest way a rooftop unit can be set up. Instead of routing air through ductwork hidden in the ceiling, a non-ducted system drops the cold air straight down through the plenum into one open space. You'll find this arrangement on smaller travel trailers, truck campers, and single-zone coaches where one roof unit cools the whole cabin. The plenum houses the return-air grille and the supply louvers, so it's the part you actually see and touch from inside. Air gets pulled back up through the filter, across the evaporator in the roof unit, and pushed back down through the discharge vents.

Here's the important detail. A lot of non-ducted ceiling assemblies come with the controls built right into the plenum, a knob or a small panel you reach up and adjust. This one doesn't. It's the plenum-only version, which means the temperature and fan control live on a wall thermostat somewhere in the coach. That's a cleaner setup for a lot of owners. You set the temp at eye level instead of reaching up to the ceiling, and it plays nicely with the zone-control and digital wall thermostats Coleman uses across the Mach line. If your rig is wired for a wall thermostat, or you're converting to one, this is the plenum you want.

Most folks buying this are replacing a plenum that's seen better days. UV exposure and years of vibration take a toll. The plastic gets brittle, louvers snap, the return grille cracks, or a leak stained the whole assembly and it's time for a fresh one. Swapping the plenum is a job a handy owner can knock out in an afternoon. You drop the old assembly, transfer or replace the filter, line the new plenum up with the roof unit's opening, and snug it to the ceiling. Take your time on the gasket and the fit so you don't get air bypass or a whistle when the blower runs.

Because it's non-ducted, the air has a short, direct path from the roof unit into the cabin, which means strong airflow and quick cooldown on a hot afternoon. There's no duct run to lose air pressure along the way. The tradeoff is that everything cools as one zone, so it's ideal for open-floorplan trailers and campers rather than a big coach where you'd want separate bedroom and living-area control. For the rigs it's meant for, a non-ducted plenum is hard to beat for straightforward, reliable cooling.

A couple of things this is not. It's not the air conditioner itself, and it's not the roof-mounted mechanical unit with the compressor and evaporator. It's the interior ceiling plenum only. It also doesn't include a wall thermostat, so if you're building a system from scratch you'll need to source the matching Coleman wall stat separately. And because it's the plenum-only version, there's no ceiling control box in the box. Confirm your Mach unit is the non-ducted style and that it's set up for wall-thermostat control before you order, so you end up with the right interior assembly the first time.

Keep the return-air filter clean once the new plenum is in. A clogged filter is the number one reason a rooftop unit stops cooling well, and the filter sits right in the plenum where it's easy to pull and rinse. Give it a look at the start of every season and after any dusty stretch of travel. A clean filter and a well-sealed plenum are most of what keeps a Mach unit blowing cold for years.

Coleman has built RV comfort gear for decades, and the Mach line is one of the most common rooftop setups on the road. Match this plenum to your specific Mach model, verify it's a non-ducted, wall-thermostat configuration, and you've got a clean replacement that puts the air right where you need it. When in doubt on fitment, check your unit's model number against the part before you install.
