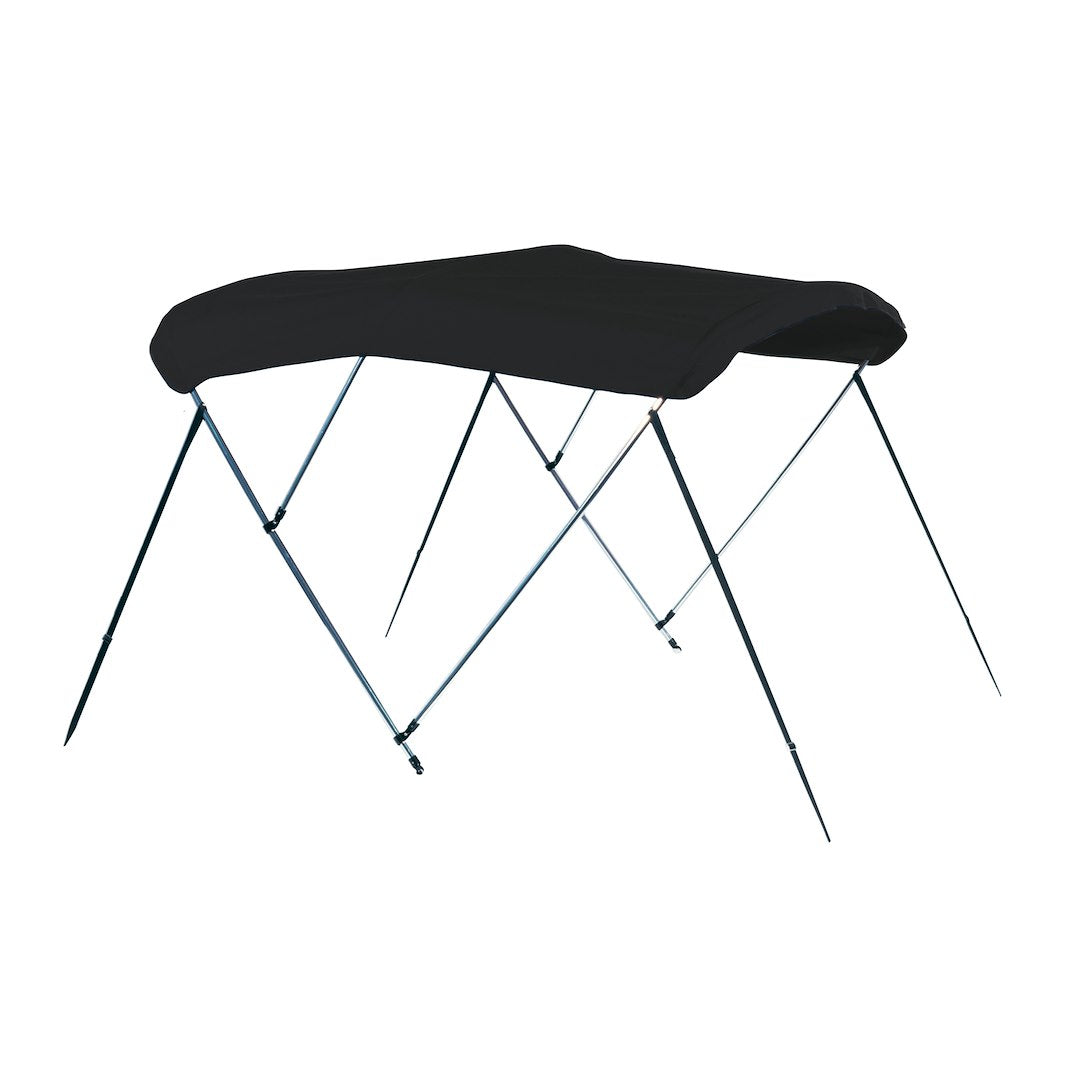

Carver A5475TB-02 3-Bow Bimini Top 54in 73-78in Jet Black

A bimini top is about the cheapest shade you'll ever add to a center console, and it pays you back every single trip out. The Carver A5475TB-02 is a 3-bow model sized for boats with a 73 to 78 inch beam at the mounting points, which covers a big slice of the 20 to 23 foot center console and bay boat market. You get 54 inches of clearance under the canopy and 72 inches of fore-and-aft coverage, so the helm and the front of the cockpit stay out of the sun through the worst of the afternoon. On a hot day offshore, that patch of shade is the difference between a crew that's still fishing at 2 PM and one that's already headed for the ramp.

The frame is round-tube anodized aluminum, and that anodizing matters more than it sounds. Bare aluminum pits and chalks fast in salt air. The anodized coating gives you a hard, corrosion-resistant surface that holds up season after season, even on a boat that lives in a slip. Three bows means the top keeps its shape and doesn't flap or belly the way a two-bow does when you're running into a chop. It's a manual top, so you raise it and drop it by hand. No motor, no switch, no wiring to corrode and quit on you. For a bimini, that simplicity is exactly what most boaters want.

The canopy is Jet Black in Sunbrella or Outdura premium acrylic, and both are the good stuff. Solution-dyed acrylic keeps its color for years instead of fading out to a tired gray, and it comes water repellent, UV resistant, and mildew resistant straight off the roll. Black runs a touch warmer than a light color in direct sun, sure, but it hides dirt, looks sharp against a dark hull, and blocks light well. Carver's been sewing marine canvas in the USA for more than 30 years, and you can see it in the stitching and the way the fabric sits on the frame.

Fit is the part worth slowing down on. That 73 to 78 inch spec is the width the top is built to span at the mounting brackets, not the overall beam of your boat. Measure gunwale to gunwale right where you plan to mount the hardware before you order, and if you land between sizes, check the neighboring width kits in this same Carver series. On some 22 foot consoles the aft edge of the top can crowd a tall leaning post or a bank of vertical rod holders, so check that clearance too. If your deck is on the thin side, back up the mounting bolts with plates or large fender washers so nothing works loose over a season of pounding.

Install is a one-person, one-afternoon job with basic hand tools. The kit ships with the frame, the fitted canopy, and mounting hardware, plus a storage boot that zips over the folded top when you drop it for trailering or a fast run home. We always tell folks to raise and lower the frame a few times before drilling a single hole, so the bows swing clean and everything lines up square. Get the geometry right on day one and this top will hand you shade for a decade.

So who's it for? Anybody running an open center console who's tired of cooking at the helm all summer. Just know what it is. It's shade for the driver and the forward cockpit, not a full enclosure, so it won't keep rain off the whole boat and it won't turn your console into a cabin. If that's what you're after, a full camper canvas package is the better call. But for simple, reliable sun protection that goes up in seconds and stows just as fast, a 3-bow Carver is awfully hard to beat.
