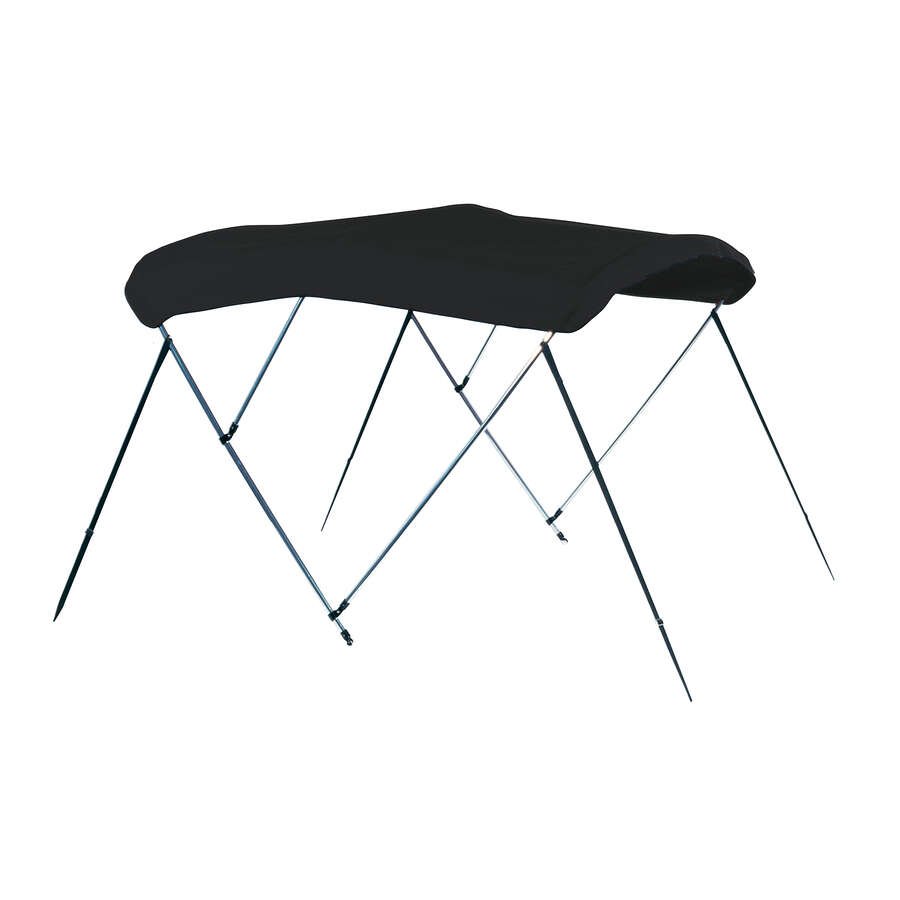

Carver 5475U 3-Bow Bimini Top 54"H x 72"L, Jet Black

If you run a center console, a bay boat, or a Whaler-style hull with a beam between 73 and 78 inches, the Carver 5475U 3-bow bimini top gives you shade that holds up out there. This is the jet black version, cut from genuine Sunbrella and Outdura premium acrylic and hung on an anodized aluminum round-tube frame. It's the top we reach for when an angler wants honest coverage over the console and the front of the cockpit without committing to a hardtop.

The 3-bow design is the sweet spot for boats this size. Three bows spread the load and keep the fabric drum-tight, so it won't flap itself to death at 30 knots the way a thin two-bow top can. The frame is round-tube aluminum, anodized to fight off salt, and the whole assembly folds down into the included storage boot when you're trailering or you just want the sun back on a cool morning.

Here are the numbers that matter. The top stands 54 inches high, so you get real standing clearance under it at the helm of most center consoles. It measures 72 inches fore to aft, which covers the console and usually the seat right behind it on a typical bay or fishing layout. And it mounts across a width of 73 to 78 inches, measured rail to rail at your mounting points. Measure that span before you buy. It's the single number that decides whether a bimini fits, and it trips up more people than anything else.

The fabric is where this top earns its keep. Sunbrella and Outdura acrylics are solution-dyed, so the jet black stays jet black instead of fading to a chalky gray after two seasons in the sun. It's water repellent, blocks UV, and resists mildew. That said, black fabric runs hotter and shows salt, so give it a fresh-water rinse after saltwater trips and hit the seams with a fabric protectant like 303 a couple times a season. Do that and this top will outlast the boat's upholstery.

Operation is manual, which on a bimini is a good thing. Fewer motors and switches means fewer things to fail on the water. Loosen the jaw slides, walk the frame up, tighten it down, and you're covered. On a bay boat it's easiest with two people the first few times, mostly so you don't torque a bow tube while you line up the mounting feet. Once it's dialed in, one person can raise and lower it in under a minute.

The storage boot matters more than people expect. When the top's down, the boot zips over the folded bows and fabric so it isn't whipping loose on the trailer or chafing your gelcoat on the run home. It also keeps the canopy clean and dry between trips, which cuts down on the mildew that black tops are prone to when they get stored damp. Fold it, zip it, forget about it.

A note on mounting, because it's where installs go wrong. The deck hardware needs something solid to bite into. On older Whalers and thin gunwale caps, back the mounting feet with an aluminum plate or a large fender washer so they don't pull out of the gelcoat under load. If your boat has rod holders along the 72-inch run, check their position before you set the rear bow, since the top's height can interfere with a rod tip at certain angles.

Who's this for? Anglers and cruisers on center console, bay, and Whaler-style boats in that 73 to 78 inch beam who want shade over the helm and are fine raising the top by hand. Who's it not for? If you need a top for a pontoon, a wider offshore center console, or you want full standing headroom across the whole cockpit, this isn't the one. Get the beam measurement right and match it to the width range, and the 5475U is a clean, durable answer.

Every Carver top is built in the USA, and this one ships with the frame, the jet black canopy, the mounting hardware, and the storage boot in the box. Rig it up and you've got dependable shade for years of seasons.
