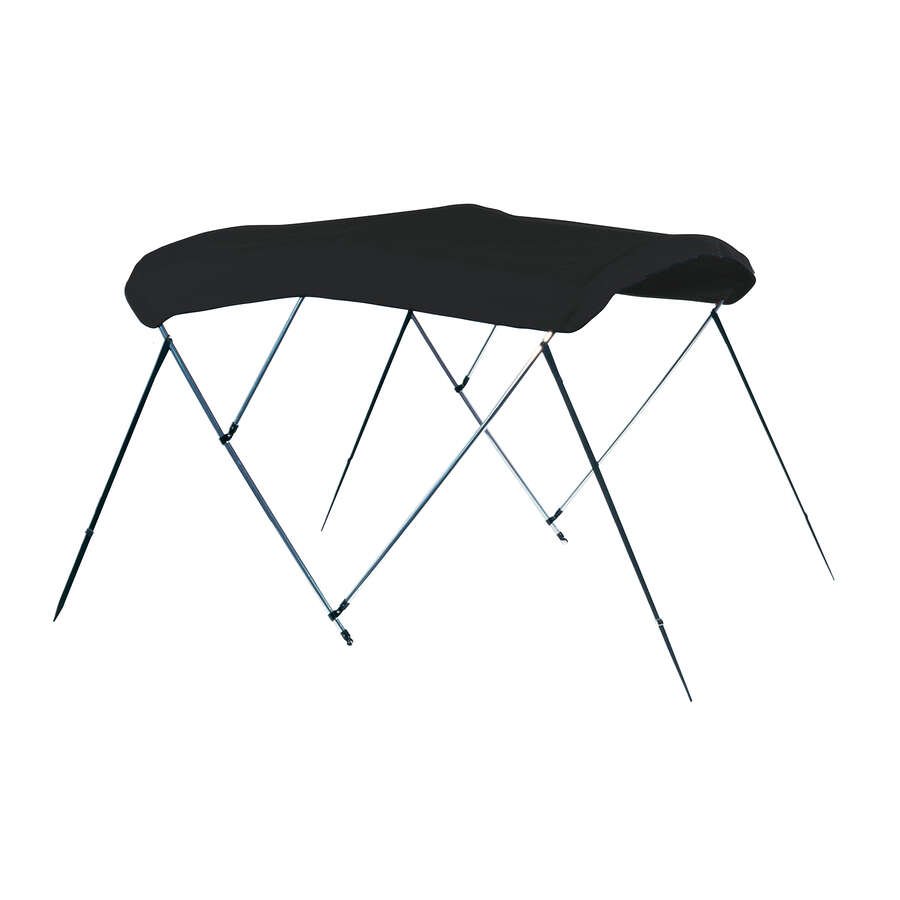

Carver 5469U 3-Bow Bimini Top, Jet Black Sunbrella, 67-72" Width

When you're running a center console across open bay water at midday, shade isn't a luxury, it's the difference between a full day of fishing and heading in early. The Carver 5469U 3-bow bimini top is built to give you that shade on boats measuring 67 to 72 inches across the mounting points. It's a manual top, so you raise and lower it by hand, and it packs down into an included storage boot when you want an open cockpit.

This top is sized for a specific group of boats. Carver designed it for center console bay-style boats, center console fishing boats, and Whaler-style hulls. The frame stands 54 inches tall at the peak and runs 72 inches front to back, which covers the helm area on most 18 to 23 foot rigs without crowding a leaning post or T-top. If your beam at the rail sits in that 67 to 72 inch window, this is the size you want. Measure your mounting width before you order, because a bimini that's an inch too wide or narrow won't tension correctly.

The top fabric is where Carver spends its money. This one is cut from Sunbrella and Outdura premium solution-dyed acrylic in Jet Black. That fabric is water repellent, blocks UV, and resists mildew, which matters when a top spends its life soaking up sun and the occasional rain squall. Solution-dyed acrylic holds its color instead of fading to a chalky gray after two summers, and it breathes better than a coated vinyl, so you don't get that greenhouse heat trapped underneath. Jet Black reads sharp against a white hull and hides the road grime that a lighter fabric shows after a season of trailering.

The frame is round-tube anodized aluminum in a 3-bow layout. Three bows give the top its shape and keep the fabric drum-tight so it doesn't flap or pool water. Anodizing puts a hard, corrosion-resistant skin on the aluminum, which is what you need in a saltwater environment. That said, anodized aluminum isn't bulletproof. The joints and hinge points are where corrosion starts, so a weekly freshwater rinse after saltwater use is the single best thing you can do to get years out of this frame. Boaters who skip the rinse tend to see the joints chalk up inside a couple of seasons.

Installation is straightforward but worth planning. The top mounts to deck hinges or rail-mount fittings, and on a Boston Whaler the gunwale often has a slight curve that leaves a mounting pad rocking. A pair of shims under the pad fixes that, and you'll want to pre-drill carefully so you don't crack the gelcoat. Once it's mounted, the manual 3-bow design raises and stows in seconds. Raising it single-handed in a stiff wind is the one tricky part, so a lot of owners add quick-release pins to make solo operation easier.

A few honest notes on fit and behavior. Sunbrella stretches a little in the sun, so expect an inch or two of sag over a 72-inch span in the first season. That's normal and it tensions back up. The 67 to 72 inch width covers narrow consoles cleanly, but on the wider end of a Whaler you may see small gaps at the sides, which is easy to close up with add-on side curtains if you want rain protection. And because the bows are round tube, the hinge pins can work loose after a lot of trailering, so it's worth checking them and stepping up to stainless locking pins if you tow a long way to the ramp.

What this top isn't: it's not a hardtop, and it's not a full enclosure. It's a shade top. It'll keep the sun off you and shed a passing shower, but it won't turn your open boat into a cabin. If you fish a center console in the 67 to 72 inch class and you want quality shade that folds away when you don't need it, the 5469U is exactly the tool. Carver builds these in the USA and has been fabricating boat covers and bimini tops for more than 30 years, so you're buying into a long track record, not a gamble.
