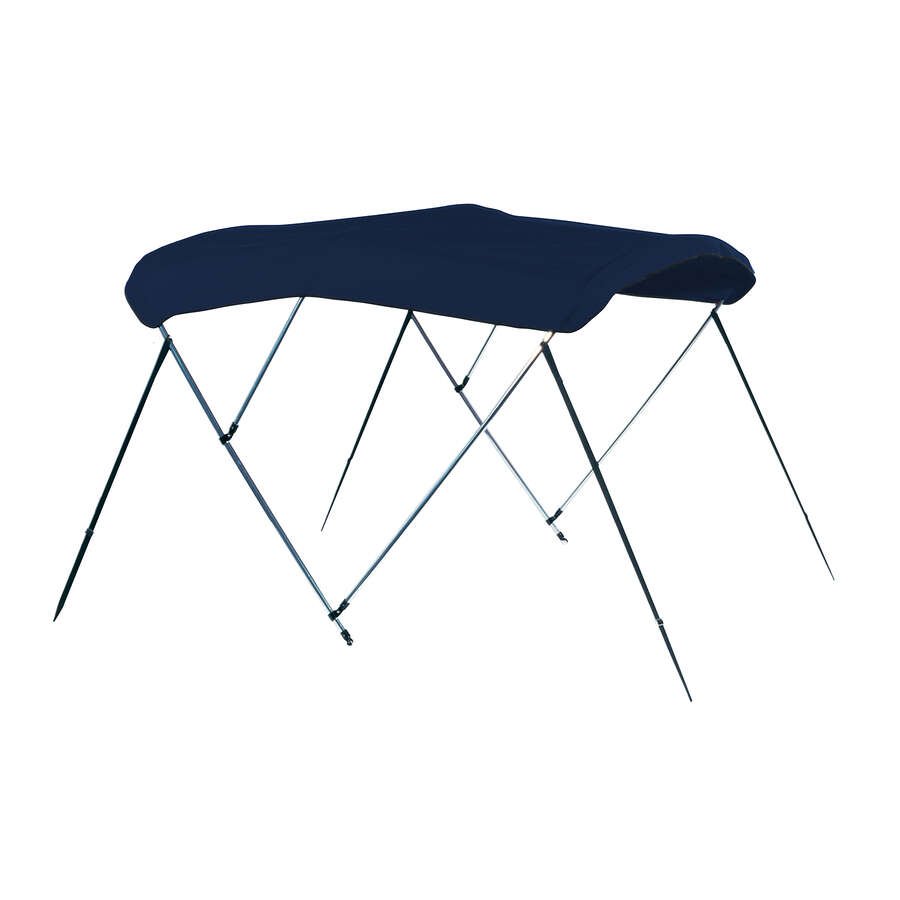

Carver 4675U 3 Bow Bimini Top, 73in-78in, Captains Navy

The Carver 4675U is a 3-bow bimini top for boaters who want real shade without a power system to maintain. It's built for day cruisers, cuddy cabins, bass boats, fish-and-ski boats, and V-hull fishing boats that run a side console and a walk-thru windshield, plus walk-around cuddy boats. If your boat measures somewhere between 73 and 78 inches across at the spot where the top mounts, this is the size you want.

The canopy is Captains Navy, cut from Sunbrella and Outdura premium acrylic. That's the good stuff. It sheds water, holds its color under hard UV, and resists the mildew that turns cheaper canvas into a science project after one wet season. Acrylic like this breathes, so you don't get that hot, plasticky feel underneath on a still August afternoon. It's the same class of fabric you'll find on high-end factory tops, and it's a big part of why a Carver top tends to outlast the boat's first owner.

Underneath the canvas is a 3-bow round-tube aluminum frame, anodized so it shrugs off corrosion. Three bows give you a wider shade footprint and a sturdier stretch than a 2-bow top, which matters when you're running with a crowd aboard. The top height is 46 inches measured from the deck to the peak, tall enough to sit under comfortably and low enough to fold down clear of most walk-thru windshields. If 46 inches is too tall for your rig, the frame can be cut down to as low as 36 inches, so you can tune the height to your windshield and your headroom.

Length front to back is 72 inches, a full six feet of coverage. That's enough to shade the helm and the seats right behind it on most side-console layouts. The 73 to 78 inch width figure is the mounting width, the distance between the two deck hinges, not the beam of the whole boat. Measure that gap before you order. Get a tape across your gunwales at the mounting point and you'll know in ten seconds whether this is your size.

Here's the honest part about fitting one of these. The deck hinges rarely land exactly on a boat's existing holes, so plan to drill fresh mounting points or use hinge adapters to get the geometry right. It's straightforward work, but it's real work, and it's worth doing carefully because the hinges carry all the load. On a windy day, grab a second set of hands. Raising and lowering a manual top solo is doable, but two people makes it painless and keeps the fabric from flapping while you set the pins.

If you run in salt, give the anodized frame a freshwater rinse regularly. Anodizing is a strong finish, but salt sitting in the jaw slides and hinge pins will pit aluminum over time. A quick hose-down after a saltwater run, plus a spare set of pins in the console, and this frame will stay tight for years. The moving parts, the jaw slides and hinge pins, are the wear items on any bimini, so keeping them clean is most of the battle.

The top ships as a complete kit with the frame, the canvas, and a color-matched storage boot. The boot zips over the folded top when you're not using it, keeping the canvas clean at the ramp and cutting flap on the highway. Operation is fully manual, so there's no wiring, no motor, and no fuse to blow. You pull it up, set the pins, and you're in the shade.

Who's this for? Anybody running a mid-size side-console boat in that 73 to 78 inch mounting range who wants factory-grade canvas and a frame that'll last. Who's it not for? If your mounting width falls outside that band, or you want a fully enclosed cabin, this isn't the right top. Measure first, and if the number lands in range, you're looking at one of the better values in marine canvas.
