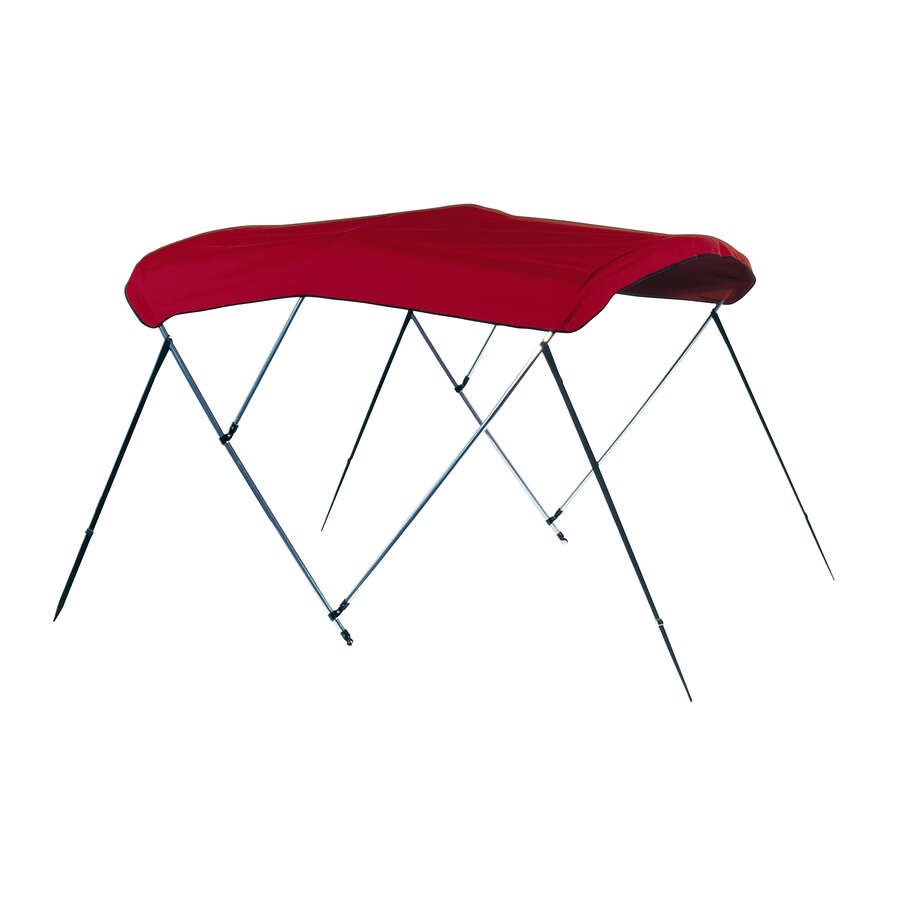

Carver 4669U 3-Bow Bimini Top with Boot, Jockey Red

The Carver 4669U is a three-bow bimini top for boaters who want real shade over the cockpit without adding a hardtop. It's built for day cruisers, cuddy cabins, bass boats, fish and ski boats, and V-hull fishing boats that run a side console with a walk-thru windshield. If your boat falls in that group and measures between 67 and 72 inches across the beam where the top mounts, this is the size that fits.

The frame is round-tube anodized aluminum in a three-bow layout. Three bows spread the canvas over a longer run than a two-bow top, so the shade reaches the helm and carries back across the driver and passenger seats through the middle of the day. Standing height is 46 inches over a 72-inch length, which gives you headroom at the console while keeping the profile low enough to clear a garage door or trailer under most carports. If 46 inches is taller than you need, the frame can be cut down to as low as 36 inches to match a lower windshield or a specific hardware line.

Canvas is Jockey Red Sunbrella, the solution-dyed acrylic that Carver builds its premium tops from. The color runs all the way through each fiber instead of sitting on the surface, so it holds up to season after season of direct sun without going chalky or faded. The weave is water repellent, blocks UV, and resists mildew, and because it breathes, hot air moves out from under the top instead of pooling against your head. Outdura acrylic is used on the same premium tier when Sunbrella isn't specified, and both carry the same weather resistance.

A color-matched storage boot comes in the box. When you drop the top to run wide open or load the boat on the trailer, you fold the bows down, wrap the canvas, and snap the boot over it to keep the fabric clean and out of the wind. That's the piece a lot of cheaper tops leave out, and it's the difference between a top that lasts and one that frays at the folds.

Operation is fully manual. You raise it and lower it by hand, and there are no motors, switches, or wiring to corrode or fail down the road. One person can put it up, though the first few times it helps to have a second set of hands to tension the canvas evenly across the bows. Once it's dialed in, it goes up and down in seconds.

Getting the fit right starts with a tape measure. Carver sizes these tops by the width they span, so measure across your boat at the point where the mounting hinges will sit, gunwale to gunwale. The 4669U covers 67 to 72 inches in that dimension, which is the common beam range for 18 to 22-foot cuddy cabins and V-hull fishing boats. Measure before you order rather than guessing from the boat's overall length, because two boats of the same length can carry very different beams. The 72-inch fore-and-aft length is fixed and sets how much of the cockpit falls under cover.

This is a canvas-and-frame shade top, not an enclosure. It won't wall off the cockpit from rain blowing in sideways, and it isn't a substitute for a full camper canvas or a hardtop with side curtains. What it does is give you a large, well-built patch of shade that mounts cleanly to the boats Carver lists in the fitment range. If you run in saltwater, rinse the frame and hardware with fresh water when you're done for the day so the anodized aluminum stays clean at the joints.

Who's this for? Anglers who spend long days on the water and want to get out of the sun between spots, families day cruising who need shade for the kids, and anyone whose bass or fish and ski boat came without a top from the factory. The three-bow build and the 46-inch height suit a boat with a side console and a walk-thru windshield, where the top sits behind the glass and shades the seating. Carver has been building covers and tops in the USA for more than 30 years, and the 4669U reflects that: quality materials, a competitive price, and a top that's meant to earn its keep on the water.
