Carver 3-Bow Bimini Top, 54in H, 73-78in Beam, Cadet Gray

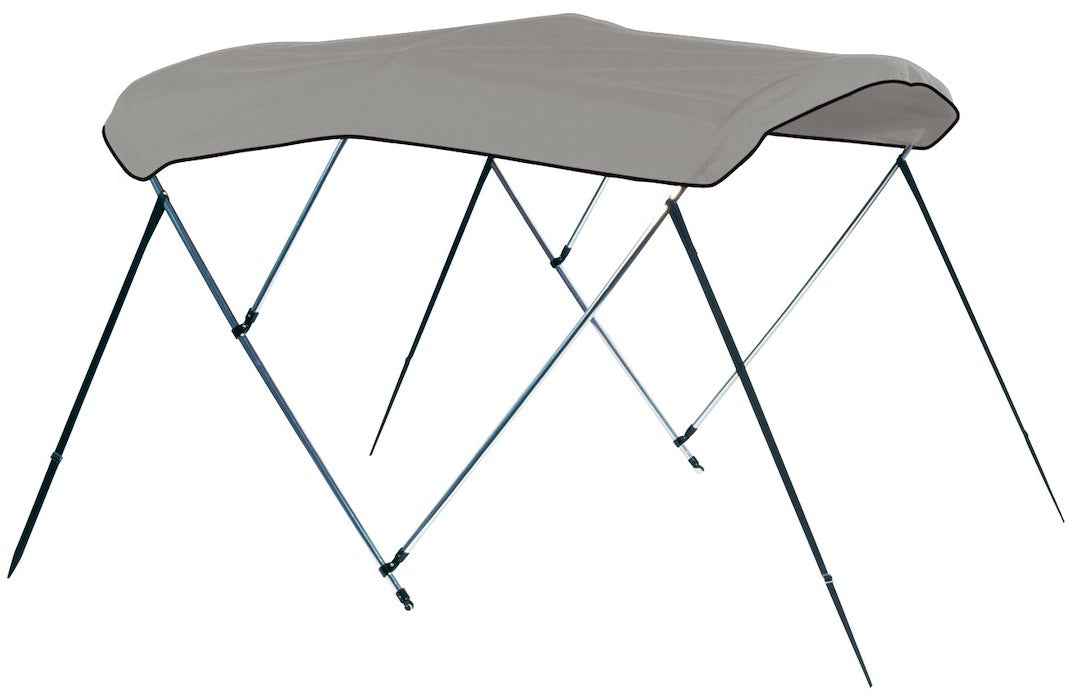

The Carver 3-bow bimini top is built for center console bay boats, center console fishing boats, and Whaler-style hulls with a beam between 73 and 78 inches. It's the classic three-bow shape most of these boats were designed around, so it drops shade right where you need it, over the helm and the seats just behind it, without eating up your casting deck or your walk-around space.

The frame is round-tube anodized aluminum. That matters out here. Anodized aluminum shrugs off salt spray and won't rust or streak the way plated steel does after a couple of seasons. The tubes are light enough to raise by hand and stiff enough to hold their shape at speed. At 54 inches of top height above the deck hinges, you get standing or near-standing headroom at the console on a typical bay boat, and the 72 inch fore-to-aft length throws shade across a good stretch of the cockpit.

This is a manual top, and that's a feature, not a compromise. You raise it and lower it by hand and lock it in place with the support straps. There's no motor, no switch, no wiring run down the gunwale to corrode and fail on you three summers from now. Once it's rigged, most folks can put it up or fold it down in under a minute. When it's down, the included Cadet Gray storage boot zips over the folded bundle to protect the canvas and frame underway and at the dock.

The canvas is Sunbrella / Outdura premium acrylic in Cadet Gray. It's solution-dyed, so the color goes all the way through the fiber instead of sitting on the surface, which is why it holds up season after season in hard sun. The fabric is water repellent, UV resistant, and mildew resistant, the same class of marine canvas you'd want on a quality boat cover. Cadet Gray is a medium neutral that hides salt spotting and doesn't show dirt like the lighter shades do, and it pairs with just about any hull and upholstery color.

Fitment is the whole game with a bimini, so measure before you order. The 73 to 78 inch number is your beam width at the mounting rails, gunwale to gunwale, at the exact spot where you'll set the deck hinges. Don't go by the boat's advertised beam, measure the boat. If you land between two width ranges, size to your real measurement. A few install notes from folks who've rigged these: add backing plates or at least stainless fender washers behind the strap eyes and deck hinges, because a raised top catches a lot of wind and you don't want that load pulling on bare gelcoat. On a new canvas top, the bow joints can weep a little the first season until everything settles, so a bead of butyl or seam sealer at the bow fittings during install saves you a headache later. And wrap the anodized tubes with a rag or painter's tape at any contact point while you're fitting the frame, the finish scratches if it rubs the console.

If you run hard, tie it off right. For short hops the three-bow frame is fine up, but for sustained runs above 25 mph, especially on the wider 78 inch beams, add aft support poles and cinch the straps tight so the top doesn't flutter or sag in the center. Rigged that way, this is a top that'll ride out a long day on the water and pack down clean when you're done. It's honest gear from a company that's been building covers and tops in the USA for over 30 years, and it's a straightforward bolt-on upgrade for any open center console that needs to get out of the sun.
