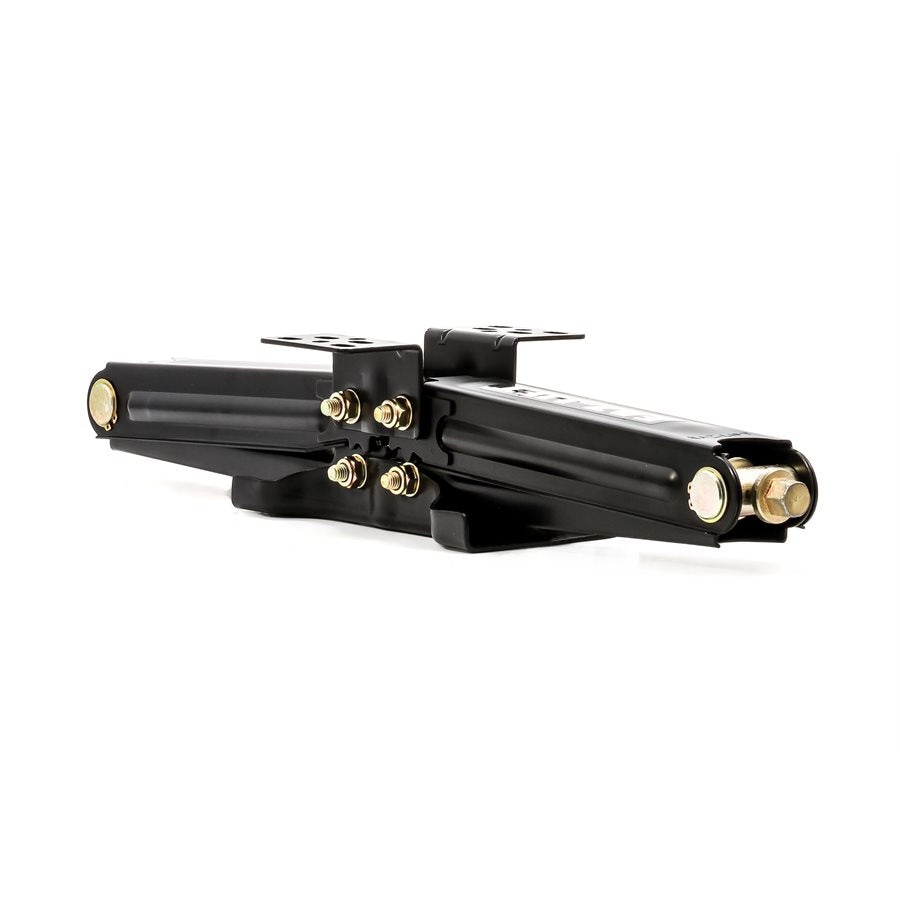

Camco EAZ-LIFT 48810 24-Inch RV Scissor Jack, 5000 lb
Camco EAZ-LIFT 48810 24-Inch RV Scissor Jack, 5000 lb — Product description
The Camco EAZ-LIFT 48810 is a manual, crank-driven scissor jack rated at 5000 pounds. It levels and stabilizes a motorhome, travel trailer, or camper once you're parked, with 24 inches of reach and nothing electrical to fail. Sold as a single jack, so you add exactly the corners your rig needs.
If you've ever tried to eat dinner in a camper that rocks every time someone walks to the back, you already know why a good jack matters. The Camco EAZ-LIFT 24-inch scissor jack is built to take that bounce out. It's a manual, crank-driven jack rated at 5000 pounds, and it's designed to level and stabilize a motorhome, travel trailer, or camper once you're parked and set up for the night.
The EAZ-LIFT name has been part of Camco's lineup for a long time, and this is the workhorse version of the scissor jack. There's nothing to wire in and nothing to plumb. You position it under a solid point on the frame, turn the drive screw with a crank or a socket on a drill, and the scissor arms push the pad down to the ground and lift that corner. Back it off the same way when you're ready to roll. Simple, mechanical, and there's not much that can go wrong with it.
Most people speed the job up with a cordless drill and a scissor jack socket. Drop the socket on the drive nut, run it down until the pad seats and the corner starts to rise, then finish the last bit by hand so you can feel the load come up. Doing it by hand the whole way works fine too, it just takes a few more turns. Either way you stay in control of how much each corner lifts, which is exactly what you want when you're chasing level.
That 24-inch number is the extended height, so this jack has plenty of reach for rigs that sit higher off the pavement. If your trailer frame rides tall, or you're parked on a spot that drops away on one side, the extra travel means the pad still makes solid contact instead of dangling in the air. And because it's a scissor design, it folds down low and tucks up under the frame out of the way when you're driving.
The 5000-pound capacity is the part that sets this one apart from the lightweight stabilizer-only jacks. It's got enough muscle to actually lift and level a corner, not just steady it. That said, be smart about it. This is a single jack, so most folks run one at each corner, or pair a couple at the rear with what's already on the tongue. Buy the number your setup needs and spread the load evenly. Cranking one corner sky-high while the others sit low puts a twist into the frame, and that's how people end up with bent members. Level in small, even steps across all your jacks.
Ground matters too. On concrete or hard-packed gravel you can set the pad right down and go. On grass, dirt, or soft asphalt on a hot day, put a jack pad or a solid block under the foot first. It spreads the weight so the jack doesn't sink and pull your rig out of level overnight. A jack that's slowly settling into a campground lawn is the number one reason a perfectly leveled trailer isn't level by morning.
Who's this for? Weekend campers, full-timers, and anybody who wants a mechanical, no-batteries-required way to steady their rig. It works the same at a state park with no hookups as it does at a full-service resort. Because it's manual, there's no controller to short out and no motor to burn up. If you can turn a crank or hold a drill, you can run it.
What it's not: it's not a tire-changing floor jack, and it's not a permanent electric leveling system. It's a parked-and-set-up leveling and stabilizing jack, and that's exactly what it's good at. Use it within its rating, block it properly, and it'll do that job season after season.
Key Features
- 5000 lb weight capacity gives you enough muscle to actually lift and level a corner, not just steady it
- Extends up to 24 inches so the pad reaches the ground even on rigs that sit high or spots that drop away
- Manual scissor design means no wiring, no hydraulics, and nothing electrical to short out or burn up
- Turns with a hand crank or a socket on a cordless drill, so you control exactly how much each corner rises
- Folds down to a low scissor profile that tucks up under the frame out of the way while you travel
- Sold as a single jack, so you add exactly the number of corners your motorhome, trailer, or camper needs
- Backed by the EAZ-LIFT name from Camco, an RV parts maker campers have leaned on since 1966
Why Buy from NVN Marine
- Authorized Camco reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Camco EAZ-LIFT 24-Inch Manual RV Scissor Jack |
|---|---|
| Brand | Camco |
| Manufacturer Part Number | 48810 |
| UPC | 014717488105 |
| Product Series | EAZ-LIFT |
| Product Type | Scissor Jack |
| Operation | Manual |
| Extended Height | 24 in |
| Weight Capacity | 5000 lb |
| Sold As | Single |
| Application | Motorhome, Travel Trailer, Camper |
| Function | Leveling and stabilizing while parked |
Frequently asked questions
How much weight can the Camco EAZ-LIFT 48810 hold?
It's rated at 5000 pounds per jack. That's enough to lift and level a corner of most travel trailers, campers, and motorhomes, not just steady it.
How high does it extend?
Up to 24 inches at full extension, so it has plenty of reach for rigs that sit higher off the ground or spots that slope away on one side.
Is this sold as one jack or a set?
It's sold as a single jack. Most people run one at each corner they want to support, so buy the number your setup needs.
Is it manual or electric?
Manual. You raise and lower it by turning the drive screw, so there's no controller or motor to fail.
Do I need a crank or can I use a drill?
You can turn it by hand with a crank or run it with a socket on a cordless drill. A drill speeds up the job, then finish the last bit by hand so you can feel the load seat.
Can I use it to change a tire?
No. It's built to level and stabilize your rig while it's parked and set up, not as a floor jack for tire changes. Use a proper floor jack and stands for that.
Will it fit my travel trailer, camper, or motorhome?
Yes. It's designed for motorhomes, travel trailers, and campers. Position it under a solid frame point that can carry the load.
What should I put under it on soft ground?
On grass, dirt, or soft asphalt, set a jack pad or a solid block under the foot first. It spreads the weight so the jack doesn't sink and pull your rig out of level overnight.
How many should I buy?
Since it's a single jack, count the corners you want to support and order that many. Level in small, even steps across all of them to avoid twisting the frame.
Does it work without hookups or power?
It does. Because it's fully manual, it works the same at a boondocking site with no power as it does at a full-service campground.
