Camco Brass Blow Out Plug 36153 | RV Winterizing
Camco Brass Blow Out Plug 36153 | RV Winterizing — Product description

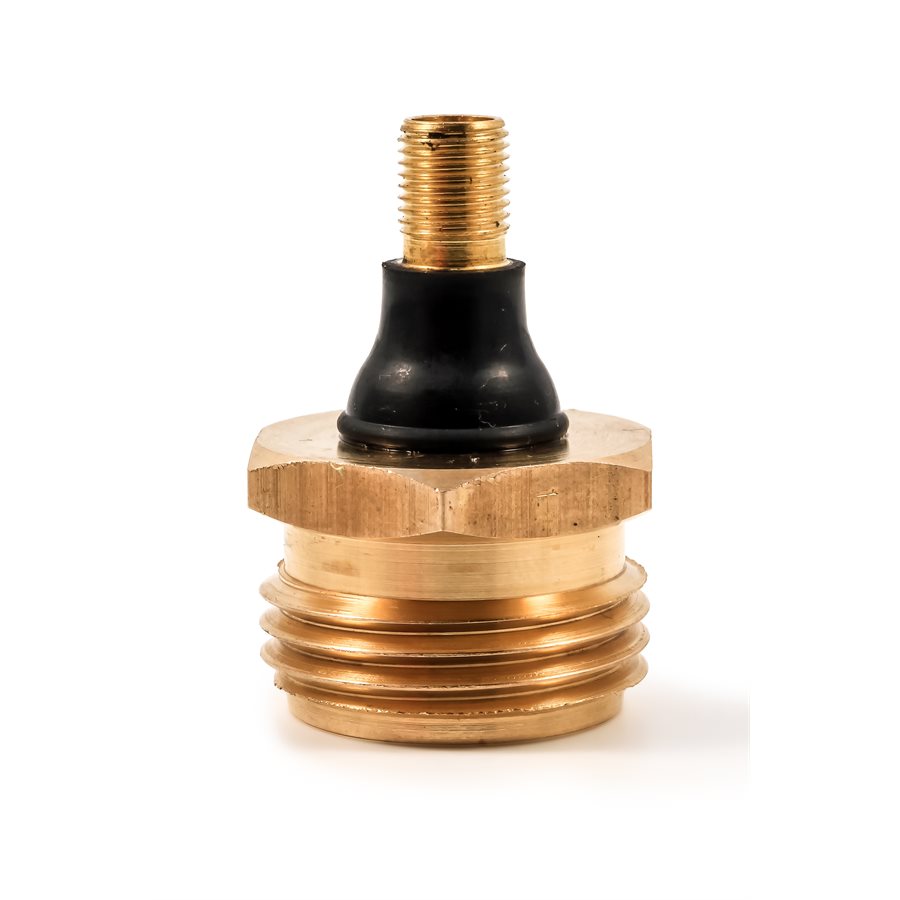

The Camco Brass Blow Out Plug is the easy way to winterize your RV. Screw it into the city water inlet, hook an air compressor to the Schrader valve, and push every drop of water out of your plumbing before it freezes. Solid brass means it holds up season after season, so one plug protects your pipes for years.
When the nights start dipping below freezing, the water sitting in your RV's plumbing becomes the enemy. It expands as it freezes, and that pressure is what cracks fittings, splits lines, and turns a quiet off-season into a spring full of expensive repairs. The Camco Brass Blow Out Plug is the simple little tool that keeps that from happening. It screws into your rig's city water inlet, gives you a Schrader valve to hook an air compressor to, and lets you push every last bit of water out of the system before it can do any damage.
Using it is about as straightforward as RV gear gets. Screw the plug into the city water inlet on the side of your trailer or motorhome. Open every faucet, both hot and cold, and pop open the low point drains. Then connect your air compressor to the Schrader valve and let the compressed air chase the water out through the open taps. You'll hear it sputter and spit for a minute, then run dry. That's the whole job. Work through the fixtures one at a time so you know each line is clear.
One thing worth doing before you start. Bypass and drain your water heater first, and empty the fresh water tank. The blow out plug clears the pressurized lines running to your faucets, shower, and toilet, but it isn't meant to empty a six or ten gallon water heater tank. Most rigs have a bypass valve behind an access panel for exactly this. Handle the tank and heater, then let the plug finish the job on the lines.
The reason we like the brass version over the plastic ones is simple. Brass threads don't strip out or crack the way plastic does after a couple of seasons, and the Schrader valve is machined right into a solid body. Thread it in, use it, unthread it, and toss it back in your winterizing bin. It'll be ready to go again next fall, and the fall after that. For a tool you only reach for once or twice a year, buying one that lasts a decade just makes sense.
Blowing out the lines and running RV antifreeze aren't an either-or thing. A lot of folks do both, and they work better together. Clearing the standing water first means the antifreeze you pump through afterward isn't getting diluted by whatever was left sitting in the lines. If you're in a climate where winter really means winter, that belt-and-suspenders approach is cheap insurance against a cracked pipe you won't find until you're de-winterizing in the spring.
It fits the standard city water inlet you'll find on travel trailers, fifth wheels, and motorhomes, and it works with just about any air compressor, from a little pancake unit to a shop compressor sitting in the garage. One quick note on pressure. You don't need much. Keep your compressor dialed down and follow the blow-out pressure your RV maker recommends, because too much air can stress the lines you're trying to protect. Low and steady clears everything just fine. And to be clear on what's in the box, you're getting the brass plug itself. An air compressor isn't included, but you almost certainly already own one or can borrow one for an afternoon.
If you store your RV anywhere the temperature drops, this belongs in your winterizing kit. It's small, it's cheap, and it does one job really well. Skip it, and you're gambling your whole plumbing system on a mild winter. Ten minutes of work in the fall beats a spring afternoon crawling under the rig chasing a split line. We'd rather spend a few bucks and sleep easy.
Key Features
- Solid brass body and threads for season-after-season reuse, no cracking or stripping like plastic
- Built-in Schrader valve connects to just about any air compressor without an adapter
- Screws directly into the standard RV city water inlet on trailers, fifth wheels, and motorhomes
- Pushes compressed air through the plumbing to clear every drop of standing water
- Protects pipes, fittings, and fixtures from freeze damage during winter storage
- Works right alongside RV antifreeze for a complete winterizing routine
- Compact enough to stow in your winterizing kit and forget until next fall
Why Buy from NVN Marine
- Authorized Camco reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Camco Brass Blow Out Plug |
|---|---|
| Brand | Camco |
| Manufacturer | Camco Manufacturing |
| Manufacturer Part Number | 36153 |
| UPC | 014717361538 |
| Material | Brass |
| Valve Type | Schrader valve |
| Connects To | RV city water inlet |
| Air Source | Works with most air compressors |
| Primary Use | RV and travel trailer winterization |
| Product Type | Blow out plug |
| Reusable | Season after season |
Frequently asked questions
What does the Camco Brass Blow Out Plug do?
It winterizes your RV's plumbing. You screw it into the city water inlet, connect an air compressor, and the compressed air pushes any standing water out through your open faucets and drains. Clearing that water keeps it from freezing and cracking your pipes over the winter.
How do I use it?
Screw the plug into your city water inlet, open all your hot and cold faucets along with the low point drains, then connect your air compressor to the Schrader valve. Let the air run until each line spits and then runs dry. Work one fixture at a time so you know everything's clear.
Will it fit my RV?
It threads into the standard city water inlet found on travel trailers, fifth wheels, and motorhomes, so it fits most rigs. If your inlet uses the common threaded connection, you're good to go.
What air pressure should I use?
Keep it low. You don't need much air to clear the lines, and too much pressure can stress the very plumbing you're protecting. Follow the blow-out pressure your RV manufacturer recommends and dial your compressor down to match.
Do I still need RV antifreeze if I blow out the lines?
Many owners do both, and it's a smart combination. Blowing out the water first means the antifreeze you pump through afterward doesn't get diluted, so it works the way it should. In a hard-freeze climate, doing both is cheap insurance.
Does it come with an air compressor?
No. You're getting the brass plug on its own. Just about any air compressor works, from a small pancake unit to a shop compressor, so most folks use one they already have.
Why choose brass over a plastic blow out plug?
Brass threads hold up where plastic tends to strip or crack after a season or two. The Schrader valve is machined into a solid brass body, so this is a tool you can reuse every fall for years.
Is the Schrader valve the same kind that's on my tires?
Yes, it's the same style of valve you'll find on a car or bike tire. That's why a standard air compressor chuck connects to it without any special adapter.
Should I do anything before I blow out the lines?
Drain and bypass your water heater and empty the fresh water tank first. The plug clears the pressurized lines to your faucets, shower, and toilet, but it isn't meant to empty a water heater tank. Handle those, then let the plug finish the lines.
