Camco 54605 1156 LED Bulb | 285 Lumen 12V Bright White
Camco 54605 1156 LED Bulb | 285 Lumen 12V Bright White — Product description

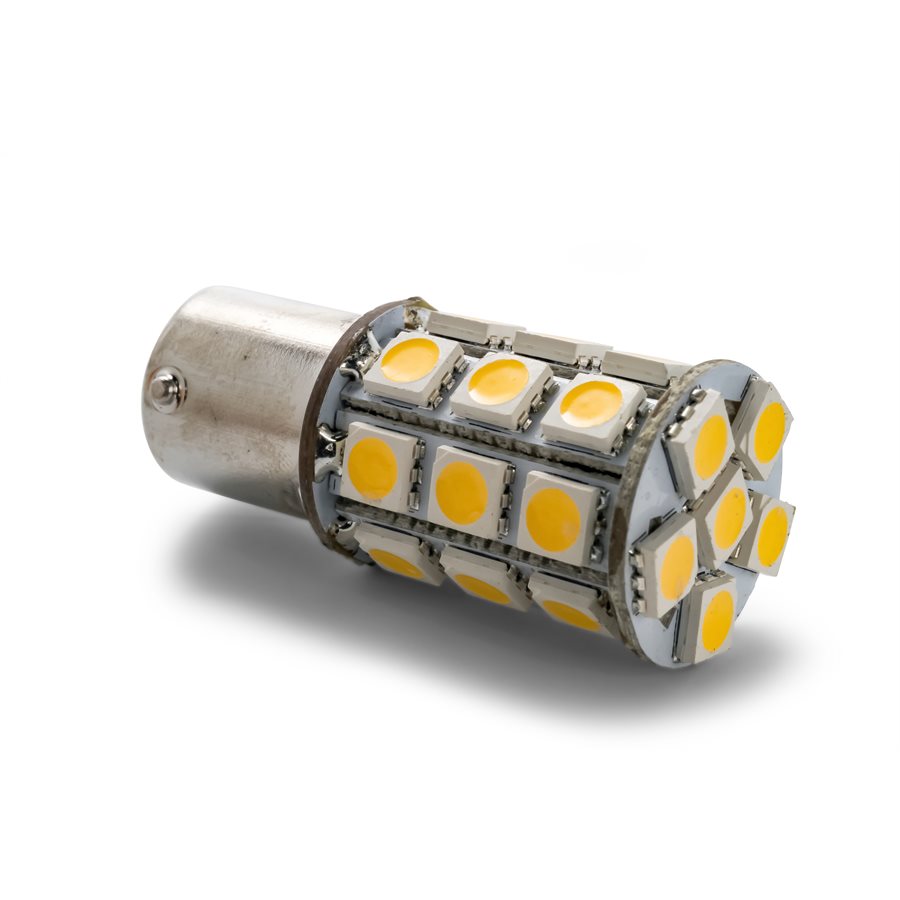

The Camco 54605 is an easy LED upgrade for any fixture still running an old 1156 incandescent. Twenty-seven LEDs put out 285 lumens of bright white light on 12 volts, and the single contact BA15S bayonet base drops right into your existing socket. Brighter light, far less battery drain, and it runs cool. A no drama swap.
The Camco 54605 is a simple LED upgrade for one of the most common bulbs on any boat, RV, or trailer. If you've got a fixture running an old 1156 incandescent, this drops right in and gives you cleaner, brighter light that pulls a lot less off your battery. It's a single contact bayonet base bulb, packed with 27 individual LEDs, and it puts out a measured 285 lumens of bright white light on 12 volts.
Here's the thing about the 1156 style bulb. It shows up everywhere. Interior dome lights, cargo and storage compartment lights, trailer clearance and marker lights, cabin reading lamps, porch lights on a fifth wheel. That single contact bayonet base, the one the industry calls BA15S, is one of the most widely used bulb bases out there. So one bulb ends up covering a lot of fixtures. This Camco replaces the 1156, 1141, 1073, and 93 style bulbs, which means if you pull an old bulb and see any of those numbers stamped on it, this is your swap.
Why bother going LED? A couple of real reasons. First, current draw. Incandescent bulbs burn a surprising amount of amps just to make heat, and on a boat or RV where you're running off a house battery, that adds up fast over an evening at anchor or a weekend off grid. LEDs sip power by comparison, so you get more hours of light out of the same battery. Second, heat. An old 1156 gets hot enough to discolor a lens or a fixture over time. This one runs cool to the touch. And third, life span. LEDs just last longer, so you're not digging around behind a headliner every season to swap a dead bulb.
Installation couldn't be much easier. Kill the power at the fixture or the panel, pull the old bulb out with a gentle push and a quarter turn, line up the two pins on the base, push the Camco in and give it the same quarter turn to lock. That's it. Because it's a bayonet base and not a wedge or a screw base, it seats positively and won't rattle loose on a rough road or a choppy run. One thing worth knowing: the 1156 is a single contact bulb. It isn't the same as an 1157, which uses a dual contact base for two brightness levels, like a combined running and brake light. If your socket has two contacts in the bottom, this single contact bulb isn't the right part.
The light itself is bright white, not the warm yellow glow of the incandescent it replaces. For a galley, a workspace, a cargo area, or a reading light, that whiter light reads as cleaner and makes it easier to actually see what you're doing. If you're relighting a whole cabin, keep in mind you'll get that crisp white tone across every fixture you convert, which looks sharp when it's consistent.
This is sold as a single bulb, so count up your fixtures before you order and grab enough to do the job in one pass. The packaging is printed in both English and French, handy if you're crossing into Canada or reselling. It's a Camco part, a company that's been building RV and marine gear since 1966, so it's a name you'll recognize from the parts aisle at just about any dealer.
Who's this for? Anyone running tired incandescent 1156 bulbs who wants brighter light and less drain on the battery bank. Weekend campers, full time RVers, boat owners fighting a slow house battery, trailer owners who want their interior and marker lights to just work. It's an inexpensive, no drama upgrade that you'll notice every night you're out. If you're not sure whether your fixture takes an 1156, pull the old bulb and check the base. Single contact bayonet, and you're good to go.
Key Features
- 27 individual LEDs deliver a measured 285 lumens of bright white light
- 12 volt DC operation drops straight into RV, marine, and trailer electrical systems
- Single contact BA15S bayonet base replaces 1156, 1141, 1073, and 93 style bulbs
- LED design draws far less current than the incandescent bulb it replaces, easing the load on your house battery
- Runs cool to the touch, so it won't discolor lenses or fixtures over time
- Bright white output gives cleaner, whiter light than a yellow incandescent for galleys, cargo areas, and reading lamps
- Bayonet base seats positively and resists rattling loose on rough roads or choppy water
- English and French language packaging, ready for use in the US and Canada
Why Buy from NVN Marine
- Authorized Camco reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Camco 54605 LED 1156 Replacement Bulb, 285 Lumen Bright White |
|---|---|
| Brand | Camco |
| Manufacturer Part Number | 54605 |
| UPC | 014717546058 |
| Bulb Type | LED |
| Base | BA15S (Single Contact Bayonet) |
| Replaces | 1156, 1141, 1073, 93 Style Bulbs |
| LED Count | 27 Diodes |
| Light Output | 285 Lumens |
| Voltage | 12 Volt |
| Light Color | Bright White |
| Quantity | 1 Bulb (Single) |
| Packaging Language | English / French |
Frequently asked questions
What bulbs does the Camco 54605 replace?
It replaces 1156, 1141, 1073, and 93 style bulbs. All four share the same single contact BA15S bayonet base, so if the old bulb you pulled is stamped with any of those numbers, this is a direct swap.
Are 1141 and 1156 bulbs interchangeable?
For this fixture, yes. The 1141 and 1156 both use the single contact BA15S bayonet base, and this Camco bulb is rated to replace both. Just confirm your socket is a single contact type before you swap.
Is the 1073 bulb the same as the 1156?
They share the same BA15S base and this bulb replaces both, so in most fixtures they interchange. The 1073 and 1156 are both single contact bayonet bulbs commonly used in RV and trailer interior lighting.
Is BA15S the same as 1156?
BA15S is the name of the base, not the bulb. The 1156 uses a BA15S base, which is a single contact bayonet with two pins on the side. So an 1156 socket and a BA15S base are the same fitting.
Can I use this instead of an 1157?
No. This is a single contact 1156 style bulb. An 1157 uses a dual contact base for two brightness levels, like a combined tail and brake light. If your socket has two contacts in the bottom, you need a dual contact bulb instead.
How bright is it, and what color is the light?
It puts out a measured 285 lumens of bright white light from 27 individual LEDs. That's a cleaner, whiter light than the yellow glow of the incandescent bulb it replaces.
Will it work on my 12 volt RV or boat system?
Yes. It's a 12 volt DC bulb, which matches standard RV, marine, and trailer electrical systems. Wire it into any 1156 fixture running off your 12 volt house system.
How many bulbs come in the package?
One. This is sold as a single bulb, so count your fixtures and order enough to finish the job in one pass.
Is it hard to install?
Not at all. Cut the power, push and turn the old bulb a quarter turn to remove it, then line up the pins and push the new one in with the same quarter turn to lock. The bayonet base seats positively and won't rattle loose.
