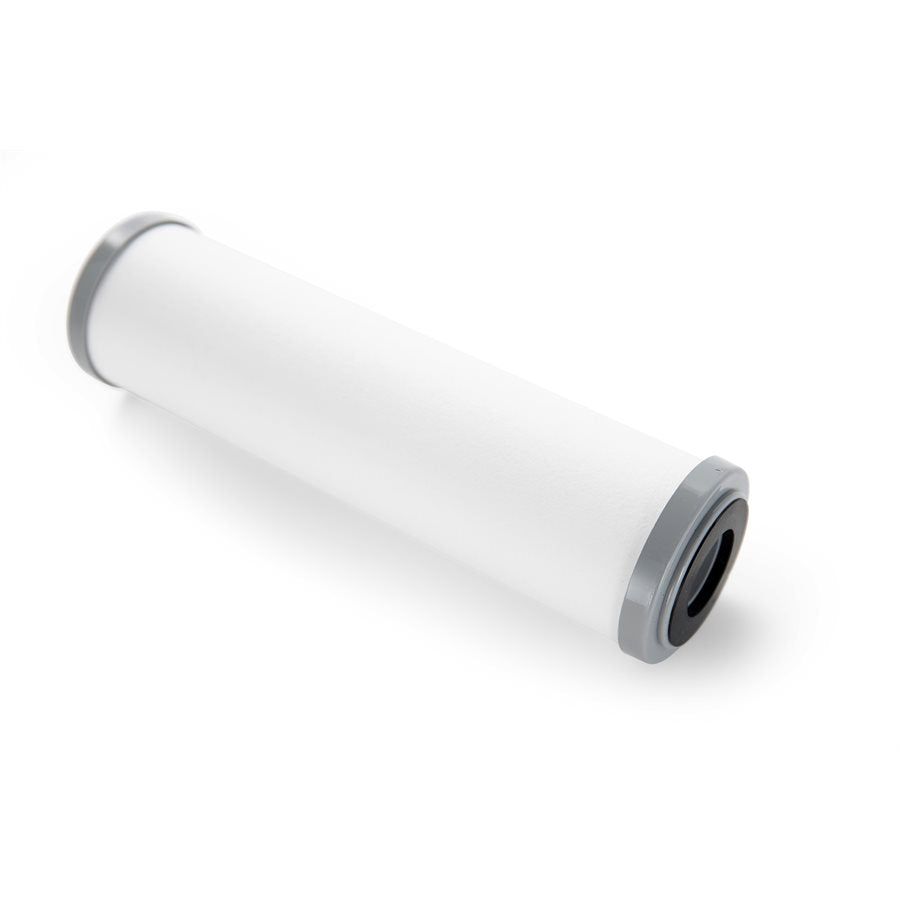

Camco 40637 EVO X2 5-Micron Sediment Filter Cartridge

The Camco 40637 is the 5-micron replacement sediment cartridge for the EVO X2 Dual Stage Premium Water Filter Kit. It's the first stage of a two-stage setup, the one that catches the grit before it ever reaches the carbon block. And it's a wear part. Once it's loaded up with sand, rust flecks, and scale, you swap it out and your water runs clear again.

Here's how the dual-stage layout works. Raw water comes into the housing and hits this spun polypropylene sediment filter first. The 5-micron rating means it traps particles down to 5 microns, so you're pulling out the sand, silt, rust, and sediment that make water look cloudy and taste gritty. That protects the second-stage carbon block downstream, which handles the finer taste-and-odor work. Skip the sediment stage and that carbon block clogs early. Run them together and each one lasts the way it's supposed to.

The cartridge itself is standard 2-1/2 inch by 10 inch, which is the most common canister size out there. So it drops into the EVO X2 housing, and it fits most other 2-1/2 inch by 10 inch canister-style housings too. If you've built your own dockside or RV fresh-water setup around a 10-inch sump, this cartridge will very likely work in it. It reduces sediment, taste, odor, and chlorine, which covers the everyday complaints boaters and RVers have about dock water and campground spigots.

We like spun polypropylene for a sediment pre-filter because it's a true depth filter. The fibers are denser toward the core, so the outer layer grabs the big stuff and the inner layers catch the fine particles. That gives you more dirt-holding capacity than a thin surface screen, and it means the cartridge doesn't blind over the moment it sees a little sediment. For anyone filling tanks from questionable sources, that extra capacity is the difference between a filter that lasts a season and one you're changing every few weeks.

Installation is about as simple as it gets. Shut off your water, relieve the pressure, unthread the housing sump, pull the spent cartridge, drop this one in, and thread it back up. Give it a minute to fill and check for weeps at the O-ring. That's it. There's no priming, no special orientation beyond seating it in the housing, and no tools beyond the housing wrench most kits ship with.

When should you change it? It depends entirely on your water. If you're on clean municipal water most of the time, you'll get months out of it. If you're filling from a well, a lake, or a campground spigot that runs rusty, you'll change it more often. The honest tell is flow. When your faucets and shower start dropping off in pressure, the sediment filter is loaded and it's time. A lot of full-timers just keep a spare or two on the shelf and swap on a schedule so they never think about it.

One thing to be clear about. This is the sediment stage, not the carbon stage. On its own it's a mechanical filter, so it handles particles and cloudiness, and it does knock down taste, odor, and chlorine. But in the EVO X2 system it's meant to run ahead of the carbon block, and that pairing is where you get the best-tasting water. This particular cartridge ships as a single, without the flexible hose protector, so if you need the inline hose protector or a multi-pack, grab those separately.

Bottom line, if you run an EVO X2 or any standard 10-inch canister housing on your boat or RV, this is the correct sediment refill. Keep clean water coming out of the tap and protect the rest of your filtration doing it.
