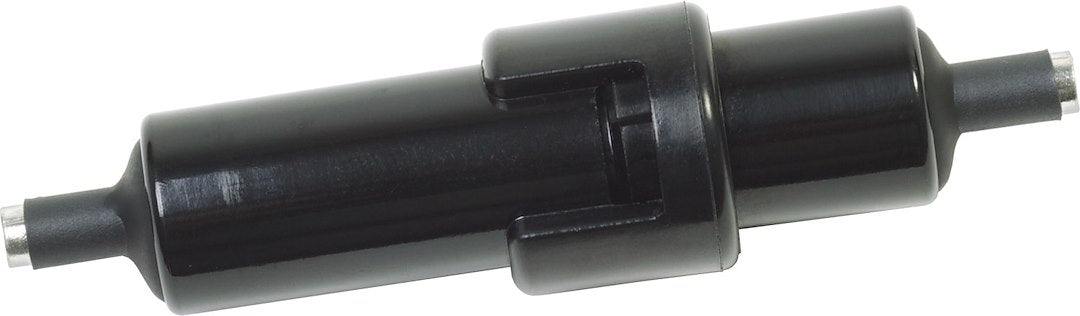

Blue Sea Systems 5062-BSS Waterproof In-Line Fuse Holder

Every accessory you add to a boat needs its own protection, and that's exactly what this in-line holder gives you. The 5062-BSS from Blue Sea Systems splices straight into the positive lead of a small DC circuit and holds a single AGC or MDL glass fuse rated up to 20 amps. It's the kind of part you reach for when you're wiring in a fish finder, a VHF, a stereo, a set of nav lights, or a small pump, and you want the run fused close to the source instead of leaving bare wire exposed to a fault.

The waterproof part matters more than people think. On a boat, fuse holders end up in bilges, under consoles, behind panels, and in open cockpit spaces that see spray and condensation. A cheap open holder corrodes, the contacts get resistive, and the circuit starts acting flaky long before anything actually blows. This one uses a sealed screw cap that keeps water out of the fuse cavity, so the connection stays clean and the fuse does its job when it's supposed to. That's the whole point of marine-grade gear. It survives the environment it lives in.

It accepts 12 to 16 AWG wire, which covers a big slice of the small circuits on most boats. Nav lights, electronics power leads, courtesy lighting, accessory feeds, and light-duty pumps almost all fall in that range. You strip the wire, land it in the holder, and you've got an in-line break in the circuit with a fuse sitting right there. If you ever need to pull power to troubleshoot, you just back off the cap and lift the fuse. No tools, no cutting.

Because it takes both AGC and MDL fuses, you've got some flexibility on how the circuit behaves. AGC fuses are fast-acting glass fuses that clear quickly on an overload, which is what you want on most electronics and lighting. MDL fuses are the slow-blow, time-delay version of the same physical size, handy on circuits that see a brief inrush at startup, like a motor or a pump, where a fast fuse would nuisance-trip. Same holder, your choice of fuse. Just remember the fuse itself is sold separately, so grab the amperage that matches your wire and your load, up to the 20 amp ceiling.

Sizing is simpler than it sounds once you know the rule of thumb. The fuse protects the wire first and the device second, so you size it to the smallest wire in the run and to the draw of what you're powering. A 16 AWG lead paired with a 20 amp fuse isn't a good match, for example, because the fuse would let far more current through than that thin wire should ever carry. Match the fuse to the wire gauge and the device's rated draw, and you get protection that trips before anything overheats. When in doubt, size down.

This is a single holder, so if you're wiring several new circuits, plan on one per run. Blue Sea Systems has been building marine electrical gear for decades, and their fuse holders, panels, and blocks are a common sight on well-rigged boats for a reason. They're designed to take heat, vibration, salt, and moisture without giving up. For a first-time owner adding one accessory or a rigger running a whole console, the 5062-BSS is an honest, no-drama way to fuse a small DC circuit and keep it protected for the long haul.

One more install tip. Route the holder somewhere you can actually reach. A fuse you can't get to is a fuse you'll curse the day it blows offshore. Tuck it behind the panel where a hand fits, or secure it along a harness run where the cap still clears. And label the circuit while you're in there. Future you, tracing a dead nav light in the dark, will be grateful.
