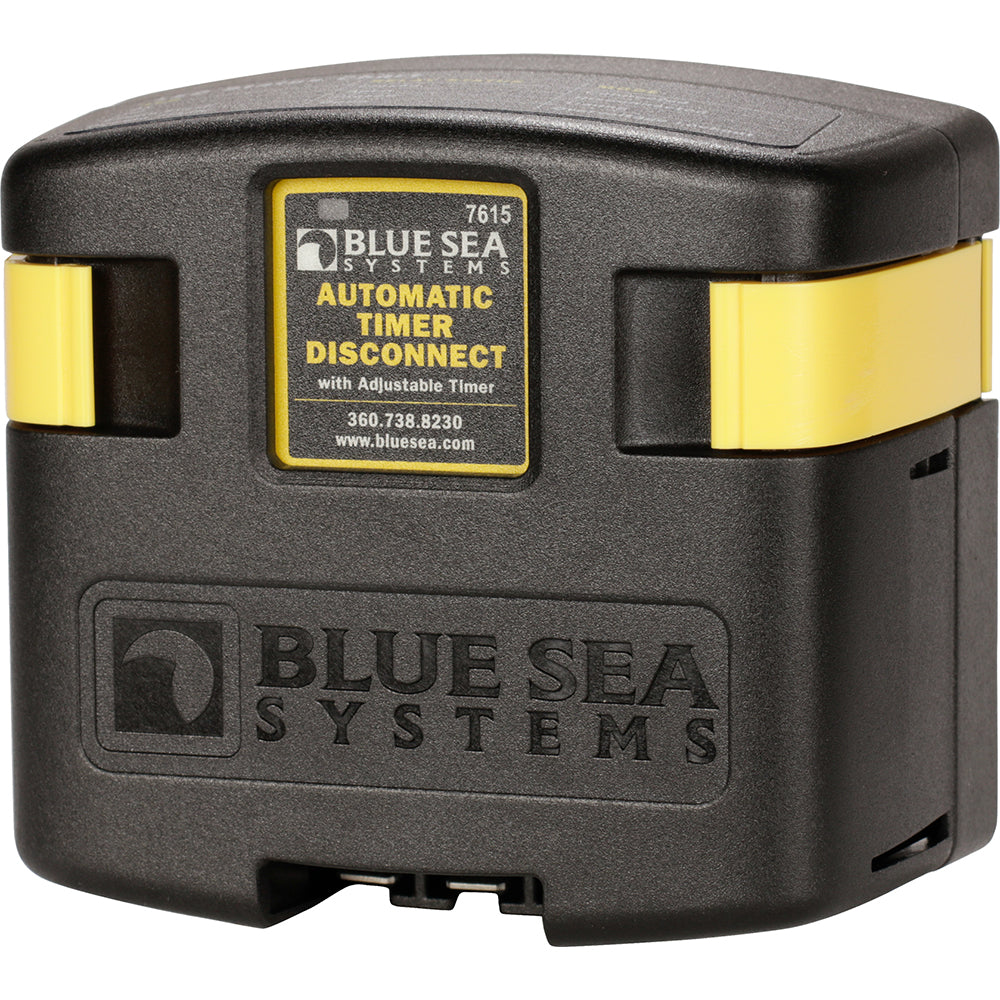

Blue Sea 7615 ATD Automatic Timer Disconnect

Every boater has done it. You leave a stereo, a bilge light, or an accessory circuit on, walk away, and come back to a battery that won't crank. The Blue Sea Systems 7615 ATD Automatic Timer Disconnect exists to stop exactly that. It's a combined timer and low-voltage disconnect that automatically isolates your DC loads from the battery, so a forgotten switch doesn't leave you stranded at the ramp.

Here's how it works. A 12-volt signal, usually from your ignition or an accessory switch, triggers the internal relay and connects battery power to your devices. When that signal goes away, the built-in timer starts counting down. Once it reaches the preset time, the ATD opens and cuts power. You can set the disconnect anywhere from 15 minutes up to 4 hours, with steps at 5 seconds, 30 minutes, 1 hour, 1.5 hours, and 2 hours in between. That flexibility matters. A livewell pump might need a few minutes after shutdown, while cabin lights might get the full 4-hour window.

But the timer is only half the story. The 7615 also watches battery voltage. If your bank drops to a low-voltage threshold before the timer runs out, it disconnects early to preserve enough charge to start the engine. You can set that low-voltage cutoff at 11.0, 11.5, or 12.0 volts depending on how conservative you want to be. And if you'd rather run it purely on the ignition signal, you can turn both the timer and voltage options off and let the removal of the 12V signal do the work. Three ways to trigger a disconnect, one unit.

On the hardware side, this is classic Blue Sea build quality. The main studs are 3/8-inch by 16 tinned copper, rated for a 120-amp continuous load and 210 amps intermittent for up to 5 minutes. That's enough for most house-bank accessory circuits on boats up to around 30 feet. A clip-on cover insulates the terminal connections, and one-piece stainless flange nuts keep everything torqued down safely at 140 inch-pounds. An integrated LED right on the face tells you the connection status at a glance, so you're never guessing whether the loads are live.

A few install notes from the field. Mount the 7615 close to your battery bank. Long sense-wire runs cause voltage drop, and voltage drop can trigger premature disconnects that'll drive you crazy. Feed the trigger from a switched ignition source, not straight off the battery, or the timer stays active all the time and the unit never really sleeps. And fuse the positive control lead. An unfused install is asking for nuisance trips. None of this is hard, but getting it right the first time saves you a headache.

Wiring is straightforward for anyone comfortable with DC work. Size your cables to the load. Blue Sea rates the studs for 1 AWG to meet the full current spec, and they'll accept up to 1/0 AWG. The input voltage range is 9.5 to 16 volts, and there's a 16-volt over-voltage lockout that protects the unit during charging spikes. In a dual-bank setup, the 7615 pairs naturally with a Blue Sea automatic charging relay for hands-off charge and load management. It's a common combination on boats that run a separate house and start bank.

Who's this for? Anglers who run electronics and livewells off a house battery and want their start battery protected. Cruisers who leave the boat for days and don't want to babysit a switch. Anyone who's been burned by a dead battery after a long weekend. It's not a battery charger and it's not a full battery-management system on its own, but as a set-it-and-forget-it disconnect, the 7615 does one job and does it well. And because it's Blue Sea, you can wire it in and trust it to be there when you need it.
