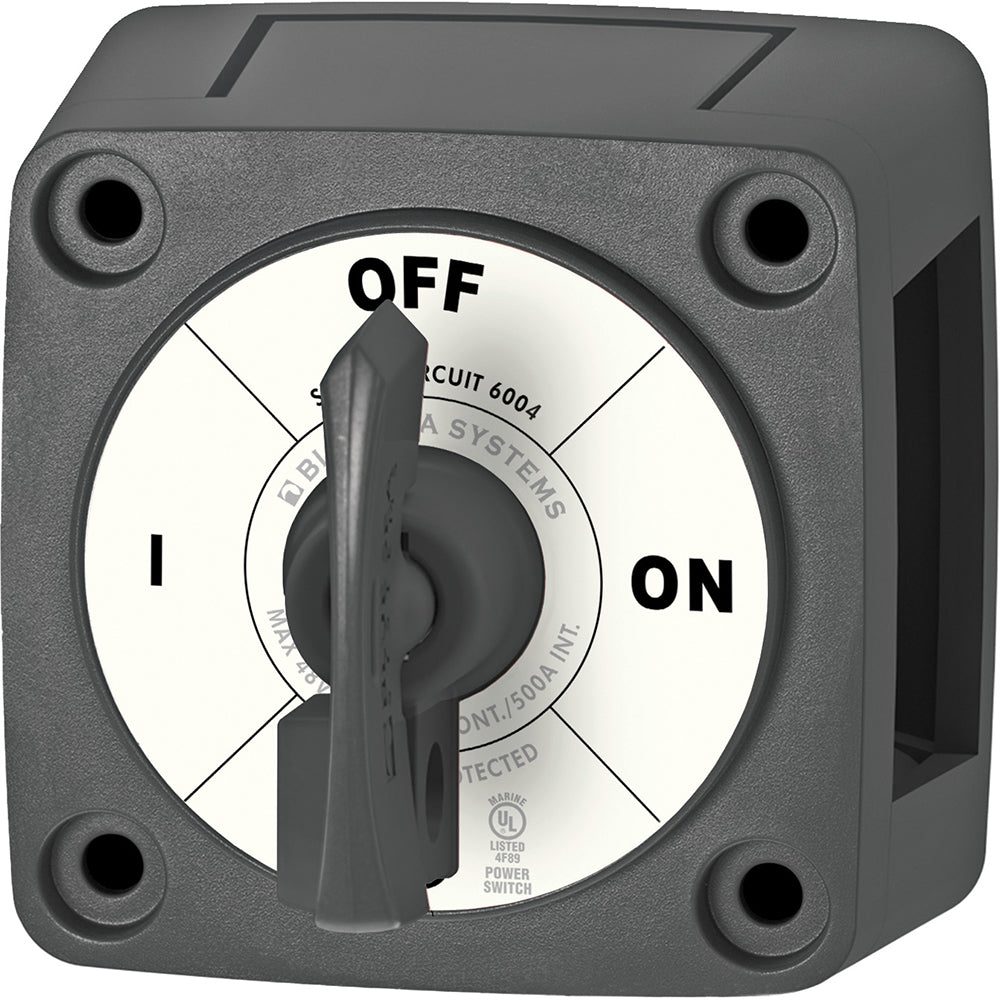

Blue Sea 6004200 Single Circuit ON-OFF Battery Switch - Black

Blue Sea Systems builds electrical gear that survives the harsh reality of a boat, and the 6004200 is a clean example. It's a single-circuit ON-OFF battery switch with a locking key, rated for 300 amps continuous. That's plenty for an outboard rig or a small gas or diesel engine. Flip it to ON before you crank, flip it to OFF when you tie up, and pull the key so nobody kills your bank while you're off the boat.

We reach for a switch like this on center consoles and smaller cruisers where you want a proper main disconnect without a huge footprint. The case is built for surface mounting, and the breakout tabs let you run your cables in from just about any direction. So whether your battery sits below the console or back near the transom, you can route the wiring cleanly. The isolating cover snaps over the rear contacts and keeps stray tools, wet lines, and curious fingers away from live studs.

The studs are where this switch earns its keep. They're tin-plated copper, so they carry current well and shrug off corrosion better than bare brass ever will. Each stud takes a 3/8 inch (M10) ring terminal, and the 7/8 inch (22 mm) length gives you room to stack more than one cable terminal when you need to. Blue Sea's one-piece terminal stud design doesn't back out over time, which matters on an outboard boat that pounds through chop all day. Torque them down with the one-piece stainless flange nuts, add a lock washer, and they'll stay put. A dab of dielectric grease on the key and the contacts once a season keeps salt from seizing things up.

On the electrical side, the numbers are honest. 300 amps continuous, 500 amps intermittent, and a 900 amp cranking rating for 30 seconds. Maximum voltage is 48V DC, so it covers everything from a 12V outboard to a 24V or 48V house and trolling setup. For a boat running a single Group 27 or Group 31 starting battery, this switch is right in the wheelhouse. If you're pulling big sustained loads over 100 amps, like a large inverter bank, step up to a bigger switch. This one is sized for engine and main-disconnect duty, not heavy continuous house draw.

The locking key is the reason a lot of folks pick this exact model over the plain knob version. Trailer boats, rentals, and any boat that sits at a public dock benefit from being able to lock the battery off and walk away. Keep a spare key aboard, because the key is plastic and it'll snap if you force a switch that's gone stiff from corrosion. Mount it somewhere dry and reachable, give the studs a proper torque, and this little switch will happily outlast a couple of engines.

One install note from the field. If you're panel-mounting the key barrel through fiberglass, it wants a clean 1-1/8 inch hole. Thicker glass sometimes needs a little filing so the key seats all the way and turns freely. Take your time on that cutout. A key that binds is a key that breaks, and then you're standing at the dock with half a switch.

It also plays nicely as part of a larger Blue Sea panel. Plenty of boaters run this switch alongside a Blue Sea fuse block for the branch circuits, then add an automatic charging relay when they move up to a two-battery setup. On its own, though, it's a straightforward main battery disconnect. One battery, one engine, one switch, done.

Bottom line, the 6004200 is a well-made main disconnect for the money. The tin-plated copper studs, the never-loosen stud design, and the lockable key are the details that separate it from a cheap parts-store part. If you want a clean, safe way to kill the power on a smaller boat, this is an easy call.
