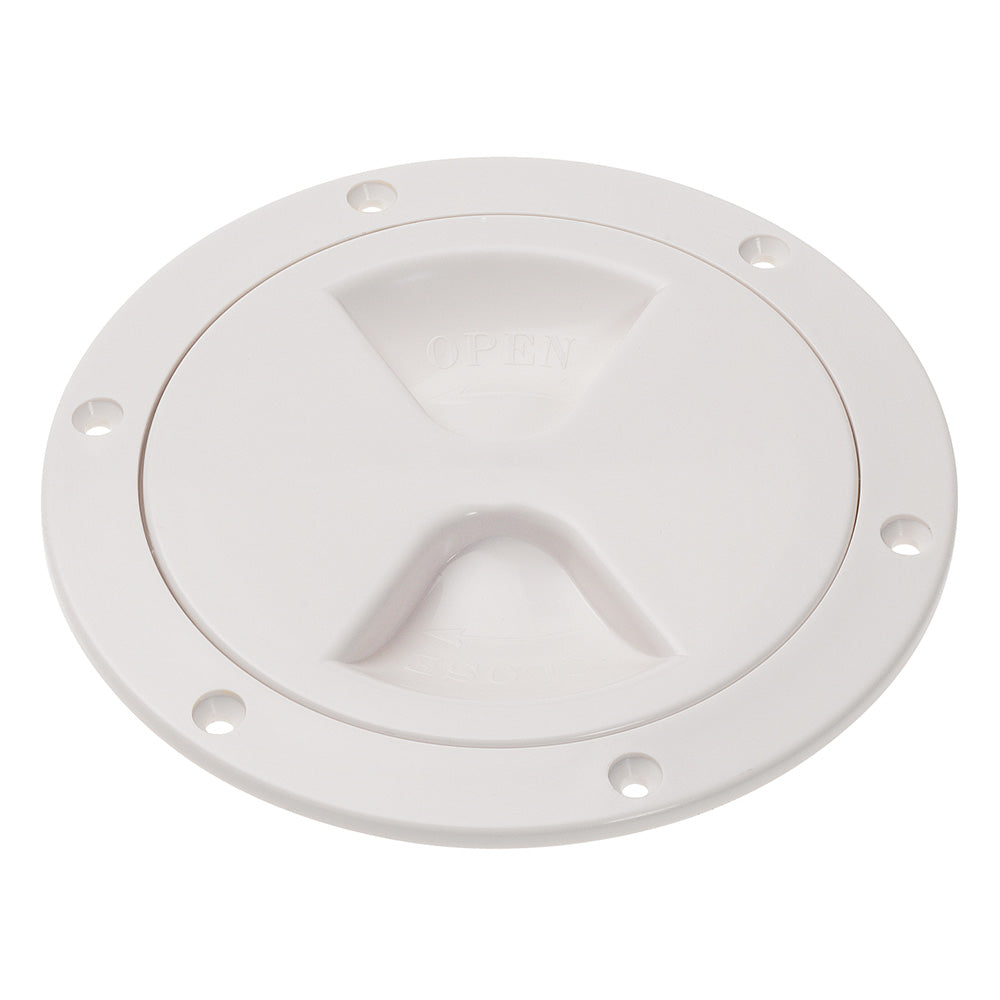

Barton Marine 6" Screw Inspection Cover, 103mm White

Every boat has spaces you need to get into once in a while and never want to think about the rest of the time. The bilge behind a bulkhead. A fuel tank sender. A steering quadrant. Wiring runs buried under a molded liner. The Barton Marine 6-inch screw inspection cover is the honest little part that gives you that access without leaving a permanent open hole in your boat.

It's a screw-in port. You cut a round opening, seat the base ring, and the lid threads into it with an easy-start thread that catches on the first turn instead of cross-threading the way cheaper covers do. There's a built-in O-ring around the lid, so once it's snugged down hand-tight it keeps splash and spray out of the space below. Rain on the mooring, a wave over the rail, a hose-down at the dock. That's exactly what it's built for.

The whole cover is molded from high-impact polycarbonate, and that matters on a boat. It won't rust, it won't corrode in salt air, and it shrugs off the odd knock from a boot or a dropped winch handle. The white finish blends into most deck and locker surfaces, and because it's plastic all the way through, there's no coating to chip or peel off down the road. That's one less thing to maintain.

The 6-inch size, with its 103mm access opening, is the one most folks reach for when they need to get a hand and a tool into a tight space. It's roomy enough to fish a wire, reach a hose clamp, or read a tank gauge, without being so big that it weakens the panel it's set into. You'll see these on cockpit lockers, lazarettes, deck lids, hull liners, and console sides, mostly on cruisers in the 30-foot-and-up range where there's real gear tucked out of sight.

Installing one is a Saturday-morning job. Mark your center, cut a clean 103mm hole with a hole saw, and dry-fit the base before you commit to any sealant. On smooth fiberglass the flange sits flush and seals easily. On textured nonskid or a molded deck pattern, plan to find or make a flat landing so the O-ring has an even surface to press against. Skip that step and you'll chase a slow weep for a season.

We like bedding these in butyl tape rather than silicone. Butyl stays pliable, seals well, and lets you pull the cover years later without fighting cured adhesive or tearing up gelcoat. Run a wrap of it under the flange, set the cover, and snug the fasteners in a cross pattern so the gasket squeezes down evenly.

A word on those screws. Snug is plenty. The threads are plastic, so run the fasteners down firm by hand and stop there. Crank on them and you can strip the boss. If a cover lives somewhere it'll see a lot of on-and-off use, some owners switch to machine screws with a backing plate behind the panel. That spreads the load and gives the fasteners something solid to bite into.

Be clear-eyed about what this is. It's an inspection and access port, not a watertight deck hatch you'd trust underwater on a hard-driven passage. The O-ring keeps out weather and spray, which is precisely what you want over a locker or a dry storage void. For a space that goes fully awash, step up to a gasketed deck plate rated for submersion. For everything else, this Barton cover is the simple, sealed, corrosion-proof answer.

Barton Marine has been making deck gear like this in Whitstable, England for decades, and it shows in the details. The thread pitch is consistent, the O-ring groove is molded clean, and the lid doesn't bind halfway in. If you're rigging out a project boat, buy a few at once. Once you've got quick, sealed access to a tank sender or a stuffing box, you'll wonder how you ever checked them before.
