Balmar XT-DF4-250-DV 250A 12V Marine Alternator, J-180 Dual Foot

When you're running a diesel and a serious house bank, the stock alternator that came bolted to your engine just can't keep up. The Balmar XT-DF4-250-DV is built to fix that. It's a 250 amp, 12 volt alternator from Balmar's XT Series, sized for boats that pull real current: bow thrusters, windlasses, inverters, refrigeration, and a big battery bank that needs to come back up fast between runs.

This one is set up for the common diesels you'll find in cruisers and trawlers. It fits John Deere, Cummins, and Caterpillar engines using the J-180 style mount with a dual foot 4 inch saddle. That's the heavy-duty mounting standard those engines use, so it lands on the factory bracket location without you having to reinvent the whole setup. Some Caterpillar installs still want a bracket check before you bolt it down, so measure twice and dry-fit before you commit.

The pulley is a dual vee, which spreads the load across two belts. At 250 amps you're asking a lot of the belt drive, and a single belt will dust and slip under that kind of pull. Two belts share the work and hold tension better at cruising rpm. Keep them tensioned and dressed and this alternator will charge hard without chirping at you every time the loads come on.

Charging control is handled by an internal regulator, so there's no separate external regulator box to mount and wire. That keeps the install simpler and the wiring cleaner. One thing worth planning for: internal regulators live inside a hot engine bay, so give it airflow and don't box it in. Good ventilation is the difference between a long service life and a mid-season failure when the engine room heat-soaks on a long run.

It's a case-ground design with an M8 thread stud for the positive output. Case ground means the alternator grounds through its mounting foot to the engine block, so you need clean, bare metal contact at the mount. Paint or corrosion under the foot causes intermittent charging that'll drive you nuts chasing it later. Scrape it back to bright metal and you're set. And because you're moving 250 amps at 12 volts, run heavy positive cable, 2/0 or larger, to keep voltage drop in check on the way to the bank.

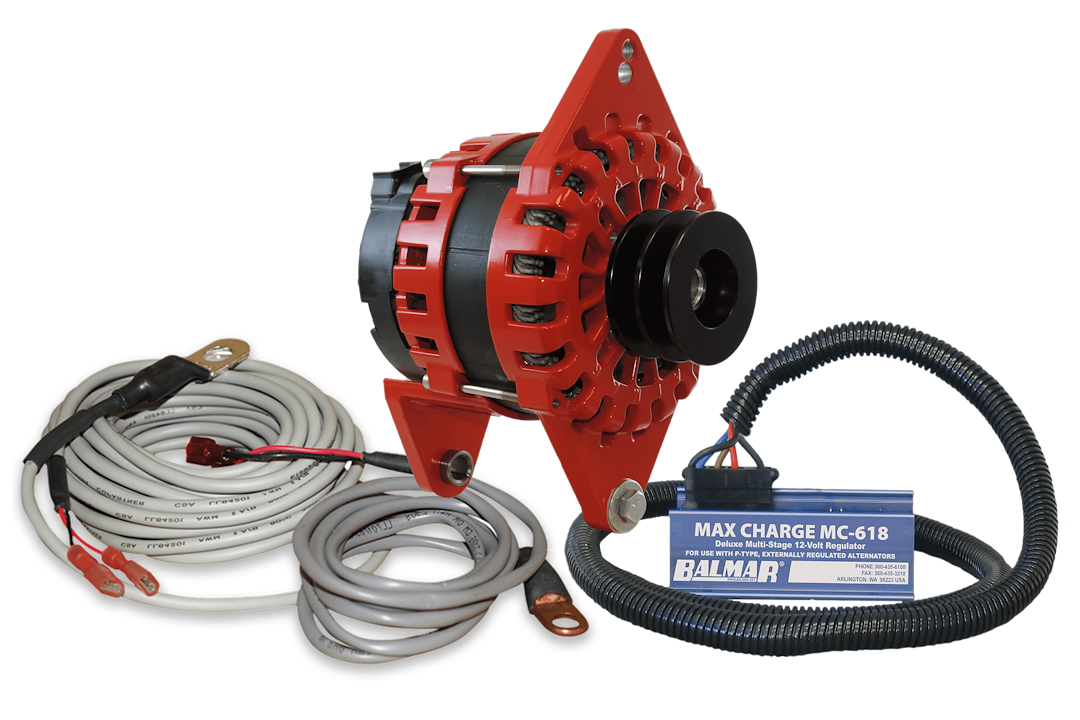

The housing wears a powder coated red finish that looks sharp in the engine room and holds up better than bare steel in salt air. It carries USCG Title 33, CE, and SAE J1171 certification, which matters if a surveyor is looking your boat over or you're running in waters that require compliant, ignition-safe gear.

Here's how to read the part number so you know you've got the right unit. XT-DF4-250-DV breaks down as DF4 for the dual foot 4 inch saddle, 250 for the amperage, and DV for the dual vee pulley. Match those three details to your engine and mounting and you're ordering the correct alternator the first time. Balmar's been building marine charging gear for over 30 years, and the XT Series is their workhorse high-output line, so you're not experimenting here.

Who's this for? Cruisers, trawlers, and sportfishers with a diesel and a house bank big enough that the factory alternator can't recharge it in a reasonable run time. If you've added AGM banks or power-hungry loads and you're tired of running the genset just to top off, a high-output alternator like this earns its keep fast. It'll work happily with an AGM bank, and we'd pair it with a proper battery monitor so you always know your true state of charge and don't lean on the bank harder than you should. Set it up right and you've got a charging system that finally keeps up with how you actually use the boat.
