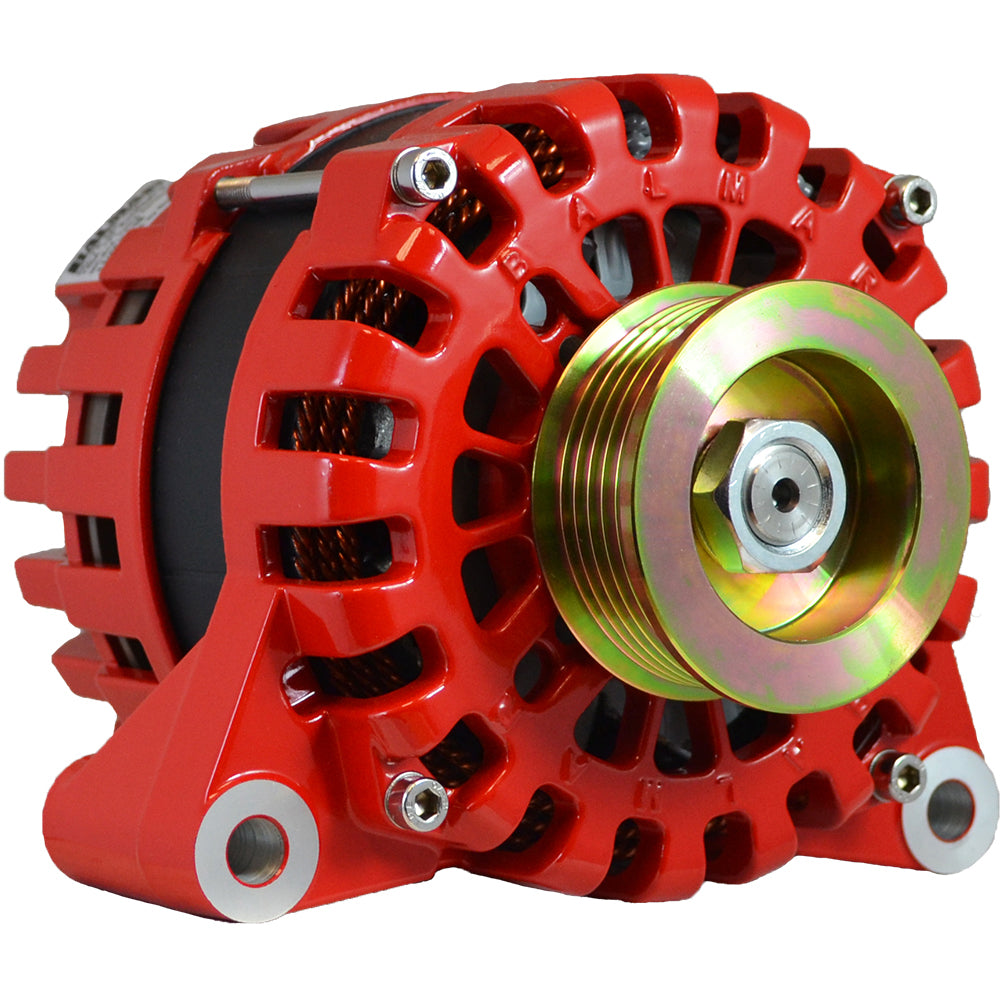

Balmar XT-VT-170-K6-IG 170A 12V Marine Alternator, Vortec Mount

Balmar's been building marine charging gear for over 30 years, and the XT-Series is where their high-output engineering lives. This one is the XT-VT-170-K6-IG: 170 amps at 12 volts, set up for a Vortec engine mount with a K6 serpentine pulley and isolated grounding. If your stock engine alternator is falling behind a growing house bank, this is the kind of upgrade that actually fixes the problem instead of masking it.

Here's the situation it's built for. You've added a second battery bank, maybe a bigger inverter, a fridge that runs all night at anchor. And your factory alternator, the one that came bolted to the engine, just can't keep up. It was sized to run the engine and top off a starting battery, not to bulk-charge a big house bank on a short motor between anchorages. A 170-amp Balmar changes that math. You get real charging current back into the bank fast, so you spend less time running the engine just to make electricity.

The Vortec mount matters. This unit is set up to bolt to GM Vortec-style marine engine blocks, the 5.7 and 8.1 liter gas engines you'll find in a lot of inboard and sterndrive boats. The K6 pulley takes a 6-groove serpentine belt, which is what those engines run. Get the mount and pulley right and the install is straightforward. Get them wrong and you're fighting belt alignment and brackets, so double-check your engine's setup before you order.

One thing to understand up front: this is an externally regulated alternator. There's no smart regulator built into the case, and that's on purpose. Balmar wants you running one of their external regulators, the MC-614 or an ARS-5, so you get proper multi-stage charging tuned to your battery chemistry. That external regulator is what protects your expensive battery bank and lets the alternator run hard without cooking itself or boiling the batteries. Budget for it if you don't already have one. An XT alternator without a proper external regulator is only doing half the job.

Isolated grounding is the other piece. The IG in the part number means the alternator's negative is isolated from the case, so you run a dedicated ground cable back to your battery negative instead of relying on the engine block for the return path. On aluminum boats especially, that's how you keep stray-current corrosion in check. On any boat it gives you a cleaner, lower-resistance charging circuit.

A 170-amp alternator pulls real current on the output side too, so plan your cabling for it. You want heavy gauge positive and negative runs and proper over-current protection like an ANL fuse close to the alternator. Undersized wiring is the most common install mistake we see, and it shows up as heat and voltage drop right when the alternator is working hardest. Engine bays run hot, so decent ventilation around the unit helps it hit rated output and last.

Balmar builds these to survive the marine environment. The XT-Series gets high-reliability bearings, heavy-duty rectifier diodes, and improved heat-sinking so the alternator can put out serious current without frying itself. It's a serviceable unit too, which matters when you're a long way from a shop and would rather replace a bearing than the whole alternator.

So who's this for? Cruisers, liveaboards, and anyone with a house bank big enough that slow charging has become a daily annoyance. It's not the part for a simple runabout with one battery. That boat doesn't need 170 amps and the money's better spent elsewhere. But if you're serious about charging at anchor and you've got the GM Vortec engine to bolt it to, the XT-VT-170 is a proven, serviceable piece of gear that'll charge hard for years.
