Arcon

Arcon 20711N LED Ceiling Light, Soft White 12V

SKU: 2010666 · UPC: 880268197670 · MPN: 20711N
4.7 · 0 reviews
Authorized dealer58% off
$12.09
$29.00Save $16.91
or 4 payments of $3.02 with Affirm · See disclosures
In stock — Ships today Pickup Next-Day · Fort Lauderdale (FL)
SAME-DAY SHIPPING · 14:23 EST
Order in time, ships today
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$12.09
02 · Overview

Arcon 20711N LED Ceiling Light, Soft White 12V — Product description

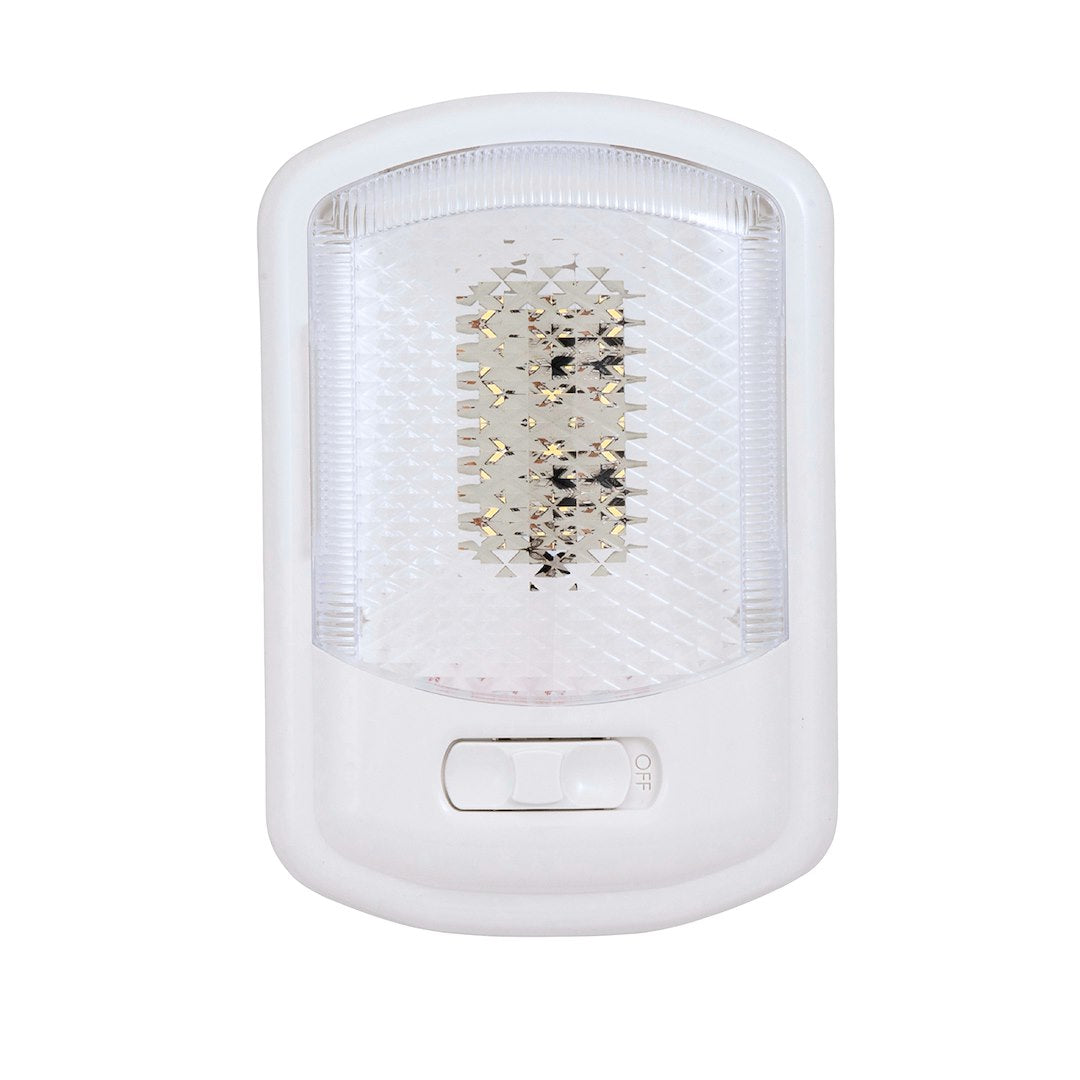

The Arcon 20711N is a compact Euro-style LED ceiling light for RVs, campers, and boat cabins. A soft white SMD LED behind a clear optic lens gives you gentle, even interior light on 12 volts, with a two-position on/off switch built into the fixture. Low draw, long life, and it fits the tight ceiling spots a bigger dome light won't.

The Arcon 20711N is one of those simple upgrades that makes a real difference inside a camper or a boat cabin. It's a single LED ceiling light, Euro-style, with a soft white SMD LED sitting behind a clear optic lens. Soft white is the warmer, easier-on-the-eyes tone, so it's a good pick for a cabin, a dinette, or over a bunk where you want usable light without a cold blue cast. It runs on 12 volts DC, straight off your house battery.

Size is the first thing folks ask about, because ceiling space in an RV or a boat is always tight. This one measures 7-1/4 inches long by 4.95 inches wide. That's compact enough to drop into spots where a bigger dome fixture just won't fit, and it's a common footprint for swapping out an old incandescent light that's been quietly draining your battery. LEDs pull a fraction of the current an old bulb does, and they last for years, so you're not up on a ladder replacing bulbs every season.

There's a two-position on/off switch built right into the fixture. Reach up, click it, done. You don't have to wire in a separate wall switch if you don't want one, though you can certainly run it off an existing switched circuit. The clear optic lens snaps into place, so when it gets dusty or a bug finds its way inside, you pop it off, wipe it down, and snap it back. No tools, no fuss.

Where does it earn its keep? RV interiors, camper updates, trailer retrofits, and marine cabins. If you're modernizing an older rig, replacing tired incandescent ceiling lights with LEDs is one of the highest-value jobs you can do. Lower draw means your battery lasts longer between charges, which matters a lot when you're boondocking or sitting on the hook overnight. In a boat, the same logic holds. Cabin lighting that sips power keeps more amp-hours in reserve for the gear that really needs them.

Here's the practical side. An old incandescent dome light can pull well over an amp, and every fixture you leave on adds up. A soft white LED like this one draws only a small slice of that for comparable usable light in a small cabin. Multiply the savings across every light in the rig, over a weekend away from shore power, and the amp-hours you keep in the bank add up fast. That's the real reason people switch, not just the modern look.

A quick word on the light itself. Soft white SMD LEDs give you even, gentle illumination instead of a harsh spotlight. It's ambient light for living space, for reading, for moving around the galley at night without waking the whole crew. If you'd rather have a cooler, brighter output, Arcon builds bright white versions of this same Euro-style fixture. But for a comfortable interior glow, soft white is the one most people reach for.

Installation is straightforward for anyone comfortable with basic 12-volt DC wiring. Two wires, positive and negative, tie into your existing lighting circuit. Confirm your system is 12 volts, kill the power at the panel, and it's a quick job. If DC wiring isn't your thing, any RV tech or marine electrician will have this in and working in a few minutes.

It's not a floodlight, and it's not built for exterior use. This is interior ceiling lighting, sized for the low-profile spots you find in a camper or a boat cabin. For what it is, a clean, low-draw, soft white LED ceiling light with a removable lens and a built-in switch, it's a solid, no-drama choice that'll quietly do its job for a long time.

Key Features

  • Soft white SMD LED delivers gentle, even interior light without the harsh blue cast of cooler bulbs
  • 12 volt DC operation ties straight into your RV or boat house battery lighting circuit
  • Compact 7-1/4 inch by 4.95 inch footprint fits tight ceiling spots a larger dome light won't
  • Clear optic lens snaps off for quick cleaning, then snaps back in place with no tools
  • Two-position on/off switch built into the fixture, no separate wall switch required
  • LED draw is a fraction of an old incandescent dome, so your battery lasts longer off the grid
  • Euro-style low-profile design for a clean look in campers, trailers, and boat cabins
  • Long LED service life means you're not swapping bulbs every season

Why Buy from NVN Marine

  • Authorized Arcon reseller, full manufacturer warranty
  • NMEA member and ABYC certified, advice from real boat techs
  • Same-day shipping before 3 PM ET on in-stock items
  • NY headquarters and Fort Lauderdale flagship retail store
NVN Marine — 11 W State Road 84, Fort Lauderdale, FL 33315 Available for pickup at our Fort Lauderdale store (Next-Day) $12.09
03 · The numbers

Technical specifications

Title LED Ceiling Single Light, Clear Lens, 7-1/4 Inch Length x 4.95 Inch Width, Soft White SMD LED, 12 Volt
Brand Arcon
Manufacturer Part Number 20711N
UPC 880268197670
Light Source Soft White SMD LED
Bulb Color Soft White
Lens Color Clear
Lens Type Clear optic, snap-in removable
Length 7-1/4 in (7.25 in)
Width 4.95 in
Voltage 12 Volt DC
Fixture Type Single LED ceiling light
Style Euro-style low-profile
Switch Two-position on/off, fixture-mounted
Mounting Ceiling mount, interior
Applications RV, camper, trailer, marine interior
Keystone Part Number ARC20711N
04 · Before you buy

Frequently asked questions

Is the 20711N a soft white or bright white light?

Soft white. The SMD LED puts out a warm, gentle glow that's easy on the eyes, good for cabin, dinette, and bunk lighting. If you want a cooler, brighter output, Arcon makes bright white versions of the same Euro-style fixture.

What are the dimensions?

It measures 7-1/4 inches long by 4.95 inches wide, a compact footprint that fits tight ceiling spaces in an RV or boat.

What voltage does it run on?

12 volts DC. It wires into a standard RV or marine house battery lighting circuit.

Does it come with a switch?

Yes. There's a two-position on/off switch built right into the fixture, so you can operate it without a separate wall switch.

Can I use it in a boat?

Yes. It's rated for marine applications along with RV interiors, campers, and trailers. The low 12V draw is a plus when you're conserving amp-hours on the water.

Is the lens removable for cleaning?

The clear optic lens snaps in and out, so you can pop it off to wipe out dust or bugs and snap it back.

Will it replace an old incandescent ceiling light?

In most cases, yes. Its compact size fits common ceiling openings, and swapping an old incandescent dome for this LED cuts your current draw significantly.

Is this an interior or exterior light?

Interior. It's designed as a ceiling light for RV and boat cabins, not for outdoor or exterior mounting.

What's the manufacturer part number?

The Arcon part number is 20711N, listed by Keystone as ARC20711N.
