ARCO FP003 Fuel Pump | Johnson Evinrude 9.9/15 HP
ARCO FP003 Fuel Pump | Johnson Evinrude 9.9/15 HP — Product description

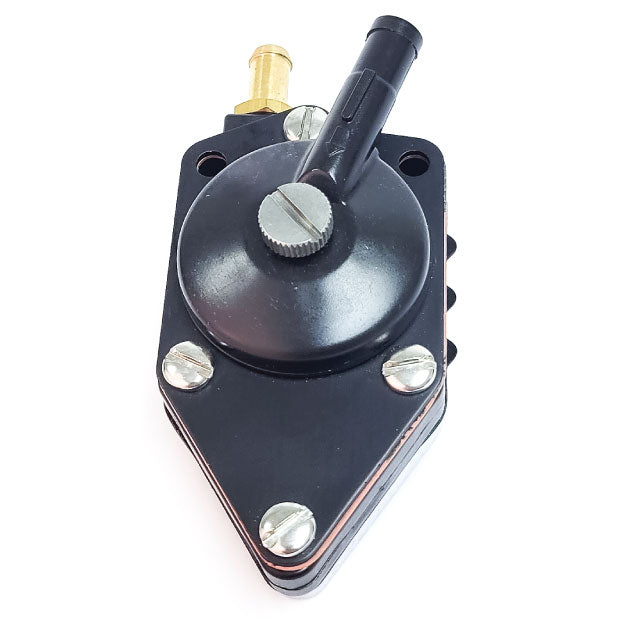

Lost fuel pressure on your Johnson or Evinrude 9.9 or 15 HP? The ARCO FP003 is the direct replacement fuel pump for those small outboards, 1993 through 2007. It's OEM-quality build from a company that's been making marine engine parts for nearly 60 years. Bolt it in and get your fuel delivery back.
The ARCO Marine FP003 is the direct replacement fuel pump for Johnson and Evinrude outboards in the 9.9 and 15 HP range, covering model years 1993 through 2007. If your small outboard has started stalling at speed, getting hard to start, or sputtering like it's starving for gas, a tired fuel pump is one of the first things to check. This is the part that fixes it, and it's an easy afternoon job for most owners.
ARCO's been building marine engine parts for nearly 60 years. Starters, alternators, tilt and trim motors, and pumps like this one. They test every unit past normal operating conditions before it ships, so what you're bolting on is OEM quality or better, not a bargain-bin casting that quits on you two seasons in. On a 9.9 or 15 HP kicker or main, that reliability matters. These are the engines people trust to get home when the weather turns, and a fuel pump that fails offshore is exactly the kind of trouble you don't want.
Installation is straightforward for anyone comfortable working on their own powerhead. The FP003 mounts in the original location and runs off the same crankcase pulse and fuel lines as the pump it replaces. Pull the old one, transfer your lines, mount the new pump, and prime the system. If you've done a water pump impeller, you can handle this. Take a photo of your line routing before you pull anything so it all goes back exactly the way it came off.
One thing to confirm before you order: this pump is built for gasoline engines in the 9.9 and 15 HP families from 1993 to 2007. If your engine falls outside that range, or you're not sure which pump your serial number calls for, reach out. We'd rather get you the right part the first time than have you guessing. Get the fuel delivery sorted and that little outboard will start easy and hold RPM all day.
Key Features
- Direct replacement fuel pump, ARCO part number FP003
- Fits Johnson and Evinrude 9.9 and 15 HP outboards, model years 1993 to 2007
- Built for gasoline engines
- OEM-quality or better construction, tested past normal operating conditions before shipping
- Mounts in the original location using the existing crankcase pulse and fuel lines
- Backed by nearly 60 years of ARCO marine engine parts manufacturing
Why Buy from NVN Marine
- Authorized ARCO Marine reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | ARCO Marine FP003 Fuel Pump |
|---|---|
| Brand | ARCO Marine |
| Manufacturer Part Number | FP003 |
| UPC | 693006030708 |
| Part Type | Fuel Pump |
| Fits Engine Makes | Johnson, Evinrude |
| Engine Horsepower | 9.9 HP, 15 HP |
| Model Years | 1993 to 2007 |
| Fuel Type | Gasoline |
| Application | Outboard engine fuel delivery |
| Replacement Type | Direct OEM-quality replacement |
Frequently asked questions
Which outboards does the ARCO FP003 fit?
It's the direct replacement fuel pump for Johnson and Evinrude 9.9 and 15 HP outboards built from 1993 through 2007, running gasoline. If your engine is in that range, this is your pump.
Is the FP003 an OEM-quality part?
Yes. ARCO builds to OEM quality or better and tests every unit past normal operating conditions before it ships. You're not gambling on a bargain casting here.
Will this pump work on a diesel or oil-injected two-stroke?
The FP003 is built for the gasoline 9.9 and 15 HP engines in the listed range. If you run a different fuel setup or a different displacement, check with us before ordering so you get the right part.
How do I know my fuel pump is the problem?
Classic signs are hard starting, stalling when you throttle up, sputtering under load, or an engine that runs fine at idle but starves at speed. A worn diaphragm loses its ability to pull fuel. If you've ruled out the tank vent, primer bulb, and fuel lines, the pump is the next suspect.
Is the manufacturer warranty included?
Yes. We're an authorized ARCO Marine reseller, so the FP003 carries the full manufacturer warranty.
My engine is a 1992 or a 2008. Will this still fit?
This pump is spec'd for the 1993 to 2007 range. Outside that, the mounting or pulse fitting may differ. Send us your engine model and serial number and we'll confirm the right pump before you buy.
