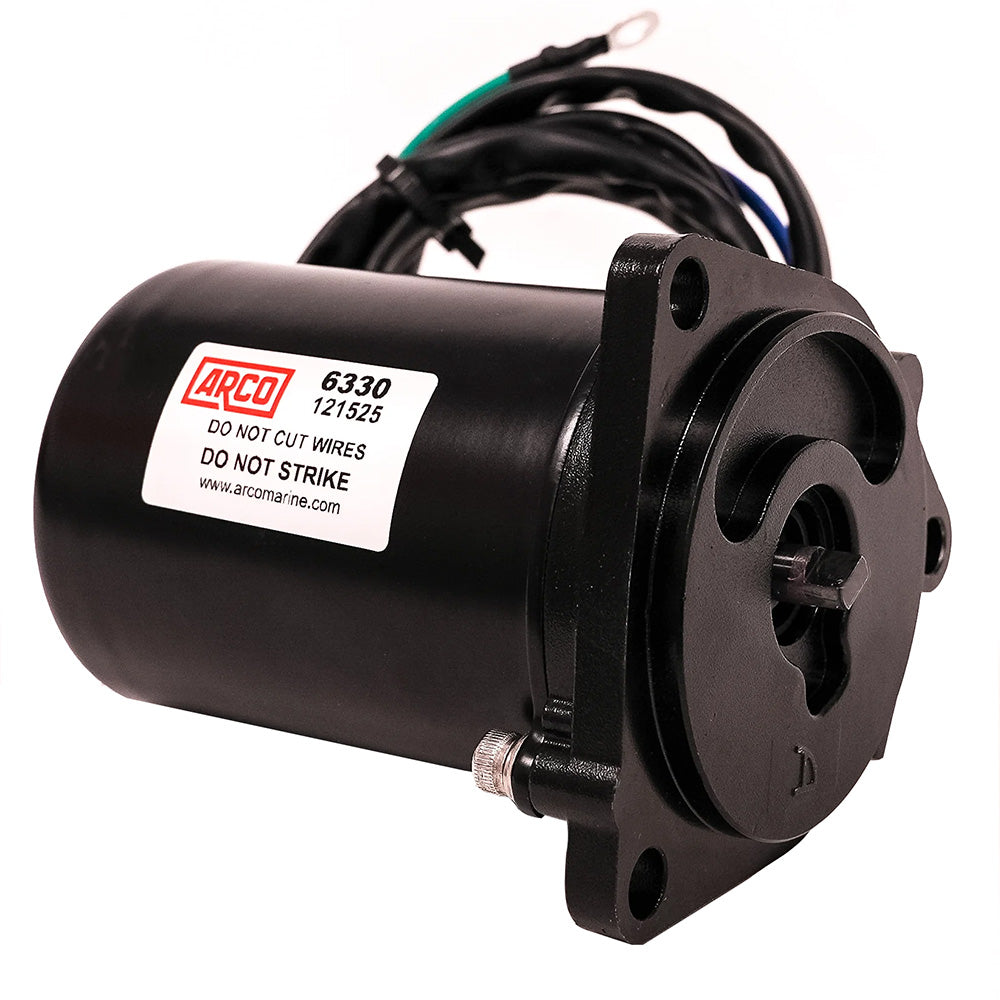

ARCO Marine 6330 Power Trim & Tilt Motor, Yamaha 200-300 HP 4-Stroke

When your outboard won't tilt up at the ramp or won't trim down for the hole shot, the part that's usually let go is the power trim and tilt motor. It's the small 12-volt DC motor that drives the hydraulic pump behind your engine, and when it dies you're stuck manually cranking the outboard or, worse, sitting at the dock. This ARCO Marine 6330 is a direct replacement for that motor, built for 2020 and newer 200 to 300 HP four-stroke outboards.

Here's what a trim and tilt motor actually does. When you thumb the switch at the helm, this motor spins the pump that pushes hydraulic fluid to the trim rams. Trim the bow down and you get a cleaner hole shot and better acceleration. Trim it up at speed and you cut drag, pick up a couple of knots, and smooth out the ride in a chop. Tilt the engine all the way up and you can trailer, beach, or flush the motor without the lower unit dragging. So when this little motor quits, you lose a lot more than a convenience feature.

ARCO has been building marine engine electrical parts for nearly 60 years, and they test every unit past normal operating conditions before it ships. This 6330 is OEM quality or better, which means it drops into the factory location and runs the same as the original, often for a good bit less than what you'd pay at the dealer counter. If you've been putting off the repair because of the quote you got, this is the part that makes it affordable.

Fitment is specific, so match it before you buy. This motor fits 2020 and newer four-strokes in the 200, 225, 250, and 300 HP range. It uses the 3-bolt mounting pattern and a 2-wire connection at 12 volts. It does not fit the older engines or the two-strokes, and the 2020 model-year cutoff matters because the trim assembly changed around then. If your engine is a 2019 or earlier, or falls outside that horsepower band, check your part number against ours before ordering.

We see these go on center consoles, bay boats, and offshore rigs alike, basically any outboard-powered hull in that horsepower range that's put in a few seasons. Trim and tilt motors live a hard life. They're mounted low, they take spray and salt, and they cycle every single time you launch and load. Getting five to ten years out of one is normal, and when it's time, a quality replacement like this gets you back on the water without a dealer wait.

The install is well within reach for anyone comfortable with basic hand tools and a little patience. The 6330 comes with the O-ring and the ring terminal ends already fitted, so you're not chasing down extra bits. A couple of pointers from the rigging bench: coat the O-ring with a thin film of engine oil before you seat it, which helps it slip into place and seal cleanly instead of pinching. Snug the ring terminals down properly and check them again after your first few hours on the water, because engine vibration can back off a connection that felt tight in the driveway. And if your battery run to the transom is long, use a heavy enough gauge wire so the motor gets full voltage under load.

One honest note. A power trim and tilt problem isn't always the motor. If your unit hums but nothing moves, you may be low on fluid or have air in the system. If nothing happens at all, check the trim relay, the fuse, and the ground first. But once you've traced it to a dead motor, this is the part you want. It's the right fix, it's built to last, and it gets your outboard tilting and trimming the way it should.
