Ancor G-4 Halogen Bulb 12V 10W Pin Base | NVN Marine

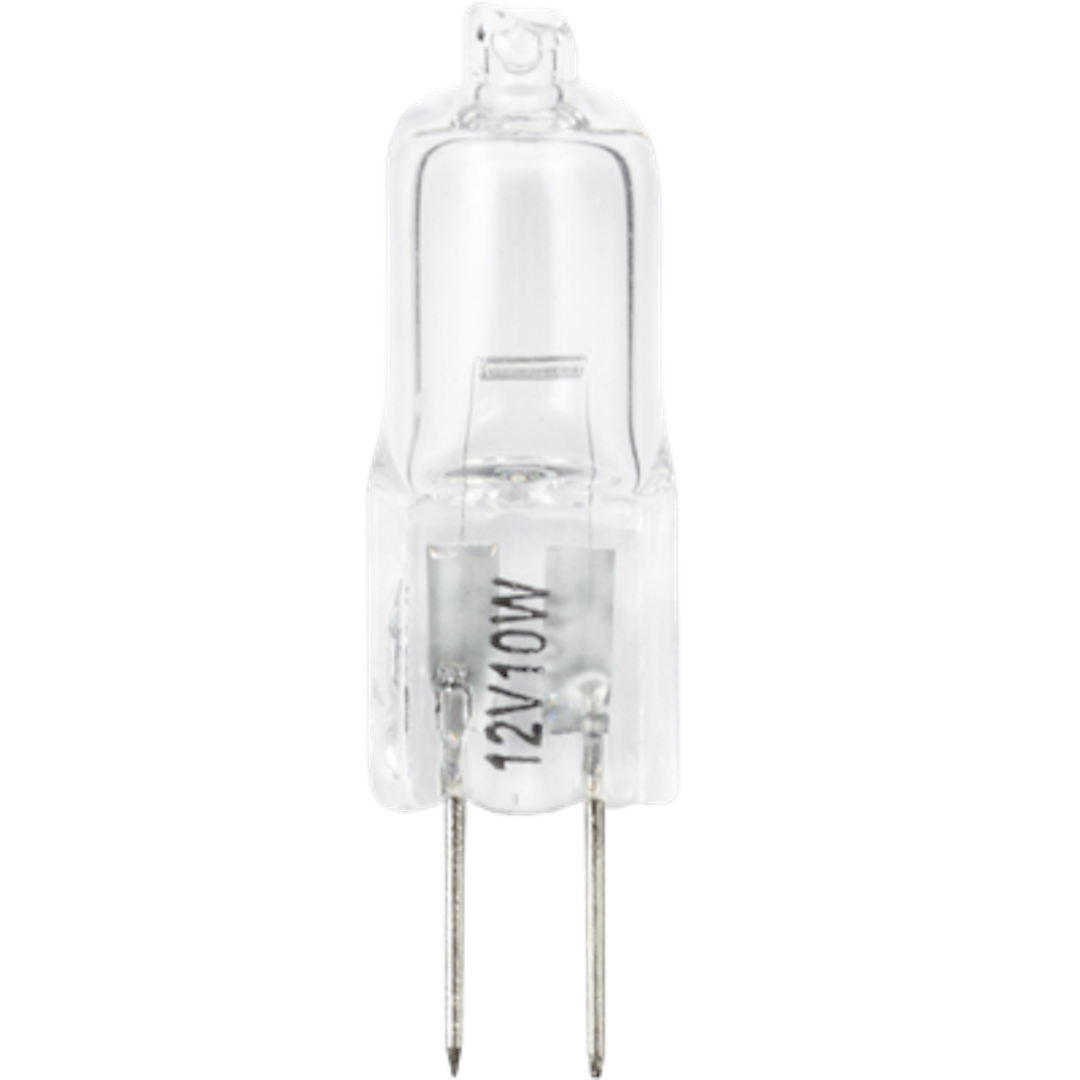

Every boat has a handful of these little pin-base bulbs tucked into fixtures you forget about until one of them goes dark. The Ancor G-4 halogen bulb is the 12-volt, 10-watt replacement for exactly those spots. It's a small bulb with a two-pin G-4 base, and it's built for the kind of service a boat demands rather than the easy life of a house lamp.

Let's start with the numbers, because they matter when you're working off a battery bank. This bulb runs on 12 volts and pulls 10 watts, which works out to about 0.83 amps. That's a known, honest draw. If you've got three or four of these burning in the cabin on a quiet night at anchor, you can do the math on your house bank and know roughly what you're spending. Nothing mysterious, nothing that creeps.

What sets the Ancor bulb apart from a generic replacement is how it's put together. The glass envelope is heavy-duty, built to resist breakage, because a boat is a rough place for glass. Slamming into a chop, trailering down the interstate, a locker door that catches a swell the wrong way. Ordinary bulbs don't love any of that. This one is made to take it. The base is nickel-plated brass, and that plating is there for one reason: salt air eats bare metal. A corroded contact is a flickering light or a dead one, and the nickel plating keeps that positive point of contact clean and conducting far longer than a plain base would.

Then there's the filament. Ancor builds these with a rough-service filament design, which is a plain way of saying the filament is wound and supported to survive vibration. On the water, everything vibrates. The engine, the hull pounding, the trailer on the highway. A standard filament is the first thing to fail under that kind of constant shake. The rough-service design gives you hours of reliable burning in an environment that's hard on everything.

So where does this bulb actually live on a boat? The G-4 pin base shows up in a lot of small 12-volt fixtures. Think cabin dome lights, reading lights over a berth, courtesy lights down in the companionway, and the little accent and task fixtures that came with the boat. If you pull an existing bulb and it's a two-pin G-4 rated at 12 volts and 10 watts, this Ancor bulb drops right in. No rewiring, no adapters.

Swapping one is about as simple as it gets. Kill the power to the fixture, let the old bulb cool if it's been on, and pull it straight out of the socket. The two pins seat into the holder with a gentle push. Here's one tip worth following: try not to touch the glass with bare fingers. The oils from your skin can create a hot spot on a halogen envelope and shorten its life. A clean cloth or the little bag it ships in works fine for handling.

One more thing on the electrical side. Because it's a true 12-volt bulb, it's happy on a standard marine DC system running straight off the batteries, and it's equally at home on an RV or a trailer running the same 12-volt setup. The 0.83-amp draw is low enough that it won't stress typical fixture wiring, and the 10-watt output gives you real, usable light in a small space without cooking the fixture. If your old bulb was a 5-watt or a 20-watt G-4, double-check the rating before you swap, because matching the wattage keeps the fixture and the lens within the heat they were designed for.

A couple of honest notes. This is a halogen bulb, so it runs warm and it throws that warm, familiar incandescent-style light a lot of boaters still prefer in a cabin. It isn't an LED, so it won't match an LED on raw efficiency, but it will match the exact look and color of the original fixtures on an older boat, and plenty of folks want that. It's also sold one bulb per package, so if you're planning to re-lamp several fixtures at once, order the count you need.

Bottom line, this is a quiet, dependable replacement part from a company that has spent decades building marine-grade electrical gear. It won't make headlines. It'll just work, night after night, which is exactly what you want from the bulb over your bunk.
