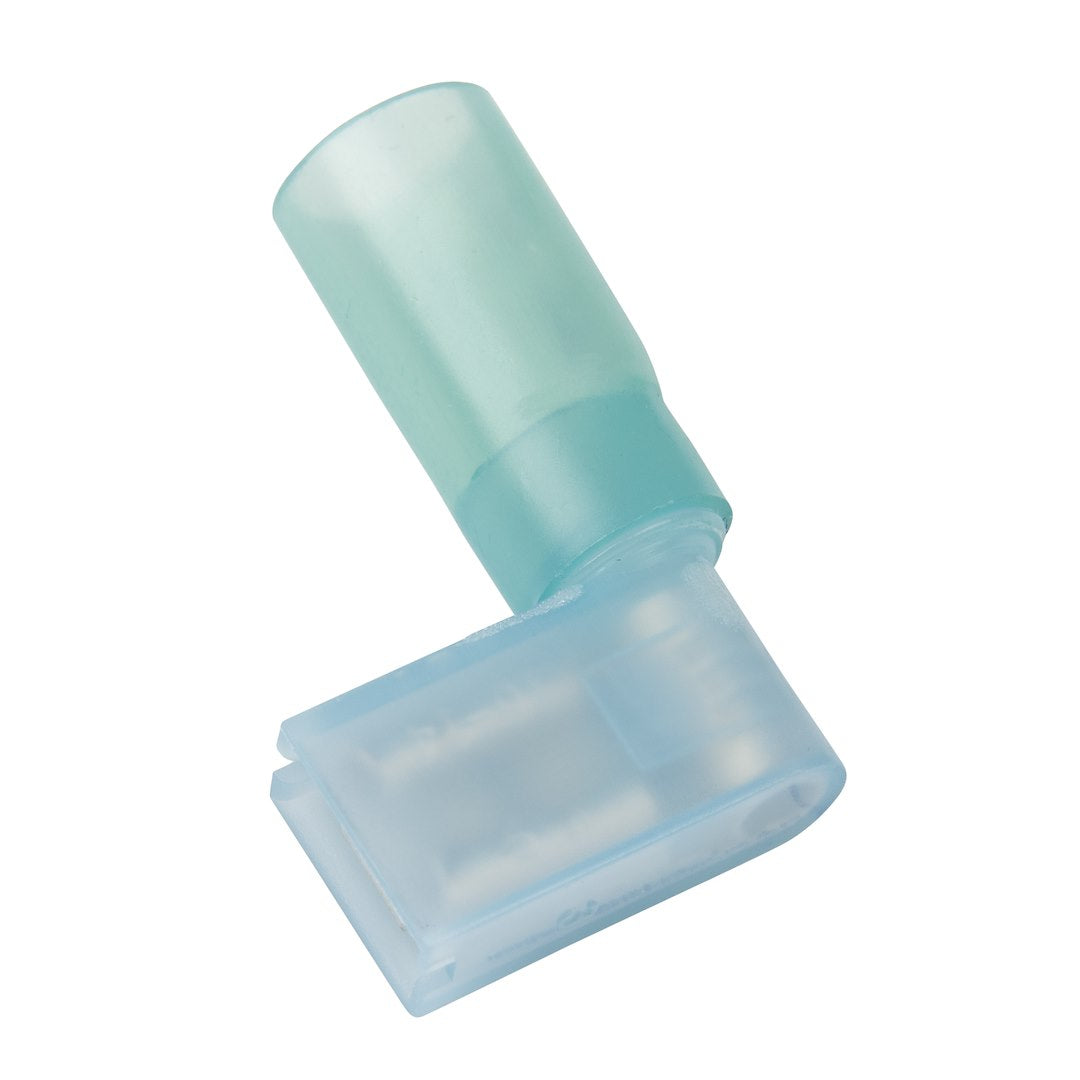

Ancor 357803 Heat Shrink Flag Disconnect 16-24 AWG

Ancor's 357803 is a 1/4 inch female flag disconnect built for the kind of wiring job where a straight terminal just won't fit. You get three of them in a pack, each rated for 16 to 24 gauge wire, and each one wrapped in adhesive-lined heat shrink that seals up tight the moment you hit it with a heat gun. If you've ever tried to land a spade terminal on a switch tucked behind a crowded panel, you already know why the flag shape exists.

So what's a flag disconnect? It's a female spade terminal where the connector tab sits at a 90 degree angle to the wire instead of running straight off the end. That right angle is the whole point. When you're working behind a breaker panel, up under the dash, or anywhere the wire has to turn hard to reach the tab, a flag terminal lets you make the connection without kinking the wire or fighting for clearance. The 90 degree angle simplifies wire routing and keeps your runs clean.

You'll see flag terminals most on panel-mount switches, rocker switches, and breakers where the blade tab points sideways and space is tight. A standard straight quick-disconnect would stick the wire straight out into whatever is behind the panel. The flag turns that connection flat against the surface so you can close the panel back up without pinching anything.

The heat shrink is where the marine grade part earns its keep. Ancor builds a heat-activated adhesive right into the sleeve. Crimp the terminal, slide it onto the tab, then warm the insulation. As it shrinks down it squeezes onto the wire and the adhesive flows into every gap, forming a water tight seal and real strain relief at the same time. That seal is what keeps salt air and spray from creeping up under the insulation and corroding the connection. On a boat, that's the difference between a joint that lasts a decade and one that turns green in a season.

Underneath the insulation you get tinned copper, which is the standard Ancor holds all their Marine Grade terminals to. Tinned copper gives you low electrical resistance and strong corrosion protection, so the connection stays solid even in a damp bilge or an open console. The barrel is sized to grip 16 to 24 gauge wire, which covers most of the light-duty circuits on a boat: instrument feeds, cabin lighting, accessory switches, electronics power leads, and sensor wiring.

Install is straightforward if you've crimped a terminal before. Strip your wire to the right length, seat it fully in the barrel, and crimp with a proper ratcheting tool. Then slide the flag onto the 1/4 inch male tab and hit the heat shrink with a heat gun until it's fully collapsed and you see a little adhesive weep at the ends. Don't rush the heat step. The seal only works if the adhesive actually flows. A cheap lighter can scorch the sleeve, so a real heat gun is worth having in the kit.

You get three in a pack, which is handy for a small run or for keeping a couple in the spares box for the next repair. Blue coded for the gauge range, marine grade through and through. If you're rewiring a helm, adding an accessory circuit, or just fixing a corroded connection that finally gave up, these flag disconnects do the quiet, unglamorous work of keeping the electrons flowing where a straight terminal can't reach. It's a small part. But the right terminal in the right spot is what separates a clean, reliable install from a corroded headache a few seasons down the road. Small terminal, big payoff.
