Ancor 356803 Heat Shrink Flag Disconnect 22-18 AWG 3pk

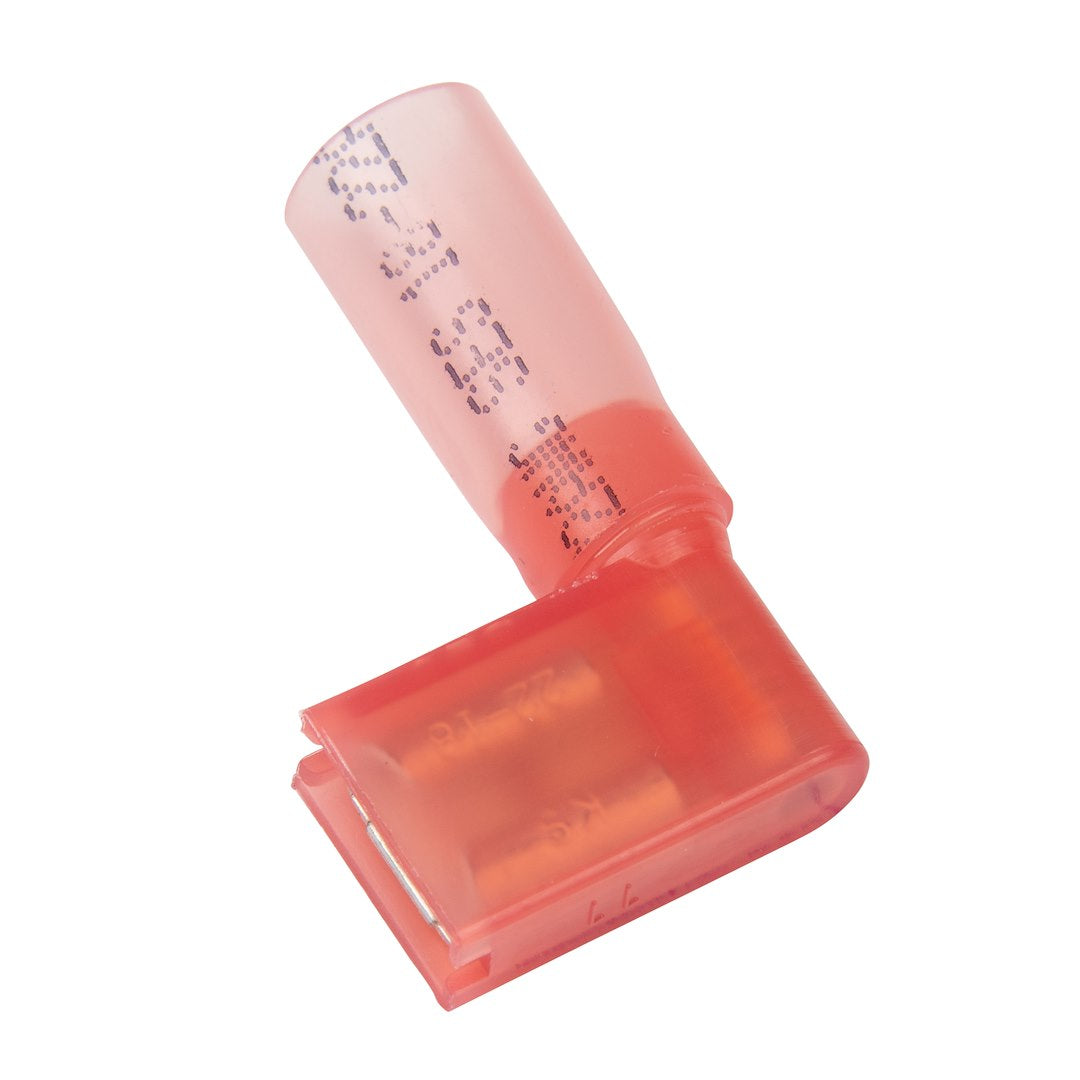

If you've ever tried to land a spade connector on a terminal that sits flush against a bulkhead, you know the problem. A straight quick-disconnect wants to stick straight out, and there's no room for it. That's exactly what Ancor's 1/4 inch heat shrink flag disconnect solves. The tab comes off the wire at a 90-degree angle, so the connection lays flat and tucks in tight behind a panel, inside a console, or up against the back of a switch. This pack gives you three female flag disconnects sized for 22 to 18 gauge wire.

These are Ancor Marine Grade terminals, and that matters more on a boat than most folks realize. The barrel is tinned copper, not bare copper. Bare copper looks fine on day one, then the salt air gets into it and you start chasing green corrosion and voltage drop a season later. Tinned copper shrugs that off. It gives you low electrical resistance and real corrosion protection, which is the whole point of using marine wire and marine terminals instead of the automotive stuff from the parts store.

The insulation is adhesive-lined heat shrink, and that's the feature that earns its keep out here. You crimp the terminal onto stripped wire the same way you'd crimp any disconnect. Then you hit the barrel with a heat gun. The shrink tube pulls down tight, the adhesive inside melts and flows around the wire, and when it cools you've got a sealed, water-tight connection with built-in strain relief. No bare metal for spray to reach. No wicking up the strands. It's the difference between a splice that survives a few years in a bilge and one that doesn't.

The 22 to 18 gauge range covers a lot of the small-conductor wiring on a boat. Think nav light runs, bilge pump switches, electronics power leads, gauge senders, and accessory circuits. Anywhere you want a clean disconnect so you can pull a component for service without cutting wire. The 1/4 inch female tab mates to a standard 1/4 inch male blade, so it drops right into the quick-connect fittings you already find on switches, breakers, and a lot of marine accessories.

One note on sizing. These are made for 22 to 18 gauge conductors, so match the wire to the terminal. Too small a wire in too big a barrel won't crimp tight, and forcing heavier wire in defeats the seal. If you're running larger gauge for a windlass, a big pump, or a battery circuit, step up to the matching size in the same terminal family. Right terminal, right wire, every time.

Why a flag style instead of a standard straight disconnect? Space. When a terminal has to sit in a shallow cavity or right against a flat surface, the 90-degree flag geometry keeps the wire running parallel to the mounting surface instead of poking out into thin air. It's a small thing until you're the one trying to close a switch panel that won't quite seat because a straight connector is in the way.

For a clean install, strip back the right amount of insulation so the conductor fills the barrel without a long bare tail, crimp with a proper ratchet crimper, then shrink from the center out so trapped air escapes the ends. Give it a gentle tug test when it cools. Done right, one of these will outlast the accessory it's feeding. Pack of three, so you've got spares for the next project or a matched set for a small wiring job. Keep a few in the boat bag and you'll reach for them more than you'd guess. They're cheap insurance against a corroded connection that leaves you with a dead pump or a dark nav light at the worst possible moment.
