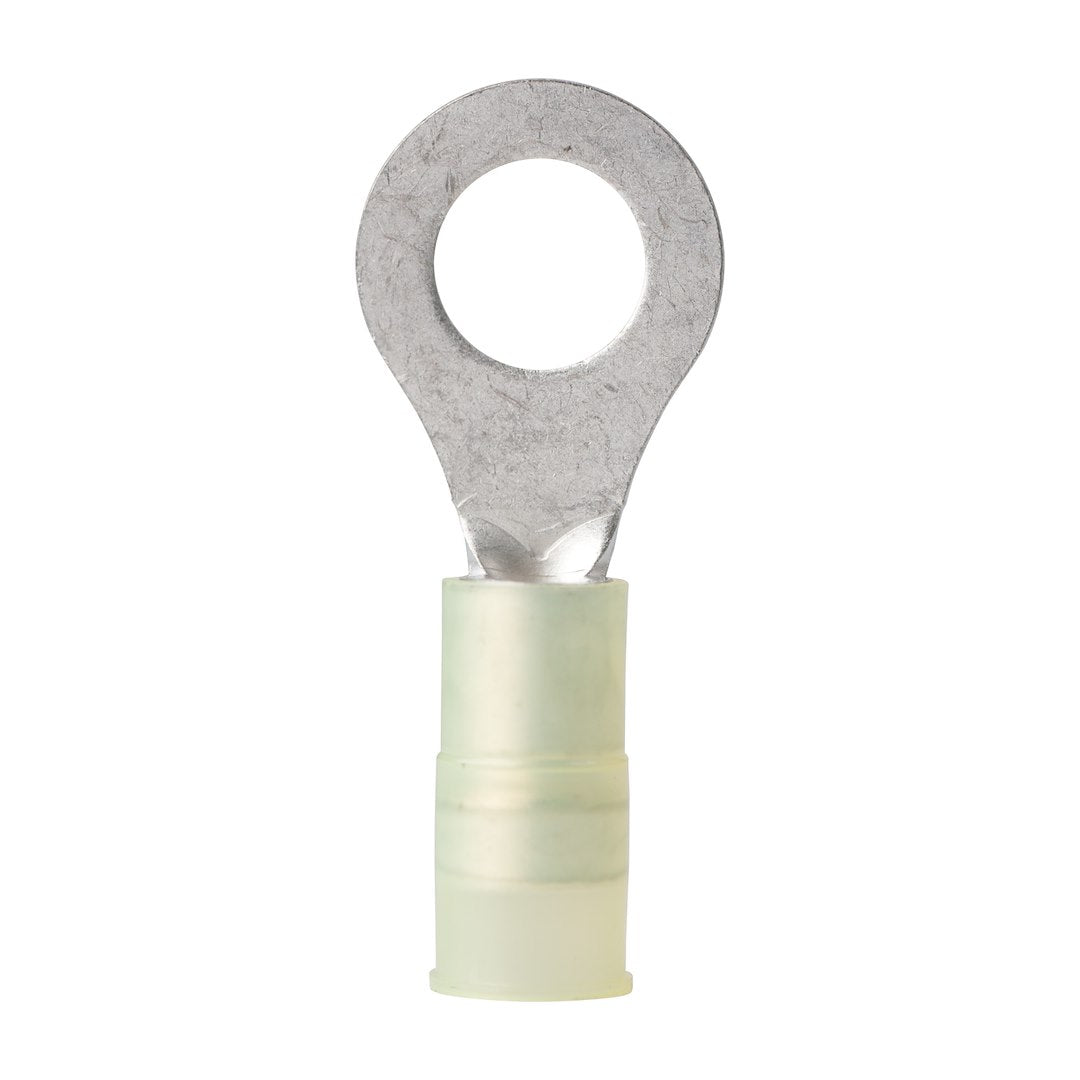

Ancor 230225 5/16 Ring Terminal 12-10 AWG Tinned 4-Pack

The Ancor 230225 is a 5/16-inch ring terminal built for 12 to 10 gauge wire, and it's one of those small parts that quietly decides whether your electrical system holds up out on the water. You get four in a pack. Each one is a tinned copper barrel with a nylon insulated sleeve, sized to land cleanly on a 5/16-inch stud or screw. If you've ever chased down a corroded ground lug or a loose battery accessory connection, you already know why the little stuff matters.

Here's the thing about marine wiring. Salt air, humidity, and spray will eat bare copper alive. A plain hardware-store terminal might look fine the day you crimp it, but a season later the copper has gone green and the connection resistance climbs. That's where the tinning comes in. Every strand of copper in this terminal carries a tin coating, so the metal that actually does the work is sealed against moisture and galvanic attack. It's the same reason we steer boaters toward tinned wire for anything below deck or near the bilge. Tinned copper just lasts.

The 5/16-inch ring is the larger end of the common stud sizes. You'll see it on battery terminal studs, busbars, ground blocks, battery switches, and the heavier accessory posts where a smaller ring would rattle around or won't clamp down properly. A ring terminal is the connection you want anywhere vibration is a factor, because unlike a spade or a fork, the ring can't shake loose off the stud. The nut has to come all the way off before the wire lets go. On a boat that pounds through chop all day, that closed loop is cheap insurance.

This terminal is rated for 12 to 10 gauge wire, which covers a big slice of a typical DC system. Think bilge pumps, livewell pumps, nav lights, electronics ground runs, fish finders, stereo power leads, and plenty of accessory circuits in that 10 to 30 amp neighborhood. If you're wiring a new pump or re-terminating a ground that's seen better days, this is the size that fits the bill. Match the terminal gauge to your wire gauge and you get a crimp that grips the full bundle of strands without crushing them or leaving them loose.

The insulation is nylon, not vinyl, and that's a meaningful upgrade. Nylon handles abrasion and takes a harder crimp without splitting, so the sleeve stays intact even when you really lean on the ratchet crimper. It also has a wider temperature range, which matters in an engine bay or anywhere the wiring runs warm. The yellow color follows the standard 12-10 gauge code, so at a glance you and the next person to open that panel can read the wire size right off the terminal.

Crimping these is straightforward. Strip back about a quarter inch of insulation, slide the bare conductor into the barrel until it seats, and crimp with a proper ratcheting tool sized for insulated terminals. You want the strands to fill the barrel and the insulation grip to bite the jacket. Give it a firm tug after. A good crimp won't budge. For the most weatherproof result on an open boat, a lot of us add a bit of adhesive-lined heat shrink over the back of the sleeve to lock out water entirely, though the nylon sleeve already does a solid job on its own.

Who's this for? Anybody doing their own rigging, a repower, a new electronics install, or just keeping a tackle box of the right terminals on the boat for the inevitable fix. Four to a pack is enough for a small job or a couple of spares in the toolbox. And because it's Ancor, you're getting a terminal built to marine standards, not a generic bulk part repackaged for the boat aisle. When you're wiring something that has to work when you're miles from the ramp, that difference is the whole point.
