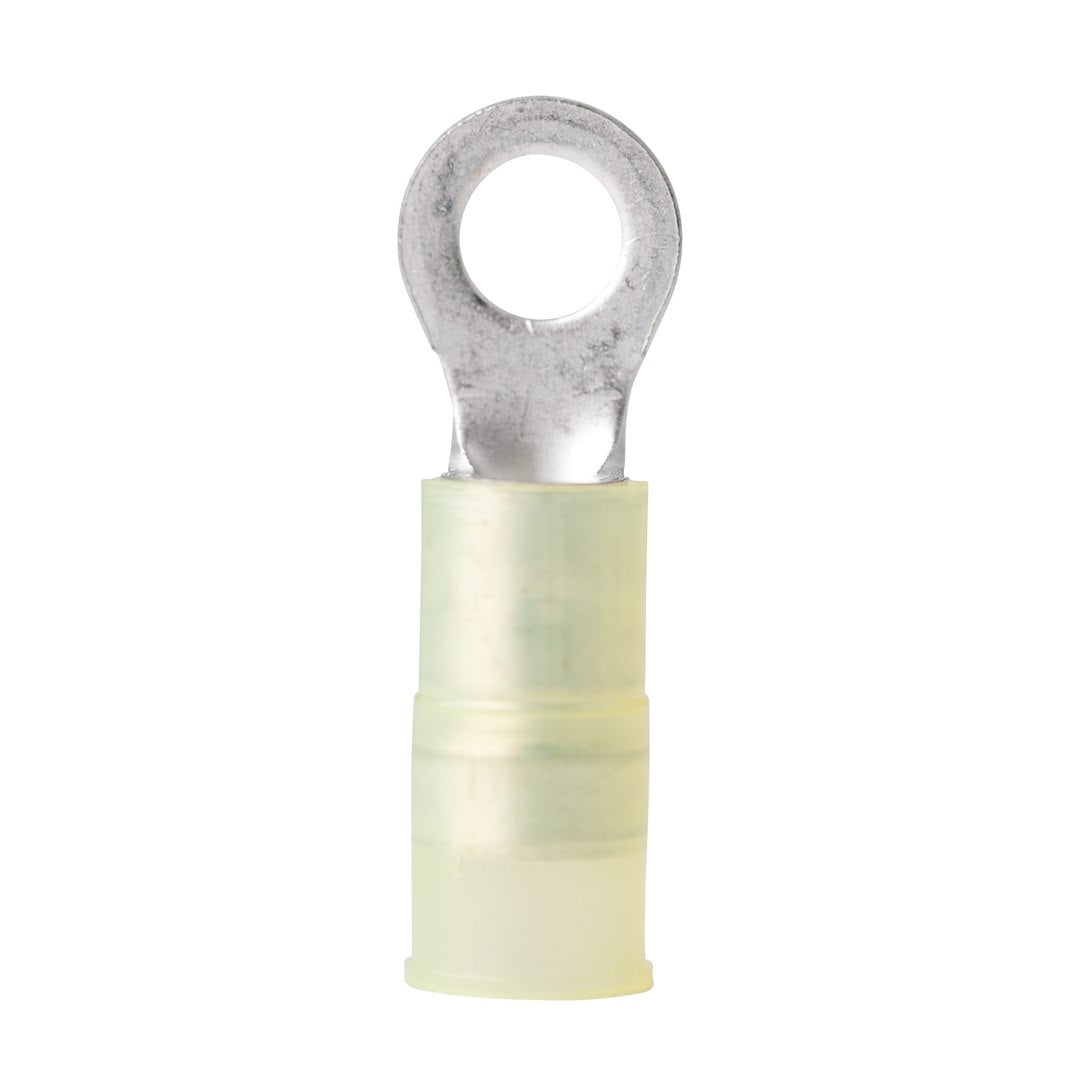

Ancor 230223 #10 Ring Terminal 12-10 AWG, 5-Pack

These are Ancor's #10 ring terminals, built for 12-10 gauge wire and sold five to a pack. Simple part, but the kind you reach for constantly once the wiring starts. A ring terminal lands a wire onto a stud or screw, a bus bar, a battery switch, a terminal block, or a ground post, and the closed ring shape means the connection stays put even if the fastener backs off a little. Slide the ring over the stud, snug the nut, and you've got a clean mechanical connection that isn't going anywhere.

What sets these apart from hardware-store terminals is the tinned copper. Ancor plates the copper barrel with tin, and on a boat that matters more than almost anything else. Bare copper and salt air don't get along. Give it a season or two and you'll find green corrosion creeping up under the insulation, resistance climbing, and a connection that used to be solid starting to act flaky. Tinned copper shrugs that off. The tin coating seals the copper from moisture and salt, so the terminal keeps conducting cleanly for years instead of months. If you've ever chased down a corroded ground on a bilge pump or a nav light, you already know why that's worth the few extra cents per terminal.

The fit here is 12-10 AWG wire to a #10 stud. That covers a huge chunk of typical boat wiring: bilge pumps, livewell pumps, nav and anchor lights, electronics power leads, accessory circuits, small pumps, and blowers. If you're running 12 or 10 gauge to a screw terminal or a stud, this is the ring you want. The nylon insulation sleeve grips the wire jacket and gives you strain relief right at the crimp, which is exactly the spot where vibration likes to fatigue a wire over time. Nylon also handles heat and abrasion better than the thin vinyl you'll find on bargain terminals.

Installing them is straightforward. Strip about a quarter inch of insulation, slide the bare conductor into the barrel until the wire bottoms out, and crimp with a proper ratcheting terminal tool sized for insulated connectors. A good crimp does two jobs at once. It bites the copper strands for the electrical connection, and the insulation grip clamps the jacket for mechanical strength. Give the wire a firm tug afterward. It shouldn't move. If you want extra protection in a wet or splash-prone location, a dab of dielectric grease on the stud or a layer of adhesive-lined heat shrink over the barrel will keep moisture out for the long haul.

Five to a pack makes this a sensible grab for a specific job rather than a bulk bin you'll never finish. Rewiring a single pump, adding an accessory, or fixing a couple of tired grounds, this is the right quantity to keep on the bench without paying for a hundred you don't need. And because they're standard #10 ring terminals for 12-10 wire, they play nicely with the rest of a tidy marine electrical system, where everything lands on a labeled stud or bus bar instead of a nest of twisted-and-taped splices.

A quick word on what these aren't. They're not a sealed heat-shrink terminal out of the bag, so if you need a fully environmentally protected connection straight away, plan to add heat shrink or pick a heat-shrink version instead. And the gauge range is 12-10, so don't try to force 8 gauge into the barrel or crimp down on a single thin 16 gauge strand and expect a lasting hold. Match the terminal to the wire and the stud and these will serve you well.

Ancor has been building marine-grade wire and connectors for decades, and the whole line is designed around the realities of a boat: constant vibration, humidity, salt, and connections that have to stay reliable when you're miles from the dock. These ring terminals fit right into that system. If you're wiring to marine standards and want the connection to outlast the project, tinned copper and nylon insulation are exactly the spec you're after. Keep a pack in the toolbag. You'll use them.
