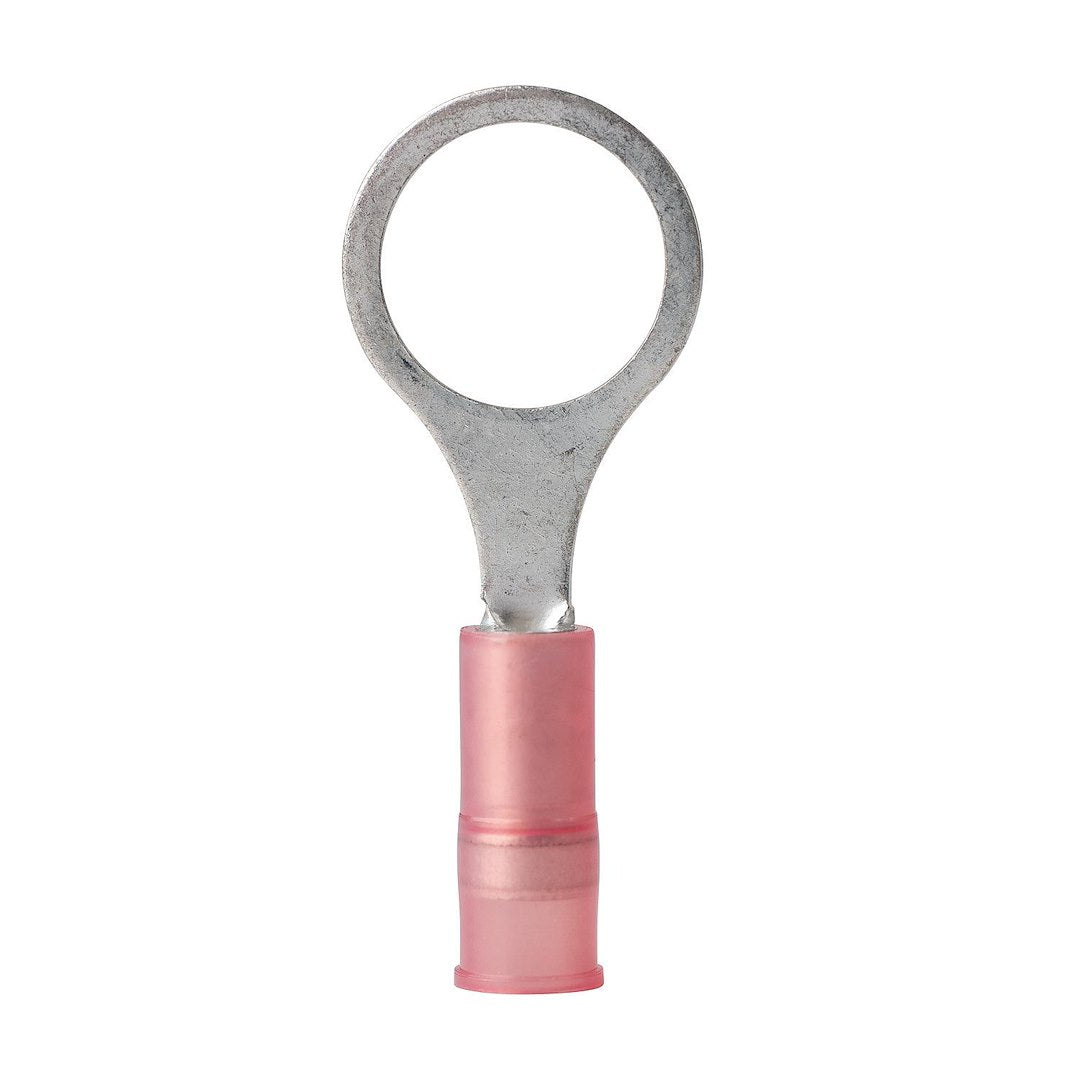

Ancor 230206 Ring Terminal 22-18 AWG 3/8in Red 5-Pack

These Ancor 230206 ring terminals are the small, unglamorous parts that quietly keep a boat's wiring honest. You get five nylon-insulated ring terminals sized for 22-18 AWG wire with a 3/8-inch stud hole. That's the combination you reach for on gauge senders, nav light runs, electronics power and ground, and the dozens of smaller circuits that live behind the dash. Nothing flashy. Just a clean, reliable ring connection that lands on a stud and stays put.

Here's why the material matters out on the water. The conductor is tinned copper, not bare copper. Salt air and bilge moisture go after bare copper fast, and once a connector starts to corrode you get voltage drop, flickering lights, and gauges that read wrong. The tin plating on this terminal resists that corrosion and keeps the metal galvanically compatible with marine-grade tinned wire, so the whole connection ages at the same rate instead of one end eating the other. It's the difference between a joint you make once and a joint you're back fixing in two seasons.

The 22-18 AWG range covers a lot of a boat's lighter wiring. Think instrument and sender wires, LED courtesy and nav lighting, bilge switch signal leads, stereo remote wires, and small accessory circuits. If you've got a wire in that gauge window that needs to bolt down to a terminal block, bus bar, or ground stud with a 3/8-inch screw, this is the ring that fits. The red insulation isn't just color for looks either. Red is the standard code for 22-18 gauge connectors, so when you or the next person opens the panel, the color tells you the wire size at a glance.

Installation is straightforward crimp work. Strip the wire back, slide it into the barrel so the insulation seats under the nylon collar, and crimp with an insulated-terminal crimper set for the 22-18 range. The nylon insulation does double duty. It insulates the barrel, and it grips the wire jacket so the connection takes engine-bay vibration and trailer bounce without the strands fatiguing right at the crimp. Give every finished crimp a firm tug before you button up the panel. A good one won't budge.

These are UL 486C listed, which is the standard that covers splicing wire connectors, so you're not guessing about whether the terminal meets a recognized spec. For anyone wiring to ABYC practice, a properly crimped tinned ring terminal on tinned wire is exactly the kind of connection you want below deck. The 3/8-inch ring is a common size for larger ground studs and distribution blocks, so these fill a slot a lot of smaller terminals can't reach.

A five-pack is the right size for a specific job. Wiring in a new depth sounder, replacing the ground ends on a run of cabin lights, or refreshing the terminals on a switch panel that's seen better days. If you do a lot of rigging, it's worth keeping a few packs of different stud sizes in the kit so you're never stopped mid-job for want of the right ring. And because they're small and cheap, there's no reason to reuse a tired, green-tinged terminal when a fresh one costs pennies.

One honest note. A ring terminal is only as good as the crimp behind it and the wire in front of it. Pair these with marine-grade tinned wire, use the right crimp tool, and seal exposed connections where they'll see spray, and they'll outlast most of the gear they're feeding. Skip the crimp tool and twist them on by hand, and no connector on the market will save you. Do it right the first time and forget about it.
