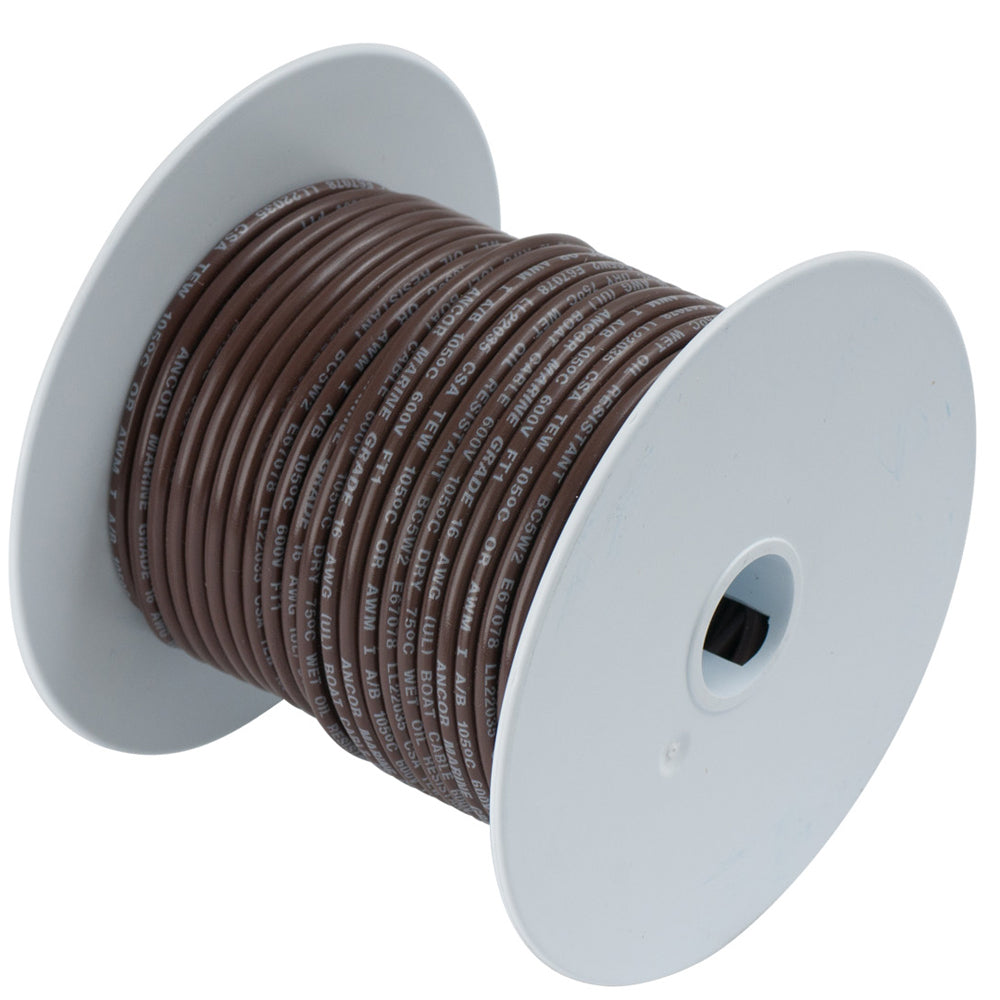

Ancor Brown 18 AWG Tinned Copper Wire - 500'

Ancor Marine Grade wire is the stuff you run once and forget about, in the best way. This is their brown 18 AWG on a full 500 foot spool, built for the low-amp DC circuits that live all over a boat. Think LED nav lights, courtesy lights, small gauges, panel indicators, and accessory feeds that don't pull much current but absolutely have to keep working when everything's damp and vibrating.

What separates marine wire from the cheap stuff at the hardware store is the tinned copper. Every strand gets a tin coating, so when salt air and moisture inevitably find their way into a connection, the copper underneath isn't corroding out from the inside. Bare copper turns green and brittle. Tinned copper keeps conducting. Ancor uses Type 3 stranding here, which is their ultra-flexible spec, so the wire pulls through tight conduit runs and bends around bulkheads without fighting you. It also shrugs off the constant fatigue from engine vibration and hull flex that eventually cracks solid or coarse-stranded wire.

The insulation is premium vinyl rated at 600 volts, which is enormous headroom for a 12 or 24 volt system. More important are the temperature and environmental numbers. It's rated 105 degrees C dry and 75 degrees C wet, so it holds up in a hot engine room, and it stays flexible all the way down to 40 below, whether you measure that in Fahrenheit or Celsius. It resists salt water, battery acid, oil, gasoline, heat, abrasion, and UV. That's the full list of things that kill wiring on a boat.

This wire exceeds UL 1426, ABYC standards, and the US Coast Guard Charter boat requirement under CFR Title 46. If your boat gets surveyed, or you're running a charter or commercial operation, that matters. It's the difference between passing inspection and rewiring under pressure.

A quick word on gauge. 18 AWG is meant for light loads. It's perfect for nav and anchor lights, cabin LEDs, small pumps rated under a couple amps, and instrument feeds. It is not the wire for a windlass, a livewell pump on a long run, or anything drawing more than about 10 amps continuous. For those, step up to 10 or 12 gauge and size it to the run length. When in doubt, go bigger. Voltage drop over a long thin run will dim your lights and cook your connections.

The brown jacket is there for a reason too. ABYC uses color codes so the next person into the panel, maybe you in five years, maybe a tech, can trace a circuit without a meter. Check your wiring diagram and match the color to the circuit before you pull 500 feet of it. It's a lot easier to plan the colors up front than to chase mystery wires later.

A few real-world tips from folks who run this wire every day. Mount the spool on a vertical reel dispenser before you start paying it out, because a 500 foot coil laid flat will tangle and kink on you. Terminate it with Ancor adhesive-lined heat-shrink connectors. A plain crimp can loosen under vibration, and the adhesive-lined shrink seals the joint against moisture at the same time. And where the wire passes through a bulkhead or runs near an engine, add chafe protection. Tinned copper is tough, but nothing survives rubbing bare against fiberglass at 4000 RPM for a season.

One honest note. A full 500 foot spool is a rigger's quantity. If you're wiring a couple of lights on a small center console, this is way more than you need and it'll sit in a locker. But if you're doing a full rewire, running a shop, or you just want a lifetime supply of quality tinned wire on hand, the spool is the cheapest way to get it per foot.
