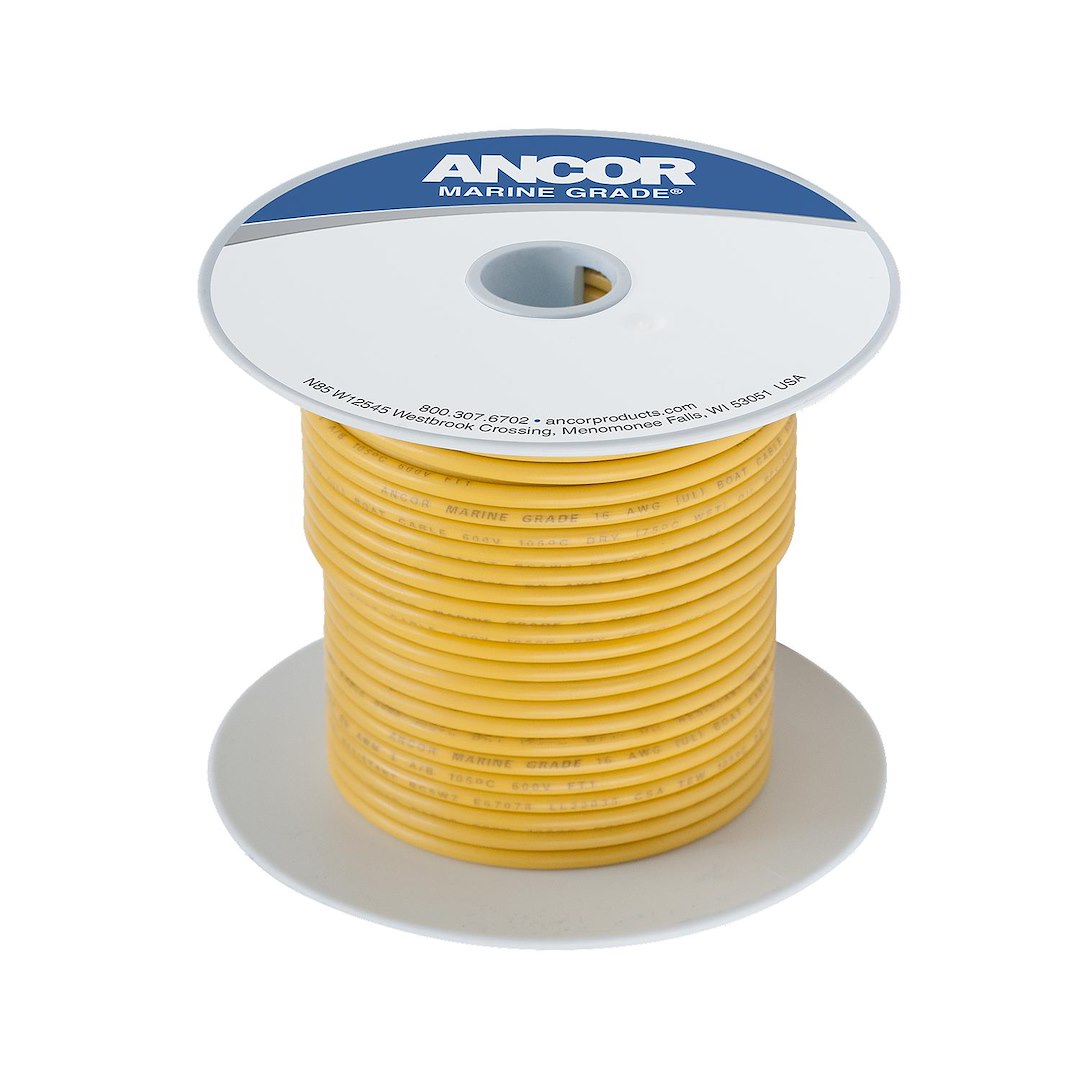

Ancor 107040 Marine Grade 12 AWG Tinned Wire, Yellow, 400 ft Spool

If you've ever chased down a corroded connection in a bilge two seasons after an install, you already know why marine grade wire matters. The Ancor 107040 is 12 gauge tinned copper primary wire on a 400 foot spool, colored yellow, and it's built for exactly the kind of damp, salty, vibrating environment that eats ordinary wire alive. This is the wire we reach for when we want a circuit to still be solid a decade from now.

The tinning is the whole point. Every strand of copper in this wire is coated in tin, which puts a barrier between the copper and the moisture that's always trying to work its way in on a boat. Bare copper starts to corrode and turn green at the ends the moment salt air gets to it, and that corrosion creeps up under the insulation where you can't see it, quietly adding resistance until a light dims or a pump gets weak. Tinned strands stay bright and hold their conductivity for years. It also makes the wire far easier to solder cleanly when you need to.

This is genuine marine grade primary wire, and the certifications back that up. It carries UL, CSA, ABYC, and US Coast Guard approvals, which matters for more than bragging rights. If your boat is USCG inspected, or you ever want an ABYC compliant survey to go smoothly, the wire in the boat needs to meet these standards. Building a circuit with certified wire from the start saves you from tearing it back out later.

Twelve gauge is one of the most useful sizes to keep aboard. It handles the mid-size DC loads you run into everywhere: cabin lighting circuits, livewell and bilge pumps, electronics power feeds, accessory runs, and horn or blower circuits. The one thing to plan for is voltage drop. On a 12 volt system, a long run to a 15 amp load can drop enough voltage to matter, so figure your round-trip length before you commit to a gauge. For short accessory runs 12 AWG is plenty. For a long haul back to a windlass or a high-draw pump, do the math and step up if the numbers say so.

The yellow color helps keep a wiring job organized. Under the ABYC DC color code, yellow is the recommended color for DC negative return conductors, so a lot of boaters standardize on yellow for the ground side and keep their positives in red. That said, plenty of folks use color simply to trace circuits, and yellow is easy to pick out in a dim engine space. Use it however your wiring diagram calls for, just keep it consistent so the next person who opens the panel can follow your logic.

A few install notes from doing this a lot. The stranded tinned conductor takes repeated flexing well, which is why it holds up in spots that vibrate or move, like a bilge pump lead or a windlass feed. Terminate it with adhesive lined heat shrink connectors and it seals moisture out at every joint, which is where wire usually fails first. When you strip it, use a ratcheting stripper sized for 12 gauge so you don't nick the strands. And on a spool this big, a rotating wire dispenser, or even a length of pipe through the center, saves you from the kinks and tangles that damage the conductor during a long pull.

The 400 foot spool is the size you want if you rig boats, do a lot of your own work, or just hate running out mid project. It's enough wire to handle a full rewire on a small boat or to keep one color stocked in the shop for years of repairs. Buy it once, pull from it as you go, and you've always got certified marine wire on hand when a circuit needs attention. That's the whole idea behind keeping a spool aboard.
