Actisense NMEA 2000 Micro Terminator, Male (A2K-TER-M)

If you're building or extending an NMEA 2000 network, this little Actisense terminator is one of those parts you can't skip. Every NMEA 2000 backbone needs exactly two termination resistors, one plugged into each end. Leave one off, or add a third somewhere in the middle, and the whole bus starts acting flaky. Dropped sensors, intermittent data, gauges that read fine one minute and blank the next. Get the termination right and the network just works.

Here's what's going on electrically. Each terminator carries a 120-ohm resistor, accurate to plus or minus 1% and rated at 500mW. Put one at each end of the backbone and the two resistors sit in parallel across the data pair, giving the network the 60 ohms of impedance the NMEA 2000 standard calls for. That matched impedance is what keeps the digital signal clean as it travels down the backbone, so every device on the bus, from your GPS to your engine gateway to your tank senders, hears the same clean data.

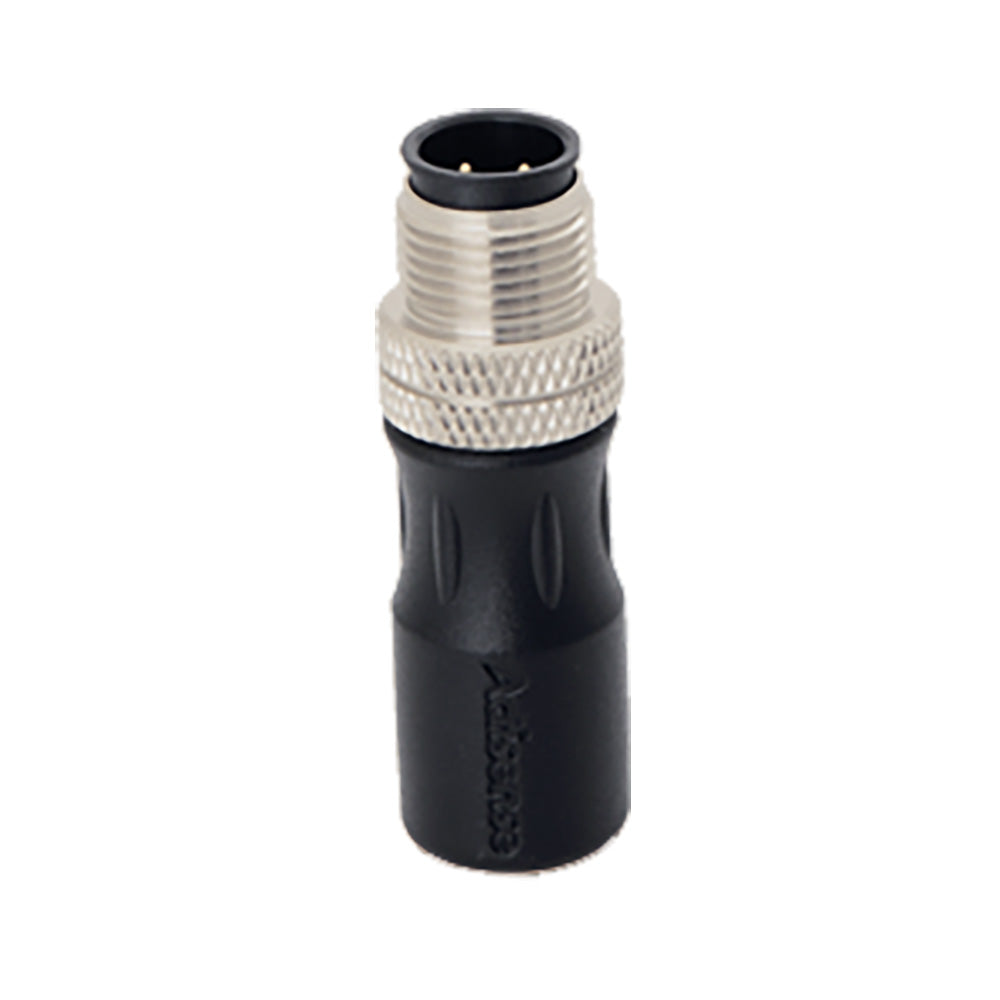

This is the male version, part number A2K-TER-M. It uses a standard M12 connector with the usual "A" polarization, so it threads straight into the female socket at the end of a Micro-style NMEA 2000 backbone. If your last tee or backbone cable leaves a female connector open at the end of the run, this is the terminator you want. Need to cap a male connector instead? Actisense makes the female version for that. Between the two you can terminate both ends of any Micro backbone.

Actisense didn't cut corners on the build. The male contact is brass with gold plating, so it makes a low-resistance connection that won't corrode in a damp bilge or a salty cockpit. The contact carrier is PA66 nylon with 30% glass fill for stiffness, the housing is solid PVC, and the screw cap is nickel-plated brass. There's a rubber O-ring seal inside, and once it's mated and the cap is hand-tight, the connection is rated IP67. That means it shrugs off spray, washdowns, and the occasional dunk. You don't need any tools to install it. Just push it onto the open connector and snug the threaded collar down by hand.

Because it's built for real boats, the temperature range is wide. It's rated to operate from -25C all the way to +70C, and it'll survive storage from -40C to +85C. That covers a hot engine room in July, a frozen helm in a northern winter, and everything in between. The power pair is rated to 60VDC and 4A, well within what an NMEA 2000 bus ever sees, so there's plenty of headroom. And at just 15 grams, it adds no real weight to the ends of your backbone.

One more thing worth knowing. NMEA 2000 shares its physical connector and cabling with the DeviceNet Micro-C standard, so these Micro terminators use the same M12 thread and pinout you'll find across the whole NMEA 2000 ecosystem. If you already run a Micro backbone, this drops right in. And if you're chasing a problem, an easy first check is to confirm you have exactly two terminators on the bus and that both are seated and tight. More than half the dead-network calls we take come down to a missing or loose terminator.

Who's this for? Anyone wiring up a new NMEA 2000 system, anyone extending an existing backbone with new tees, and anyone tracking down a network that's misbehaving because it was never terminated properly in the first place. It's a small, inexpensive part, but it's doing an important job. A marine network is only as reliable as its weakest connection, so it's worth using quality terminators from a company that's spent 20-plus years building NMEA 2000 gear. Order two if you're starting fresh, one male and one female, and you'll have both ends of your backbone covered.
