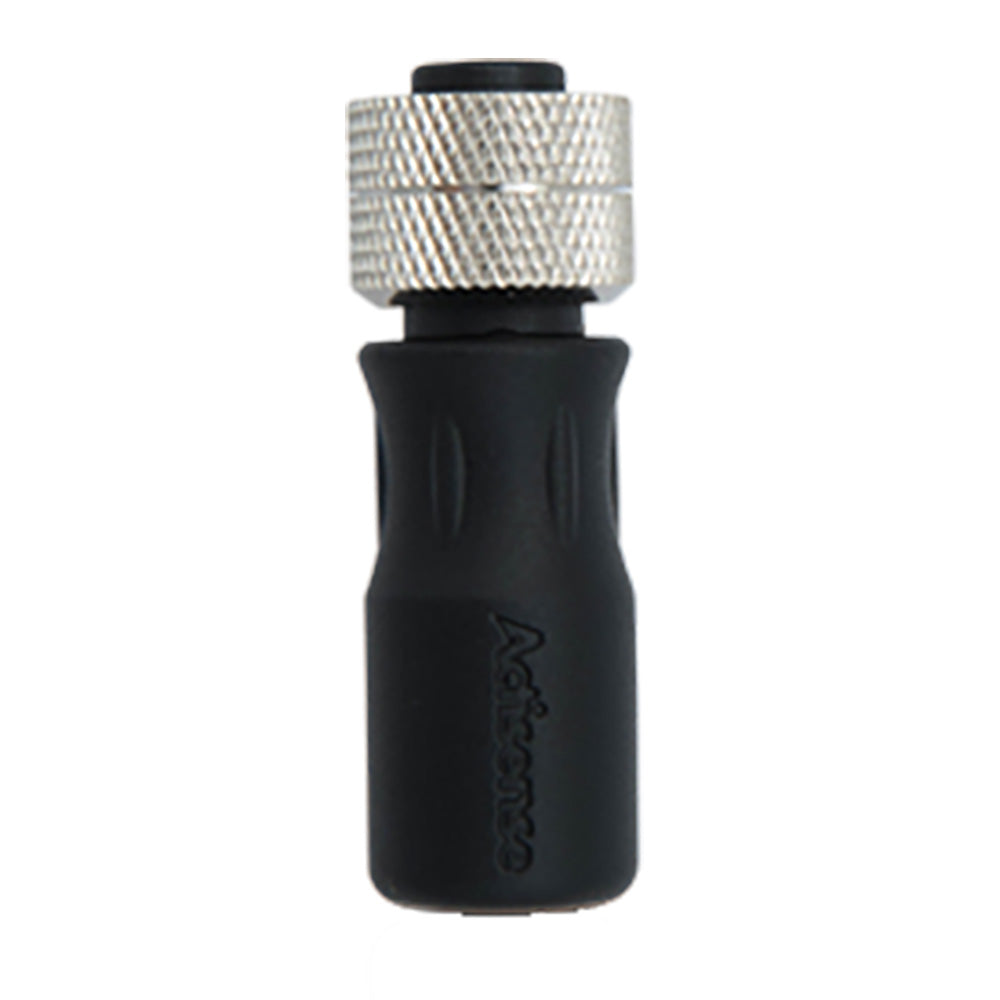

Actisense A2K-TER-F NMEA 2000 Micro Terminator, Female

If you've ever chased a phantom fault on an NMEA 2000 network, a device dropping off, sensors flickering, engine data going quiet for no reason, there's a good chance the backbone wasn't terminated the way it should be. NMEA 2000 is a bus, and a bus needs a resistor at each physical end to stop the signal from bouncing back down the wire. Miss one and the whole network can turn flaky. This is the female terminator, one half of that pair.

Inside the housing sits a single 120 ohm resistor, held to 1% tolerance and rated 500mW. Put one at each end of the backbone and the two 120 ohm resistors sit in parallel across the data pair, giving the network the 60 ohms of total resistance it's designed around. That's the number that keeps the CAN data readable from one end of the boat to the other. Get it wrong and you'll see the kind of intermittent gremlins that eat a whole afternoon at the dock.

Termination belongs at the two extremities of your backbone, never on a drop cable. Whichever connector is exposed at each end tells you which terminator you need. This female terminator mates to a male backbone connector. Its counterpart, the male terminator, plugs into a female port. You can't fudge the gender, so check the open ends of your backbone before you order. On a typical helm-to-transom run you'll end up needing one male and one female, one at each end.

Actisense built these to live outside. The contact is phosphor bronze with a gold plating for a low-resistance connection that won't corrode, carried in a glass-filled PA66 body. The screw cap is nickel-plated brass, there's a rubber O-ring seal, and the whole thing is PVC-housed and rated IP67 once it's mated. So it'll take a wash-down, a rail full of spray, a bilge that never quite dries out. The operating range runs from -25 C to +70 C, which covers just about any boat in any season.

Installing it is about as simple as marine wiring gets. Find the open connector at the end of your backbone, thread the terminator on, and hand-tighten the screw cap until the O-ring seats. No tools, no crimping, no power to cut. Building a fresh network from a starter kit? You'll want a pair, one male and one female. Extending an existing backbone and moving the end point? You'll re-use or replace the terminator at the new end. First boat wiring in a first sounder, or a full multi-display helm, it's the same part and the same steps.

The power pair is rated to 60VDC and 4A, well inside what a standard 12V N2K network ever puts across it, so nothing here is working hard. And because it's a passive resistor in a sealed shell, there's nothing to fail. No firmware, no LED, no settings. It does its one job and stays out of the way.

Not sure your network is terminated right? The symptoms are telltale. Devices that appear one minute and vanish the next. A display that reads no data on a sensor you know is wired and powered. Gauges or targets that stutter. Any of that on an otherwise healthy install, and the first thing a good tech checks is the terminators, one at each end, correct resistance, seated tight. It's cheap insurance against a lot of head-scratching.

This terminator is part of the wider Actisense Micro connection range, so it seats straight onto Actisense A2K Micro backbone cable and connectors without adapters. The M12 mating thread and standard A-coded polarization follow the NMEA 2000 Micro standard, so it fits a standard Micro backbone end the way you'd expect. Two of these, or one of each gender, and your backbone is properly closed off at both ends.
