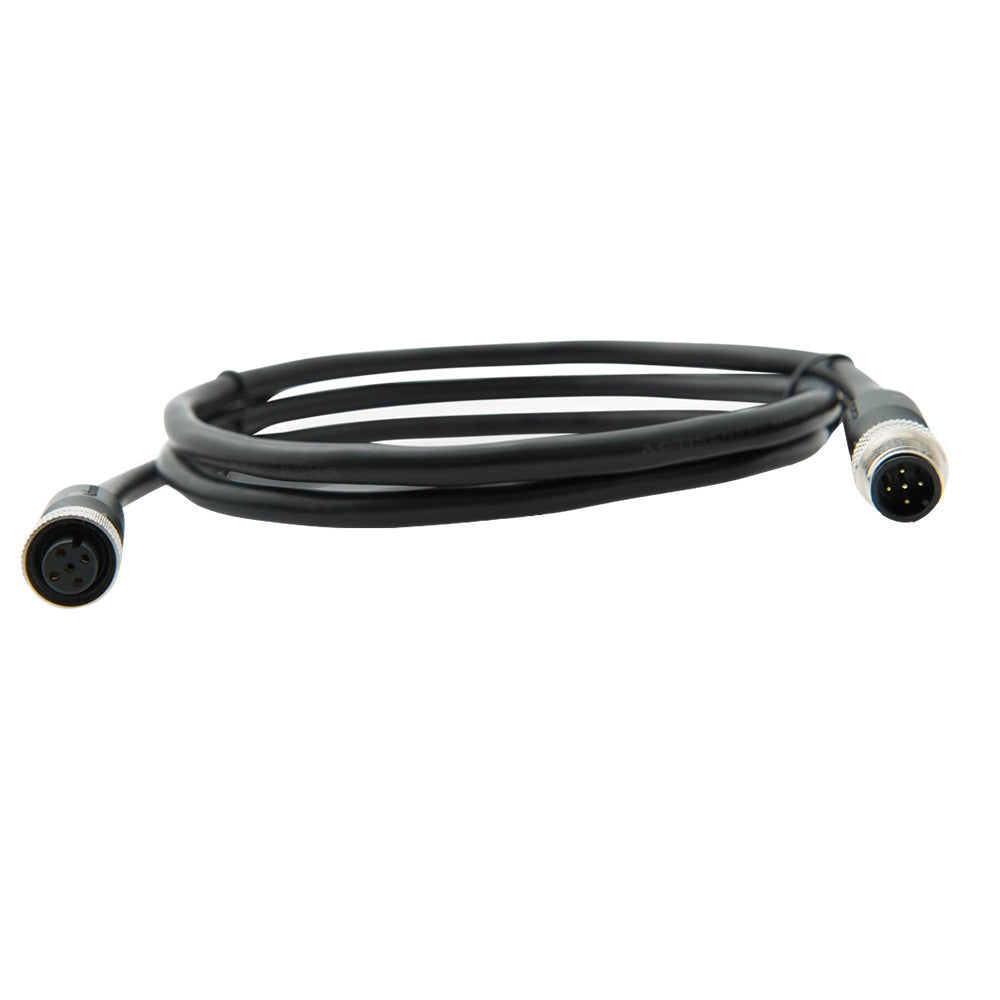

Actisense A2K-TDC-6M NMEA 2000 Micro Cable Assembly 6M

The Actisense A2K-TDC-6M is a 6-meter NMEA 2000 Micro cable assembly, and it does one job extremely well: it carries power and data between the pieces of your boat's network without giving you a reason to think about it again. You can run it as a drop cable off an existing backbone, or splice it into the middle of a run to extend the backbone itself. Same cable, either role.

Actisense calls this its Lite (Micro) cable, and the Lite part refers to the gauge, not the build quality. Inside the black PVC jacket you get five conductors: a 22 AWG power pair, a 24 AWG data pair, and a 22 AWG drain, all 19-strand tinned copper. The drain ties into a 37 AWG tinned-copper braid that shields the signal, power, and ground lines from the radio-frequency noise that lives on every boat, and it keeps the cable from radiating noise of its own. That shielding is the difference between a network that just works and one that drops sensors every time the VHF keys up.

The connectors are where a marine cable earns its keep. Each end uses a standard M12 fitting with A-polarization, so it mates with any NMEA 2000 Micro-C port. The male contacts are gold-plated brass, the female contacts gold-plated phosphor bronze, and both sit in a black PBT carrier. A nickel-plated brass screw cap and a black rubber O-ring seal pull the joint down to an IP67 rating once it's mated and hand-tightened. Gold on the contacts matters here. It's what keeps resistance low and corrosion out after a couple of seasons in a damp console or a wet bilge locker.

Sizing your run is the part worth getting right the first time. NMEA 2000 Lite cable can build a backbone up to 100 meters long. Any single drop off that backbone can be up to 6 meters, which is exactly what this cable gives you, and the total of every drop on the network can't exceed 72 meters. So if you're feeding a masthead wind sensor, a rudder reference, or an engine gateway that sits well away from your trunk line, this 6-meter length reaches it. If the device is closer, grab a shorter A2K-TDC and save yourself the coil. There's no penalty for a tidy install, and excess cable stuffed behind a panel is just future troubleshooting you don't need.

Electrically the cable is rated for 3 A at 60 VDC, which covers the power budget of a normal sensor-and-display network. Long drops feeding several powered devices are where you start watching voltage, so keep power-hungry gear close to the backbone and let the low-draw sensors ride the longer spurs. The jacket measures 6.85 mm across and the whole 6-meter assembly weighs about 430 grams, so it routes through a rigging conduit or a cable gland without fighting you.

It's built for the environment too. The assembly is rated from -20°C to +70°C in operation and down to -40°C for storage, so a cold snap on the hard won't hurt it, and a hot engine room won't either. Only Actisense UL-certified cable goes into these assemblies, which is why they carry the same reassurance whether you buy one or wire an entire helm with them.

A quick tip from the install side: seat each connector fully and rock it gently if the first turn feels tight, then run the screw cap down by hand until it stops. Don't force it with pliers. In a spray-prone location, a dab of dielectric grease on the O-ring and threads before you mate the joint keeps the IP67 seal doing its job season after season. Do that, route the cable away from sharp bends right at the connector, and this drop will outlast most of the electronics hanging off it.

Who's this for? Anyone building or extending an NMEA 2000 network on a powerboat, sailboat, or trawler who wants a molded, sealed connection instead of a field-terminated gamble. It isn't the cable you cut to length or repair in place. It's the known-good, plug-and-go span you reach for when you want the network done right, and for that job it's about as sure a thing as marine wiring gets.
