Actisense A2K-TDC-3M NMEA 2000 Micro Cable Assembly - 3M

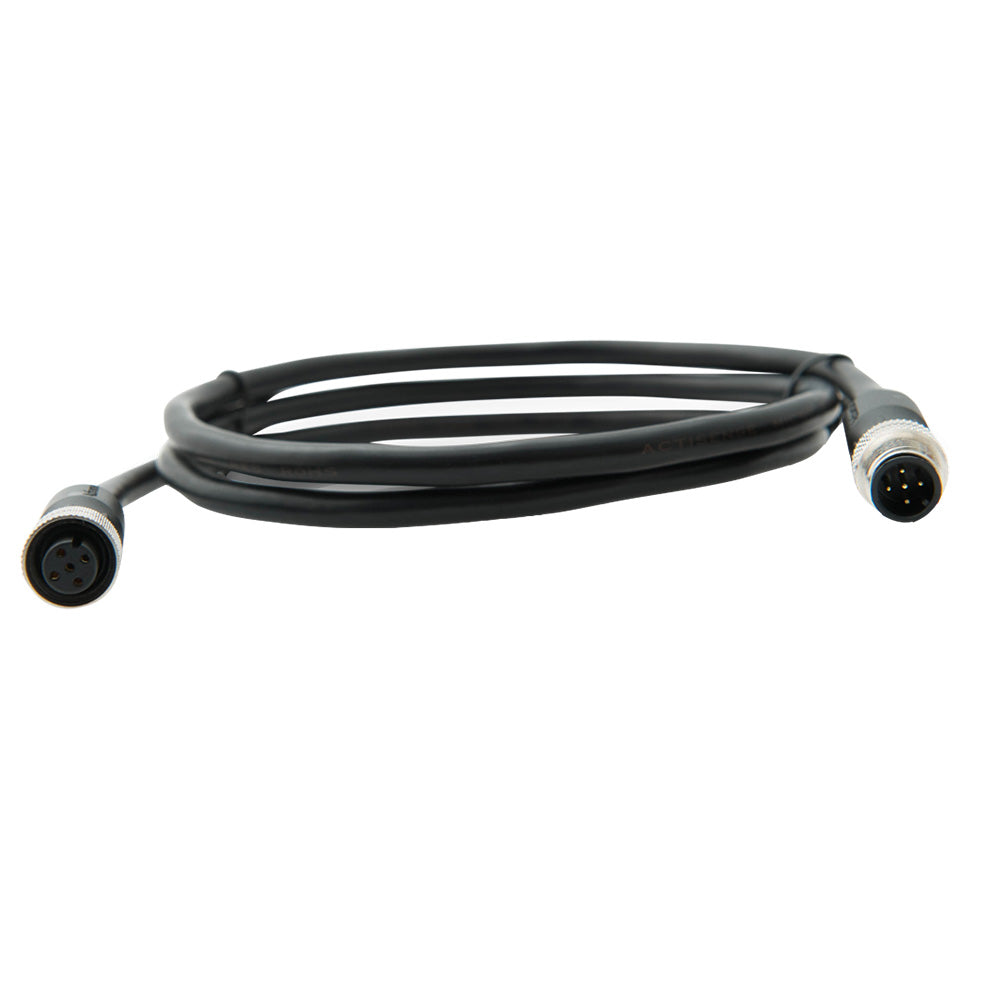

The Actisense A2K-TDC-3M is a 3 meter NMEA 2000 Micro cable assembly, and it's one of those parts you don't think about until your network won't talk. This is the Lite-grade cable Actisense builds with their own UL-certified wire, terminated with a male connector on one end and a female on the other, ready to drop straight into an existing backbone or extend one. No field termination, no crimping, no guesswork. You pull it, you thread it, you tighten the collars, and you're done.

Here's how it fits into a real network. A 3 meter run is long enough to reach from a backbone tee up to a helm display or sensor on most boats in the 25 to 35 foot range, without leaving a pile of slack coiled behind the dash. Use it as a drop cable and remember the rule: any single drop can be up to 6 meters from the backbone, and all your drops added together can't exceed 72 meters. Three meters keeps you comfortably inside that budget. You can also splice this into the middle of a backbone to add length, since Lite cable will carry a backbone up to 100 meters before you'd need to step up to heavier mini cable.

Inside the jacket there are five conductors doing the work. A power pair and a ground, two data wires for the CAN signal, and a drain wire bonded to the cable's braided shield. That shield is the part that matters on a boat full of alternators, VHF, and radar. It keeps radio frequency interference out of your data and keeps this cable from throwing noise back at everything else. The power pair is 22 AWG tinned copper, the data pair is 24 AWG, and every strand is tinned so salt air doesn't turn your conductors green.

The connectors are standard M12 "A"-coded with gold-plated contacts, brass on the male side and phosphor bronze on the female. Gold plating is cheap insurance against the corrosion that kills marine connections. Threaded collars pull the O-ring seal tight for an IP67 rating when mated, so a wet bilge or a wave over the bow won't find its way into the pins. Rated for 3 amps at 60 volts DC, it handles a full N2K bus with room to spare. It's built to live outdoors too. Rated to run from -20C to +70C and stored down to -40C, so it won't stiffen up and crack on a cold spring launch or go soft in a hot engine room.

A couple of things worth knowing from folks who've rigged these. First, an NMEA 2000 network needs a terminating resistor at each end of the backbone. This cable is a drop or an extension, not a terminator, so make sure both ends of your backbone are capped or you'll chase intermittent dropouts that look like a bad cable but aren't. Second, watch the pins when you're pushing a connector through tight conduit. The Micro pins are fine and can bend if you twist while you shove. Straighten them first, line up the keyway, then thread. Third, vibration on a hard-running boat can back off a hand-tightened collar over a season, so it's worth a quick re-torque check at your spring commissioning.

On a sailboat, this length tends to reach most mast-base junctions if you route it alongside the existing mast wiring. On a powerboat it's the clean choice for a transducer, a GPS antenna, or an engine gateway that sits a few feet off the trunk. It's the same connector system across the whole Actisense NMEA 2000 range, so it mixes freely with their tees, terminators, and power inserts. Buy the length you need, keep your drops short, and the network just works.
