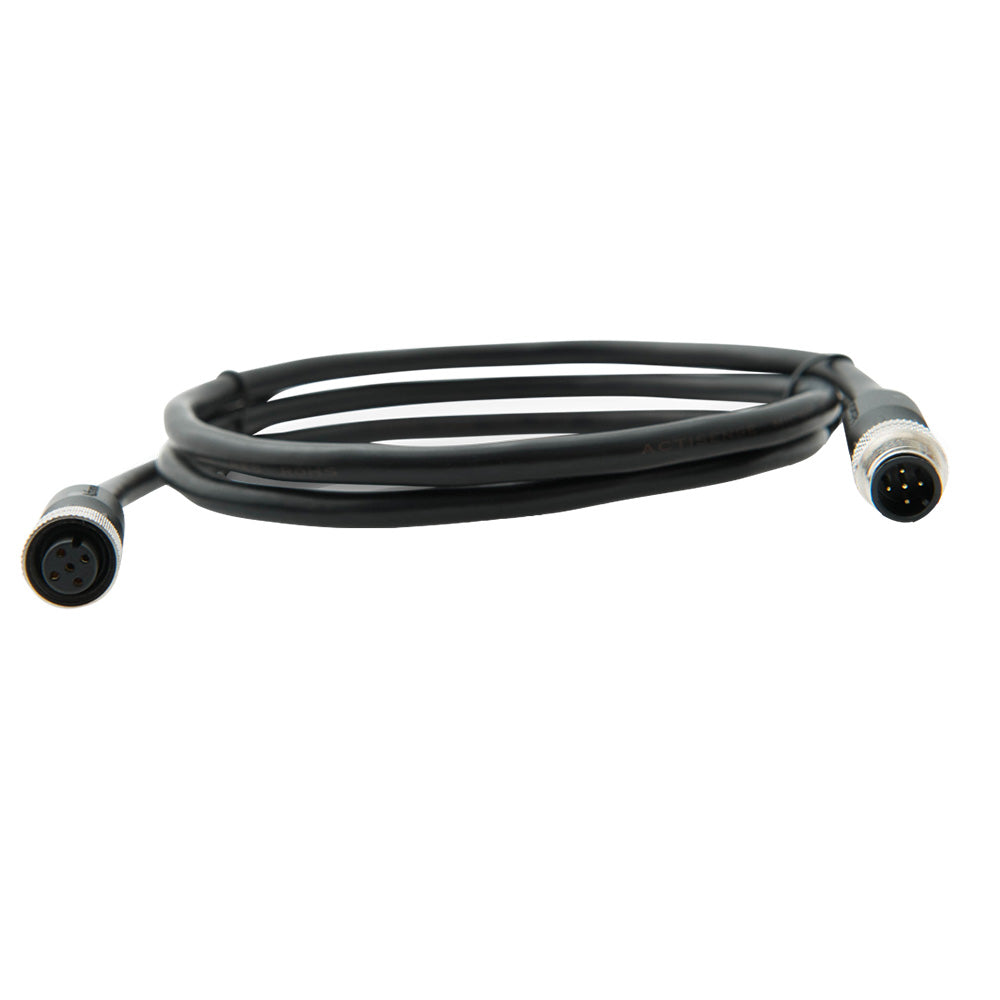

Actisense A2K-TDC-1M NMEA 2000 Micro Cable Assembly, 1m

The Actisense A2K-TDC-1M is a 1-meter NMEA 2000 micro cable, and it earns its keep two ways. Run it as a drop cable from your backbone to a single instrument, or splice it into the middle of a run to extend the backbone itself. Same cable, both jobs. Actisense builds these Lite assemblies with their own UL-certified cable and overmoulds the M12 connectors on each end, so what shows up is a finished, sealed cable ready to twist on. No field-terminating, no crimping, no guessing.

Inside the jacket you get five conductors. A power pair and a ground, two data wires, and a drain. The drain ties to a tinned-copper braid shield that wraps the bundle, and that shield is what keeps engine noise, VHF, radar, and other sources of radio-frequency interference out of your data. It also stops the cable from radiating noise back into everything else at the helm. That shielding is the difference between a network that reads clean at anchor and one that drops data the moment you throttle up.

The connectors are standard M12 micro with A polarization, so they key correctly to any NMEA 2000 device and only go together one way. Male contacts are gold-plated brass, the female side is gold-plated phosphor bronze, and the whole coupling seals to IP67 once it's mated, with a rubber O-ring and a screw-lock ring. A couple of install habits go a long way here. Line the pins up before you twist so you don't bend one, then run the locking ring down hand-tight. And after the boat has had a season of vibration, go back and check those rings. A ring that has backed off a quarter turn is the usual culprit behind an intermittent data fault nobody can find.

If you're planning the network layout, the rules are simple. Actisense Lite cable can build a backbone up to 100 meters long. Any single drop off that backbone tops out at 6 meters, and the total of every drop added together can't exceed 72 meters. This 1-meter length is a drop cable at heart, sized for an instrument sitting close to the backbone, a display at the helm, a sensor a step away from a tee. Keep drops as short as the install allows and the whole bus stays healthier. The cable is rated for 3 amps at 60 volts DC, which is plenty for a drop leg, but on a busy network keep an eye on total load and where your power gets inserted so nothing on the far end sees a voltage sag.

Who's this for? Owners of 25 to 35 foot boats adding one more instrument to an existing NMEA 2000 network, or anyone stretching a backbone a meter to reach the next tee. It isn't a standalone network kit. You still need terminators at both ends of the backbone, and Actisense A2K-TER terminators are the matched pair for that job. Skip them and you'll chase reflections and dropouts, especially once you mix a few devices on the bus.

A few real-world notes from the water. The PVC jacket stiffens up in genuine cold, so if you're routing through tight bilge conduit on a frosty morning, warm the cable first and it feeds a lot easier. For boats that see hard saltwater exposure, a dab of dielectric grease on the contacts before you mate them slows corrosion at the pins. And the cable handles a wide temperature swing on its own, rated -20C to +70C in operation and down to -40C in storage, so it's comfortable in an open console, an engine space, or a trailer over the winter.

This is the quiet, boring part of a good electronics install, and that's exactly what you want. Actisense has spent two decades on NMEA interfaces and it shows in the connector fit and the sealing. Buy the right length, keep your drops short, terminate the backbone properly, and this cable will do its job for years without asking for your attention again.
