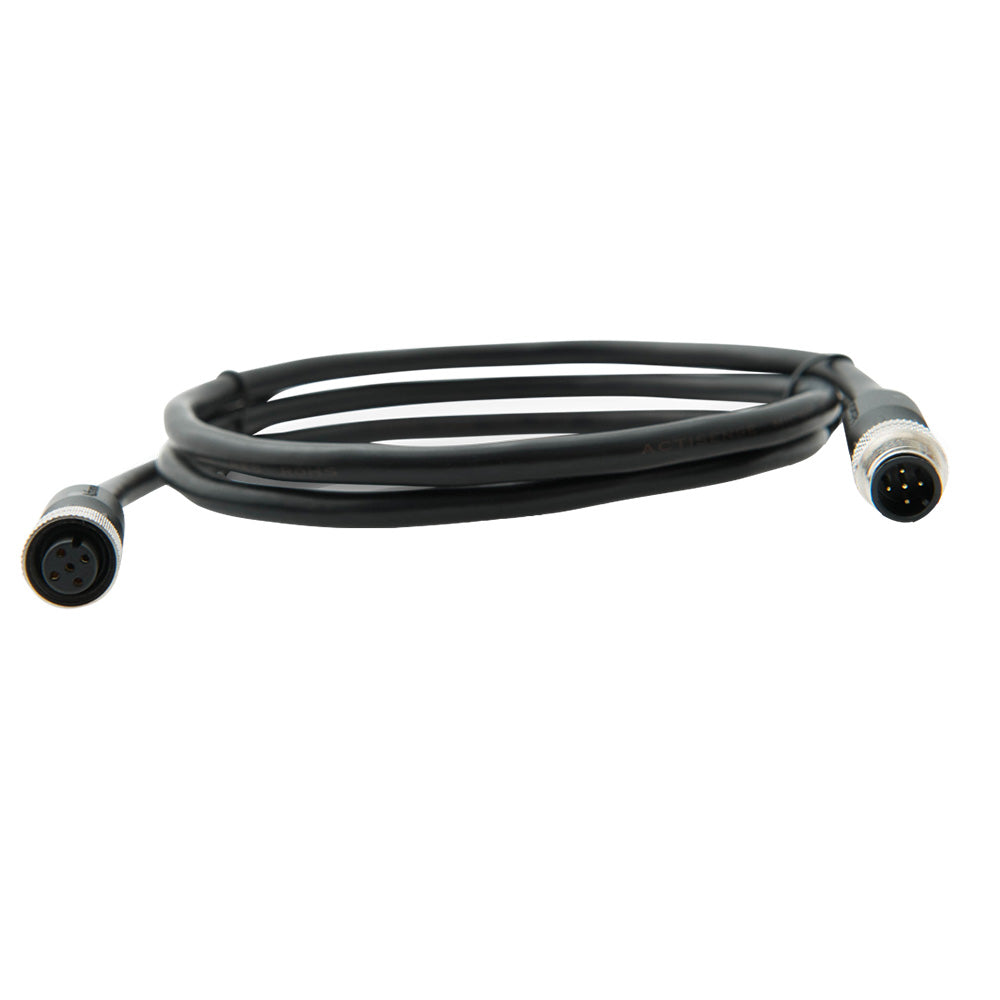

Actisense A2K-TDC-0M5 NMEA 2000 Micro Cable Assembly 0.5M

The Actisense A2K-TDC-0M5 is a half-meter NMEA 2000 Micro cable assembly, and it's one of those small parts that quietly makes or breaks a clean network install. You can run it two ways. Drop it off a tee to feed a single display, sensor, or GPS antenna, or splice it inline to add a short length to your backbone. Same cable, both jobs. That flexibility is why Actisense calls this the Trunk and Drop Cable.

Half a meter is short on purpose. When you've got a sensor sitting right next to the backbone, or two tees close together at the helm, you don't want a meter of cable coiled up behind the dash collecting slack. This length keeps the run tidy and the voltage drop low, which matters more than folks expect on a 12V boat where every device on the bus shares the same power budget.

Inside the jacket there are five conductors. A power pair, a data pair, and a drain wire tied to the cable shield. The shield is the part that earns its keep out on the water. It wraps the signal, power, and ground wires so radio noise from a VHF, a radar, or an inverter doesn't scramble your data, and it keeps the cable from radiating interference of its own. The power pair is 22 AWG, the data pair is 24 AWG, and both use 19-strand tinned copper so they flex without work-hardening and shrug off the corrosion that kills bare copper in a salt environment.

The connectors are standard NMEA 2000 Micro, the M12 style with the threaded screw cap. Male on one end, female on the other, so cables and tees chain together the way the standard intends. Contacts are gold-plated, the male in brass and the female in phosphor bronze, which is the combination that holds a low-resistance connection season after season. Thread the caps down finger-tight until they seat and the mated pair is rated IP67, so a wet bilge or an open console in the rain won't get into the pins.

A quick word on network layout, because this cable lives inside NMEA 2000 rules. Your backbone can run up to 100 meters of Lite cable. If you need more than that, the middle of the bus gets extended with heavier Mini cable and the Lite sections stay under 100 meters each. Any single drop off the backbone can reach up to 6 meters, and the total of every drop on the network can't exceed 72 meters. Keep each drop as short as the layout allows. That's exactly the job a 0.5M assembly is built for.

Who's this for? Anyone building or expanding an NMEA 2000 network on a powerboat, sailboat, or center console. First-timer wiring a depth and speed sensor to a new multifunction display, or a seasoned cruiser adding an engine gateway to an existing bus. If the device has a Micro connector and you need a short, clean run, this is the cable. It pairs with any gear built to the NMEA 2000 Micro standard, so you're not locked into one instrument brand.

What it isn't: it's not a terminator, and it's not a power tee. A working backbone still needs a terminating resistor at each end and a power connection somewhere in the middle. This is the cable that carries data and power between them. And because it's a UL-certified Actisense cable, you're getting the same wire quality Actisense uses across their whole NMEA 2000 range, not a generic substitute.

Rated for 3A at 60VDC and built to run from -20°C to +70°C, with a storage range down to -40°C, it handles the temperature swings of a boat that sits through winter and bakes through summer. The jacket is a nominal 0.8mm PVC at roughly 6.85mm outer diameter, thin enough to route behind a panel but tough enough to take the abrasion of a rigging chase. Small part, but it's the connective tissue of a helm that talks to itself.
