Actisense A2K-PMW-F Rear Panel Mount NMEA 2000 Connector

The Actisense A2K-PMW-F is a female rear panel mount connector that lets you carry an NMEA 2000 network cleanly through a watertight bulkhead or panel. If you've ever tried to run a drop cable through the back of a helm pod or an electronics box and wanted a real sealed pass-through instead of a rubber grommet and a prayer, this is the part that does it right.

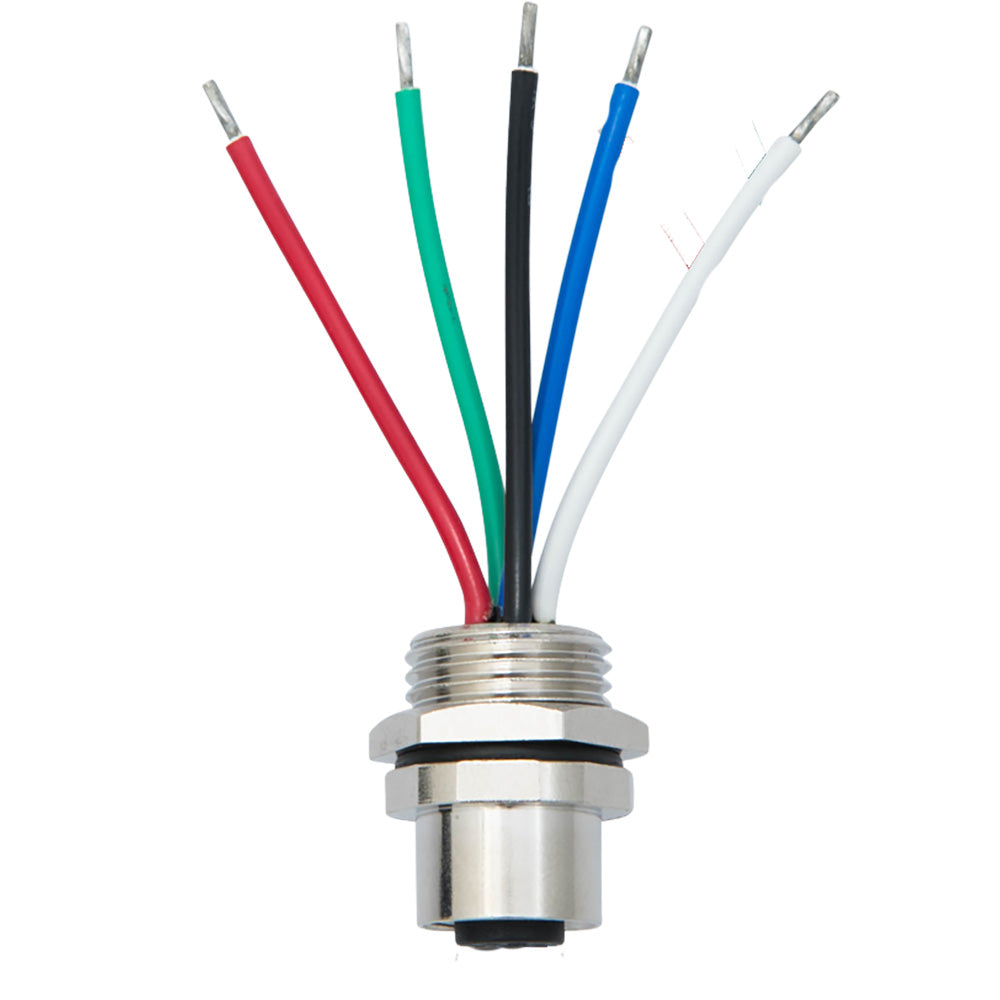

Here's the idea. You mount the connector body through a hole in your panel, tighten the PG9 locknut on the back, and you've got a proper M12 5-pin micro socket facing out. On the wet side you plug in a standard NMEA 2000 micro drop cable. On the dry side, the connector already has a short pigtail of 18 AWG wires, stripped and tinned, ready to land on your device or a terminal block. No field assembly of tiny pins. It's wired at the factory.

This one is the female version, so it takes the male end of an NMEA 2000 cable. Actisense makes a matching male panel mount too, but for a standard network drop feeding a display or sensor through a bulkhead, the female A2K-PMW-F is usually what you want. It also drops straight into the Actisense QNB-1 junction block. The female panel mount wired connector can replace any of the existing drop glands on the QNB-1 to give you a quick, pluggable connection point instead of a hard-wired gland.

Sealing is the whole point of a part like this, and it's rated IP67 when mated. That means once you've got a cable plugged in and the coupling ring tightened, the joint shrugs off spray, rain, and a temporary dunk. The contacts are brass with gold plating for a low-resistance connection that holds up to the vibration and damp you get on any boat. Housing and mounting nut are nickel-plated brass, so there's no plastic threading to strip out when you snug it down.

A few install notes from folks who rig these regularly. Give the panel hole a clean 15.3mm bore so the PG9 body seats square, and run the locknut hand-tight plus a small turn so the connector can't spin on a thin aluminum panel. Support the pigtail behind the dash with a zip tie or a clamp. The five wires can work-harden and break at the solder joints if they're left to swing with engine vibration. And before you close everything up, a dab of dielectric grease on the pins keeps bilge moisture from starting corrosion on the female contacts down the road.

Wiring into an existing network is straightforward. Treat the A2K-PMW-F as the end of a drop. Run a micro cable from a spare port on a tee or a multi-port block out to the connector, and confirm the pinout matches your device before you power anything up. Reversing the power pair can damage a connected instrument, so it's worth a two-minute check with a meter. The onboard pigtail is short, so if you need to reach a device farther inside the console, add length with a standard NMEA 2000 micro cable rather than splicing the connector leads.

Who's this for? Anyone building or repairing an NMEA 2000 backbone who needs a sealed, serviceable entry point through a panel. Sailors like the rear mount because it leaves no exposed threads on the helm face, so the front of the console stays clean. Powerboat and center console owners use it to bring the network into a sealed electronics box without compromising the box's rating. It's a small part, but it's the difference between a network you can unplug and service and one that's spliced in and stuck.

Electrically it's rated at 4A and 60VDC, well inside what an NMEA 2000 backbone runs, and it holds its seal across an operating range of -25C to +90C. The connector meets IEC61076-2-101, the standard M12 spec, so it mates with any compliant NMEA 2000 micro cable. It's a simple piece of gear that earns its keep every time you need to pull a display for service and just unplug instead of cutting wires.
