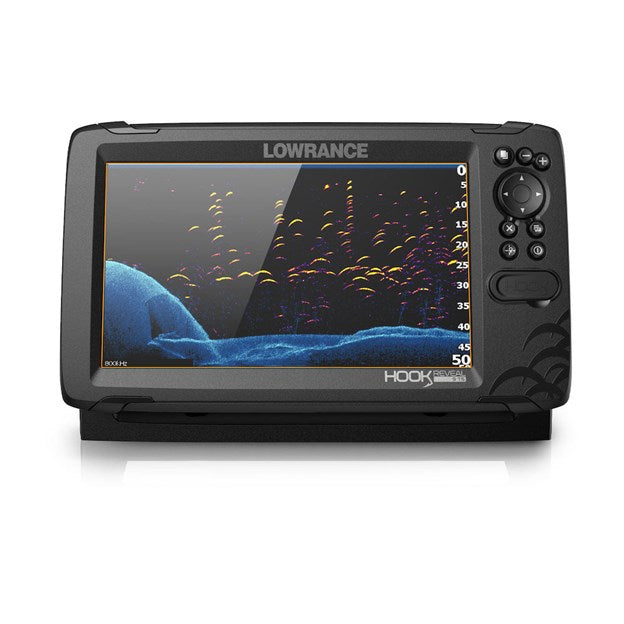

Lowrance HOOK Reveal 9 Combo w/TripleShot Transom Mount & C-MAP Contour™+ Card
Lowrance HOOK Reveal 9 Combo w/TripleShot Transom Mount & C-MAP Contour™+ Card — Product description
Imagine heading out on the water, confident that every cast could land you the biggest catch of the day. The Lowrance HOOK Reveal 9 Combo with TripleShot Transom Mount and C-MAP Contour+ Card turns that vision into reality by blending cutting-edge sonar technology with intuitive controls designed for real-world anglers. This powerhouse unit simplifies spotting fish in murky waters or pinpointing structure on unfamiliar lakes, making it a go-to choice for bass hunters, walleye chasers, and offshore enthusiasts alike.
Unlock Crystal-Clear Fish Detection with FishReveal Technology
At the heart of this fish finder lies FishReveal, a game-changer that fuses Lowrance's renowned CHIRP sonar with high-definition DownScan Imaging. Fish no longer hide in the noise—targets pop against the bottom and structure, highlighted in vivid color palettes tailored for quick identification. Whether you're targeting suspended crappie or bottom-dwelling catfish, this dual-view screen delivers clarity that helps you decide: drop a jig or troll a crankbait?
Anglers report separating schools from debris effortlessly, even in challenging conditions like heavy vegetation or thermoclines. It's not just about seeing fish; it's about understanding their behavior to refine your approach.
TripleShot Transducer: Triple the Coverage, Single Mount Simplicity
The included TripleShot transom-mount transducer packs three sonar types into one rugged housing: wide-angle High CHIRP for broad fish arcs, SideScan for sweeping 180-degree views up to 300 feet per side, and DownScan for straight-down precision on wrecks and drop-offs. This setup doubles your coverage compared to basic units, revealing hidden honey holes without swapping gear.
Perfect for kayaks, bass boats, or pontoons, it mounts easily and thrives in rough water. Pro tip: Pair it with medium-frequency CHIRP settings for versatile freshwater performance, scanning deeper for stripers or shallower for panfish.
SolarMAX Display: See Every Detail, Sun or Shine
Battling glare on bright days? The 9-inch SolarMAX LCD display pumps out 1000 nits of brightness with an 800x480 resolution and wide viewing angles—80 degrees top/bottom, 85 left/right. Touchscreen navigation feels responsive, even with wet hands, while the optimized keypad offers one-touch shortcuts to sonar, charts, and waypoints.
Store up to 3000 waypoints, routes, and trails on the MicroSD slot, ensuring you never lose that legendary spot again. Operating from 5°F to 131°F and IPX7 waterproof, it's built to handle splashes, spray, and storage in extreme climates.
Mapping Mastery with C-MAP Contour+ and Genesis Live
Preloaded with detailed US inland and coastal C-MAP Contour+ charts, this combo covers thousands of waterways out of the box. Spot ramps, docks, and contours down to one-foot intervals. Venture into uncharted territory? Activate Genesis Live for real-time mapping as you fish, shading depth changes and highlighting structure on the fly.
Expand with compatible cards like Navionics or more C-MAP options for offshore contours. GPS plotting keeps you oriented, with compass-safe distance for flexible mounting.
Effortless Setup and Everyday Reliability
Autotuning sonar adjusts frequencies and gain automatically, so you focus on fishing, not fiddling with knobs. Dash-flush or gimbal-bracket mounting fits most consoles, powered by 12V with a 5-amp fuse. At just 1.9 pounds, it's lightweight yet durable for mobile setups.
Real anglers love how it integrates seamlessly with Active Imaging or Active Target upgrades, future-proofing your rig. From dawn patrols to tournament runs, it delivers consistent performance that builds trust trip after trip.
Tips to Maximize Your HOOK Reveal 9 Experience
- Experiment with FishReveal color palettes—orange for shallow, blue for deep—to match water clarity.
- Run SideScan at trolling speeds under 10 mph for sharpest images of laydowns and humps.
- Save custom sonar presets for your favorite lakes via MicroSD for instant recall.
- Calibrate the transducer angle slightly upward (3-5 degrees) for optimal DownScan returns.
- Use Genesis Live on new waters to crowdsource community maps while creating your own.
Frequently Asked Questions
What makes FishReveal on the Lowrance HOOK Reveal 9 stand out?
FishReveal overlays CHIRP sonar fish arches with DownScan Imaging details on a single screen, using color palettes to highlight targets clearly against structure and bottom clutter.
Does the HOOK Reveal 9 have touchscreen controls?
Yes, it features a responsive touchscreen interface combined with a dedicated keypad for quick access to sonar, charts, and waypoints, even in wet conditions.
What type of transducer comes with this combo?
The TripleShot transom-mount transducer includes High CHIRP, SideScan, and DownScan Imaging, providing comprehensive coverage from one easy-to-install unit.
Is the Lowrance HOOK Reveal 9 suitable for saltwater fishing?
Absolutely, with IPX7 waterproofing, C-MAP coastal charts, and robust sonar, it's ideal for both inland lakes and nearshore coastal waters.
Can I create custom maps with this fish finder?
Yes, Genesis Live enables real-time mapping of uncharted areas, shading contours and structure as you explore, with MicroSD storage for saving and sharing.
What's the display like on sunny days?
The SolarMAX 9-inch display delivers 1000 nits brightness and wide viewing angles, ensuring crisp visibility even in direct sunlight.
How many waypoints can the HOOK Reveal 9 store?
It supports up to 3000 waypoints, plus routes and trails, with easy management via the MicroSD card slot.
The all-new HOOK Reveal makes fishing easier, delivering powerful performance with proven fish-finding tools including, Autotuning Sonar, SideScan and DownScan Imaging ™ and now FishReveal ™, which makes fish easier to see by combining the benefits of Lowrance CHIRP sonar and DownScan Imaging ™ on one screen. Whether you're fishing a local spot or unfamiliar water, find the best fishing areas with preloaded US Inland mapping or map uncharted water in real time with Genesis Live.
Lowrance Electronics 0015851001 Attributes
- Display Size: 9 Inch LCD
- Display Resolution: 800 X 480 Pixels
- Sonar Compatibility: High CHIRP With Down And Side Scan With Support For ActiveImaging And Active Target Sonar
- Mount Type: Dash Flush Mount/ Gimbal Bracket Mount
- Used To: To Find Fish, Mark And Return To Hot Spots, Docks And Ramps
- Interface: Touchscreen
- Waterproof: IPX7 Rating Waterproof
- Power Supply Voltage: 12 Volt
- Point Of Interest: 3000 Waypoints
- Weight: 1.9 Pound
- Screen Brightness: 1000 Nits
- Viewing Angle: 80 Degree Top/ Bottom, 85 Degree Left/ Right
- SD Card Storage: Micro SD Card
- Fuse Rating: 5 Amp
- Operating Temperature Range: 5 To 131 Degree Fahrenheit
- Compass Safe: 12 Inch
- Cartography Included: C-MAP US Inland Charting
Lowrance Electronics 0015851001 Features & Benefits
- Fish Are Easier To Find And Easier To Identify With FishReveal, Which Combines On One Screen The Proven Performance Of Lowrance Chirp Sonar
- High-Resolution, SolarMAX Display
- Autotuning Sonar Makes Fishing Simple
- Tripleshot ™ Features The Fish-Finding Capability Of Wide-Angle High Chirp Sonar And The High-Resolution Images Of Fish-holding Structure From Sidescan And Downscan Imaging ™
- New Fish-Finding Color Palettes
- Optimized Keypad With One-Touch Access To Key Features
- Features MicroSD Card Slot
- Easy Front-Dash Or Gimbal-Bracket Mount
- Limited 1 Year Warranty
HOOK Reveal 9 Combo with TripleShot Transom Mount & C-MAP Contour™+ Card
The HOOK Reveal makes fishing easier, delivering powerful performance with proven fish-finding tools including, Autotuning Sonar, DownScan Imaging™ and now FishReveal™, which makes fish easier to see by combining the benefits of Lowrance CHIRP sonar and DownScan Imaging™ on one screen. Whether you’re fishing a local spot or unfamiliar water, find the best fishing areas with included US/Canada C-MAP® Contour™+ mapping or map uncharted water – in real-time – with Genesis Live.
FishReveal™
Fish are easier to find and easier to identify with FishReveal, which combines on one screen the proven performance of Lowrance CHIRP sonar and the high-resolution images of fish-holding structure from DownScan Imaging. Fish targets light up your display.
Autotuning Sonar
Spend more time fishing and less time reworking your sonar settings with HOOK Reveal Autotuning sonar, which ensures you get the best sonar image every time by automatically adjusting settings as fishing conditions change.
TripleShot™ High CHIRP Sonar with SideScan and DownScan Imaging™
Perfect for anglers who want all their sonar from a single transducer, TripleShot™ features the fish-finding capability of wide-angle high CHIRP sonar and the high-resolution images of fish-holding structure from SideScan and DownScan Imaging™.
SolarMAX™ Display
Enjoy crisp and clear views of your display no matter the conditions – even in direct sunlight – with excellent clarity and daylight visibility of HOOK Reveal’s SolarMAX display.
Easiest-to-use Menu Operation and Dedicated Keypad
Easily navigate through menus, select options, and access key functions with HOOK Reveal’s simple menu layout and dedicated keypad.
Features:
- FishReveal™
- Genesis Live Real-Time Mapping
- Autotuning sonar
- Double the sonar coverage of other fishfinders
- Tripleshot™ transducer with High CHIRP, SideScan, and DownScan Imaging™
- Includes US/Canada C-MAP® Contour+ Inland and Coastal chart
- SolarMAX™ Display
- Fish-finding color palettes
- Optimized keypad with one-touch access to key features
- Mapping options include C-MAP, C-MAP Genesis, Navionics® and more
- microSD card slot
- Easy front-dash or gimbal-bracket mount
9-inch GPS/fish finder with detailed lake and coastal maps! With Hook Reveal 9 TripleShot with FishReveal, Lowrance makes finding and identifying fish easier than ever. They combine traditional sonar and CHIRP sonar to provide high-resolution structure and fish images on one screen to provide unparalleled clarity. With a resolution of 800 x 480, the 9-inch Solarax display can provide accurate and clear images even in bright sunlight or dark conditions. The built-in 1 Hz GPS GLONASS WAAS EGNOS MSAS antenna can quickly and accurately lock the satellites. Keyboard operation allows you to precisely access what you need in this intuitive chart plotter/fishfinder combination. The core of Hook 9 Reveal is the Tripleshot tail plate mounted sensor, because it can provide high-frequency sonar shallow water depth, Sidescan and Downscan imaging from a single sensor. You can see things such as the structure and special details of the fish, as well as the new fish discovery palette provided by the Hook Reveal series. Are there many fishing spots in your favorite list? Each "hook" display contains detailed charts. In addition, the Hook Rveal series is compatible with other mapping options, including C-MAP, C-MAP Genesis, Navionics, etc.! Whether you are fishing in known waters or undeveloped waters, you can use Genesis Live mapping to create your own maps with 1/2 inch depth contours in real time. Easy-to-use menu operations allow you to adjust to the desired state, so you can start fishing faster without having to navigate through multiple menu screens-a dedicated keyboard makes operations quick and easy. Hook Reveal 9 Tripleshot has a built-in auto-tuning sonar that can instinctively adjust to current conditions as it changes to provide the best image, thus saving extra time and focusing on fish! If you have been looking for your ideal performer in the open air, then the search is over. Compatible with CMAP Max N+, but support is limited.
SKU: NVN-88009
MPN: 000-15851-001
UPC: 9420064119981
