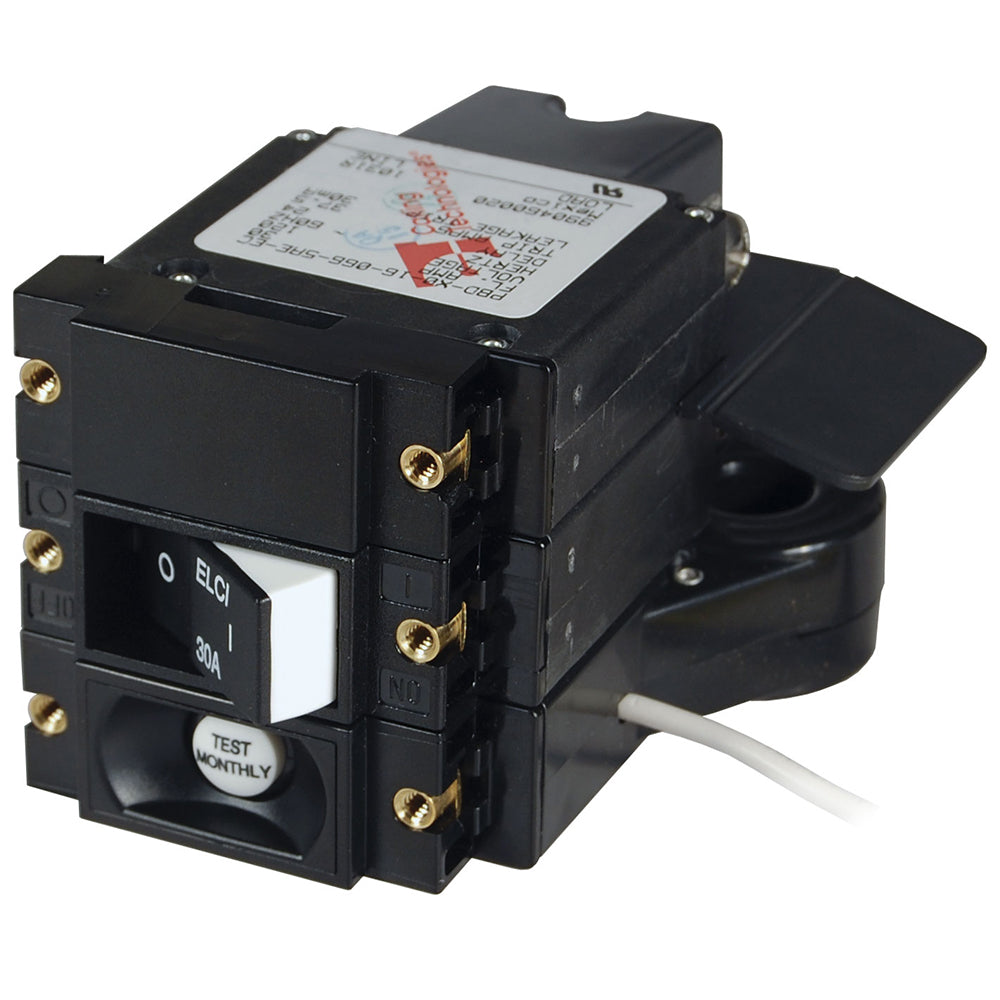

Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A - Flat Rocker
Shipping (3PM)
Within 30 days
Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A - Flat Rocker Product Description
When the RCD function is combined with a circuit breaker for over current protection, the device is often referred to as an RCBO. In the USA, a device that trips on leakages of nominally 5 Milliampere and meets certain standards is called a Ground Fault Circuit Interrupter (GFCI). A device meeting the same standards but with a trip level of 30 Milliampere is called an Equipment Leakage Circuit Interrupter (ELCI). The devices below provide ELCI Main functions and circuit protection in panel mounted breakers.
Blue Sea 3102100BSS Attributes
- Ampere Rating: 30 Amp
- Voltage Rating: 120 Volt
- Reset Type: Manual
- Terminal Connection: Screw
- Type: Magnetic Hydraulic
- Number of Poles: 2
- Quantity: Single
- Estimated Install Time (Hours): 0.25
Blue Sea 3102100BSS Features & Benefits
- Provides Over Current And Leakage Protection Per ABYC E-11 For Whole Boat Shore Power Protection
- Trips On Short Circuit, Overload, Or Leakage To Ground
- Meets UL 1500 External Ignition Protection Requirements
- For Installation In A Power Distribution Panel
- No Supplier Warranty
Blue Sea 3102100BSS Installation Instructions
Blue Sea 3102100BSS Technical Bulletins
A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A - Flat Rocker
Features:
- Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
- Meets UL 1500 external ignition protection requirements
- Trips on short circuit, overload, or leakage to ground
- Front panel mount—installed in a power distribution panel
Specifications:
- Amperage: 30A
- Actuator Style: Flat Rocker
- Poles: 2
- Ignition Protected: Yes
- Max Voltage: 240VAC/120VAC per pole
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 5000A
- Minimum Operating Temperature: -35 degrees C
- Max Operating Temperature: 65 degrees C
- Leakage Trip Amps: 30mA
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Use with Blue Sea Systems' ST blade fuse box ATO/ATC fuse box. Standard circuit protection device for cars and trucks. Three pieces per retail package. 1,000A interrupt...
Frequently Asked Questions (FAQ) About Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A - Flat Rocker
Who is the Blue Sea Systems?How to describe Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A - Flat Rocker?
What is the type of the product?
Who is the Blue Sea Systems?
How to describe Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A - Flat Rocker?
What is the type of the product?
Save $152 when you buy the Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A - Flat Rocker for only $277 from NVN Marine! Same day shipping before 3pm.
Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A - Flat Rocker Technical Specifications
| Type: | |
|---|---|
| Vendor: |
Blue Sea Systems |
| Weight: |
0.8 lb |
| Product Installation: |
Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A - Flat Rocker User Reviews
Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A - Flat Rocker Shipping & Return
| Shipping Weight: |
0.8 lb |
|---|---|
| Box Sizes: |
4.00 (h) x 4.00 (w) x 7.00 (l) |
| Cubic Feet: |
112.0 |
| Returnable: |
Yes |
| P65: |
Yes |
