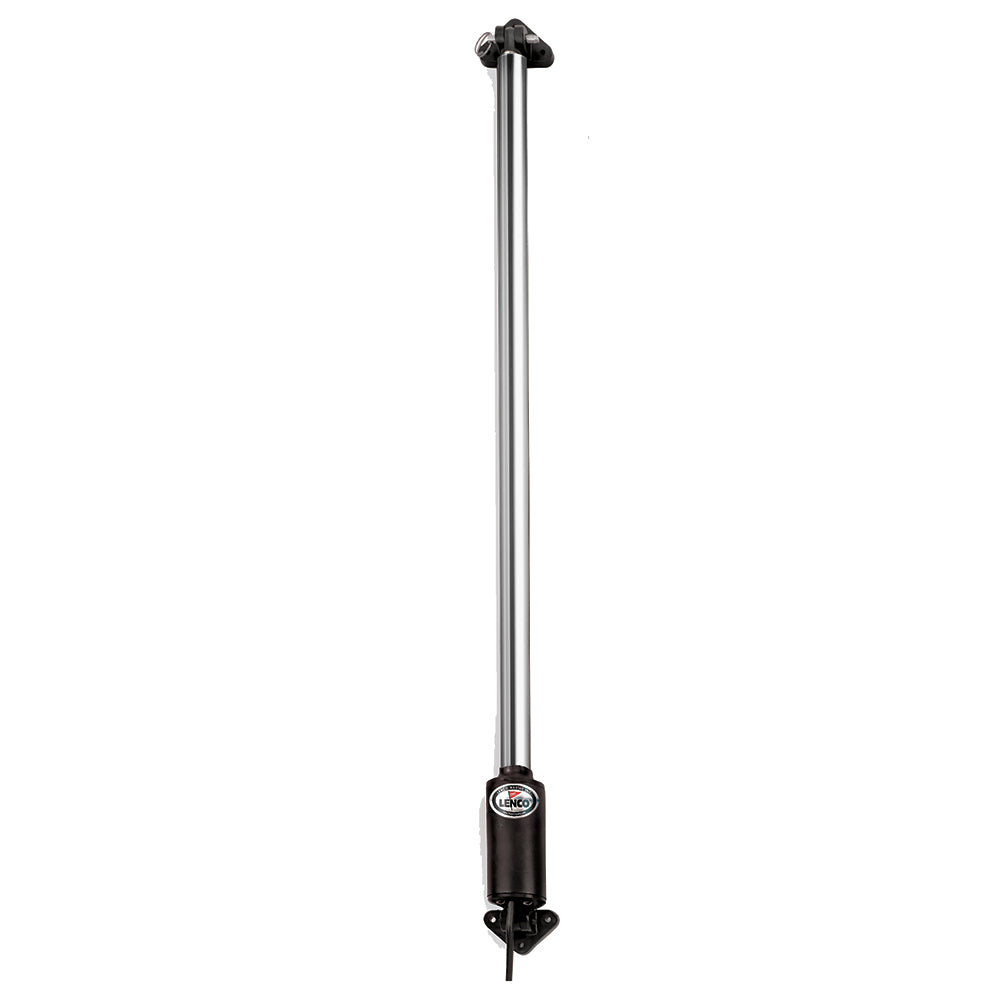

Lenco Hatch Lift 15"-19" (No Switch) 24V HL-400/24V

Hatch Lift 15"-19" (No Switch) 24V HL-400/24V

24-Volt with 2' (61 cm) leads and deutsch connectors. Inline motor design delivers over 500 lbs. of force. Includes high impact, corrosion proof mounting brackets and stainless steel pull pins.

Features:

• Approximate L.O.A. Retracted: 15" (38.1 cm)
• Approximate Stroke: 4" (10.1 cm)
• Approximate L.O.A. Extended: 19" (48.3 cm)
• Clear anodized aluminum tubing
• Sizes 4" (10.1 cm) through 30" (76.2) stroke and available in 12 & 24-volt
• Complete with 2' (61 cm) lead and Deutsch plug (see actuator extension harnesses on page 40)
• Clutchless ball screw design will not drift, never binds and runs in sync on dual lift applications
• Inline motor design delivers over 500 lbs. (226.79 Kg) of force
• Water resistant and made entirely of non-corrosive materials
• Ball screw spins freely when hatch is fully opened or closed eliminating limit switches and burned out motors
• High impact, corrosion proof mounting brackets with stainless steel pull pins
• Powdered metal gears for strength and precision
• Stainless steel ram locks in any position
• CE-certified, ignition protected and ABYC compliant

Lenco Marine's 24V DC 15" -19" electric hatch cover lift (20761-001). Lenco Marine is a true industry leader in maritime and shipbuilding, not only manufacturing decorative sheets, but also...
SKU: NVN-84352
MPN: 20761-001
UPC: 874847002486
