Raymarine Ray90 VHF Radio & AIS700 Bundle Product Description

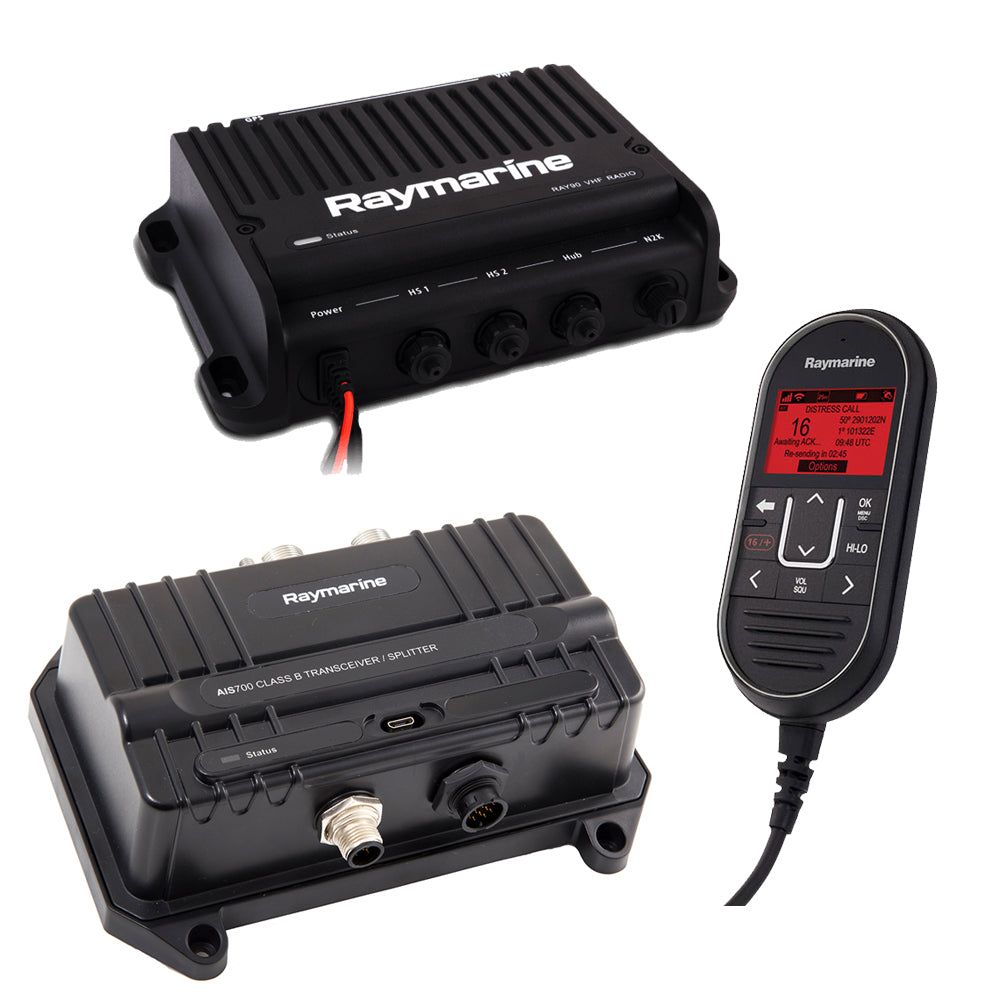

Raymarine Ray90 VHF Radio & AIS700 Bundle - Complete Communication & Safety System

Professional Marine Communication System with Class B AIS Transceiver

Experience the ultimate in marine communication and safety with the Raymarine Ray90 VHF & AIS700 Bundle – a comprehensive system that combines professional-grade VHF communication with advanced Automatic Identification System (AIS) technology. This powerful combination provides essential communication capabilities and enhanced collision avoidance for serious boaters.

Whether you're cruising coastal waters, fishing offshore, or navigating busy shipping channels, this integrated system delivers the communication reliability and situational awareness that professional mariners demand. The modular design offers flexible installation options while maintaining the robust performance required for critical marine communications.

Complete Communication & Safety Solution

Ray90 VHF Radio System

Professional 25-watt VHF radio with Class D Digital Selective Calling (DSC), multi-station capability, and built-in loudhailer with fog signal generator for comprehensive marine communications.

AIS700 Class B Transceiver

Advanced SO-TDMA technology AIS system that both receives and transmits vessel information, providing enhanced collision avoidance and vessel tracking capabilities.

Ray90 VHF Radio Features

Professional Power & Performance

25-watt transmitter with commercial-grade electronics ensures maximum range and crystal-clear communication. Channel scanning, dual-watch, tri-watch, and weather alert functions are standard.

Multi-Station Capability

Black-box design allows expansion to 2 handsets with remote speakers. Includes wired RayMic handset and passive speaker, with optional wireless components available.

Built-In Loudhailer System

30-watt loudhailer with 2-way talkback capability. Automatic fog signal generator meets maritime safety requirements for power and sailing vessels.

Advanced DSC & GPS Integration

Class D Digital Selective Calling with position tracking for up to 5 vessels. NMEA 2000 and NMEA 0183 networking for seamless integration with navigation systems.

AIS700 Class B Transceiver Features

SO-TDMA Technology

Latest Self Organized Time Division Multiple Access networking provides faster performance and longer range than previous generation AIS products.

Built-In Antenna Splitter

Share a single VHF antenna between your VHF radio and AIS system, simplifying installation and reducing antenna requirements.

Dedicated GPS Receiver

Internal 72-channel GPS receiver with external antenna meets international AIS standards for accurate position reporting.

Silent Mode Capability

Hardware and software-enabled Silent Mode allows temporary restriction of your vessel's broadcasts while maintaining reception of surrounding traffic.

Technical Specifications

Ray90 VHF Radio Specs

• Transmit Power: 25 watts
• Channel Coverage: US/Canadian channels + 72 NOAA weather
• DSC Type: Class D Digital Selective Calling
• Loudhailer Output: 30 watts with 2-way talkback
• Display Type: LCD with backlighting

AIS700 Transceiver Specs

• AIS Class: Class B transceiver (receive & transmit)
• Technology: SO-TDMA (Self Organized TDMA)
• GPS Receiver: 72-channel dedicated GNSS receiver
• Antenna Splitter: Built-in VHF antenna splitter included
• Silent Mode: Hardware and software selectable

System Connectivity

• NMEA 2000: Full SeaTalkng compatibility
• NMEA 0183: Built-in multiplexer
• USB Connection: USB 2.0 for PC integration
• SD Card Slot: Data logging capability
• Expandability: Up to 2 handset stations

Complete Installation Package

Ray90 VHF System Includes:

• Ray90 VHF DSC radio with fitted power and data cables
• RayMic wired handset with cradle and adaptor cable
• Passive speaker with mounting gasket and hardware
• DeviceNet to SeaTalkng adaptor cable
• Complete mounting hardware and documentation

AIS700 System Includes:

• AIS700 Class B transceiver with built-in antenna splitter
• GNSS (GPS) antenna with gasket and pole mount kit
• Power and data cable (2 meters)
• VHF antenna interconnect cable (1 meter)
• DeviceNet to SeaTalkng cable (1 meter)
• Pro-AIS programming software and documentation

Marine Safety & Regulatory Compliance

FCC Requirements

AIS700 requires professional programming by qualified technician. MMSI registration or FCC Ship Station License required for US installations.

International Standards

Both systems meet IMO, ITU, and FCC regulations for marine communication and AIS operation. ATIS support included for European inland waterways.

Maritime Safety Features

DSC distress calling, position tracking, weather alerts, and automatic fog signals meet international maritime safety requirements.

Professional Marine Applications

Commercial Vessel Operations

Professional-grade communication system for commercial fishing, charter operations, and workboat applications requiring reliable VHF and AIS capability.

Recreational Cruising

Enhanced safety for coastal cruising and offshore passages. AIS collision avoidance and DSC emergency calling provide peace of mind for extended voyages.

Fleet Management

Position tracking and communication coordination for fishing fleets, sailing clubs, or commercial operations requiring vessel monitoring.

Tournament Fishing

Silent mode AIS capability for competitive scenarios, combined with reliable VHF communication for safety and coordination.

System Integration & Compatibility

Designed for seamless integration with existing marine electronics:

• Raymarine MFD Compatibility: Full integration with Axiom, Quantum, and other Raymarine displays
• NMEA Network Support: Both NMEA 2000 and NMEA 0183 for universal compatibility
• Third-Party Integration: Works with most major chartplotter and radar systems
• PC Software Compatibility: USB connection supports navigation software integration

Frequently Asked Questions

Is professional installation required for this bundle?

Yes, professional installation is strongly recommended, especially for the AIS700 which requires programming by a qualified technician and MMSI registration. Proper antenna installation and network integration ensure optimal performance.

Can I use my existing VHF antenna with this system?

Yes, the AIS700 includes a built-in antenna splitter that allows both the VHF radio and AIS system to share a single VHF antenna, simplifying installation and reducing antenna requirements.

What is the advantage of AIS Silent Mode?

Silent Mode allows you to continue receiving AIS data from other vessels while temporarily stopping your own vessel's broadcasts. This is useful for security in certain waters or competitive fishing when you don't want to reveal your location.

How does the position tracking feature work?

The Ray90 can track up to 5 DSC-equipped vessels, automatically sharing their positions with compatible Raymarine MFDs. This is ideal for monitoring fishing fleets, cruising groups, or vessels of interest.

Can the system be expanded with additional handsets?

Yes, the Ray90 system is expandable to 2 total handsets. You can add either wired or wireless RayMic handsets with corresponding speakers for multi-station operation throughout your vessel.

Professional Support & Warranty

Backed by Raymarine's comprehensive 2-year limited warranty and global network of authorized service centers. Professional programming and installation support available through certified marine electronics dealers worldwide.

Invest in complete marine communication security. The Raymarine Ray90 VHF & AIS700 Bundle provides the professional-grade communication and safety systems that serious mariners depend on for safe and effective vessel operations.

Ray90 is equipped with a powerful 25 Watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel’s MMSI number during setup and you’re ready to go. For GPS operation the optional GA150 passive GPS antenna is required.

Raymarine T70424 Attributes

• Type: Fixed Mount
• Countries: United States And Canadian Channels
• Power Output (W): 25 Watt
• Automatic Identification System (AIS): With AIS
• Number Of NOAA Weather Channels: 72
• With Weather Alert: Yes
• GPS Capable: Yes
• With Bluetooth Technology: No
• Public Address System: PA System Capable
• Rechargeable Battery Type: Lithium Ion
• With Key Lock: No
• Display Type: LCD
• Color: Black

Raymarine T70424 Features & Benefits

• Black Box, Multi-Station Capable VHF Radio
• Expandable To 2 Handsets
• Built-In Loudhailer And Fog Signal Generator
• Optional External GPS
• Simple NMEA2000 And NMEA0183 Networking
• Limited 2 Year Warranty

Raymarine T70424 Installation Instructions

• VHF DSC Radio Troubleshooting guide 82417-1-EN.pdf
• Wired Handset Installation instructions 87354-2-EN.pdf
• Wireless Handset Installation instructions 87334-3-EN.pdf
• Passive Speaker Installation sheet Mounting template 87332-1-EN.pdf
• Ray90 Ray91 Installation Operation instructions 81377 (Rev 8) EN.pdf

Raymarine T70424 Warranties

• Raymarine-Global-Limited-Warranty-01-Jul-17-rev1-0.pdf

Raymarine T70424 Technical Bulletins

• Passive Speaker Installation sheet Mounting template 87332-1-EN.pdf
• Ray90 Ray91 Installation Operation instructions 81377 (Rev 8) EN.pdf
• Wired Handset Installation instructions 87354-2-EN.pdf
• Wireless Handset Installation instructions 87334-3-EN.pdf
• VHF DSC Radio Troubleshooting guide 82417-1-EN.pdf

Ray90 VHF Radio & AIS700 Bundle

Ray90 VHF Radio

Raymarine’s fixed mount Ray90 modular VHF radio brings multi-station communications to a whole new level of power, performance, and flexibility. The Ray90 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.

Features:

• Black box, multi-station capable VHF radio
• Wireless handset and active speaker available
• Wired handset and passive speaker included
• Expandable to 2 handsets
• Built-in loudhailer and fog signal generator
• Optional external GPS
• Simple NMEA2000 and NMEA0183 Networking

Ray90 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel’s MMSI number during setup and you’re ready to go. For GPS operation the optional GA150 passive GPS antenna is required.

Position Tracking

Use Ray90’s position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray90 supports the ATIS system on navigable inland waterways.

Loudhailer

Ray90’s built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can also be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.

Waterproof & Ruggedized

Ray90’s transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions.

Expand Your System

The Ray90 system includes 1 RayMic wired handset and a passive speaker kit. Expand your system with an additional RayMic handset and remote speaker. For noisy environments choose the optional active remote speaker. No matter how small or how large your vessel is, the Ray90 all the power and performance you need for essential communications on the water.

In the Box:

• Ray90 / Ray91 VHF DSC Radio (including fitted power and data cable)
• Raymic handset cradle
• Raymic handset
• Raymic handset adaptor cable (12 pin female to 12 pin male with RCA Audio)
• Passive speaker
• Passive speaker mounting gasket
• Passive speaker mounting screws x 4
• Documentation
• VHF radio mounting screws x 4
• Handset cradle mounting screws x 4
• DeviceNet to SeaTalkng® adaptor

AIS700 Class B AIS Transceiver with Antenna Splitter

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver designed for use with Raymarine multifunction navigation display systems.  AIS is an international marine navigation safety system that allows participating vessels to silently exchange key navigation information including vessel name, identification, course, speed and more.  AIS contacts can be displayed on Raymarine multifunction displays, chartplotters, radar displays and select instruments.  As a Class B AIS transceiver, the AIS700 not only receives broadcasts from other vessels, it also transmits your own boat’s information too helping you to be seen on other vessels’ systems.

The AIS700 is engineered using the very latest SO-TDMA (Self Organized Time Division Multiple Access) networking technology which allows it to perform faster and at longer ranges than d speed over previous generation AIS products.  For ease-of-installation, the AIS700 has a built in VHF-band antenna splitter which allows it to share a single antenna with your current VHF radio.  AIS700 also has its own internal, dedicated 72-channel GPS receiver with external antenna as required by international standards.

AIS700 also supports both hardware and software-enabled Silent Mode.  This allows you to temporarily restrict broadcasting your vessels own data, while continuing to receive updates from surrounding traffic.  Silent Mode can be particularly useful when transiting waters where extra security is a concern, or even in competitive tournament scenarios when you might want to prevent other from finding out the location of the hot bite.  Normal AIS safety broadcasts can be easily reinstated with a few simple touches of the AIS controls in your Raymarine MFD, or with the flip of a switch for hardware-silenced systems.

The AIS700 is super-compact for easy mounting inside your helm, in a service locker, or other out-of-the-way location. It can connect to your other onboard electronics using the latest NMEA2000 networking. AIS700 also has a built-in NMEA0183 multiplexer to assist in connecting it to older MFD’s and VHF radio systems. AIS700 also has a built-in USB 2.0 connection that can be used to tie the transceiver into a computer or laptop running AIS compatible navigation software. AIS700 has a Secure Digital (SD) memory slot that can be fitted with an owner-suppled flash memory card for continuous recording of the AIS data stream.

Features:

• Full transmit and receive AIS for enhanced situational awareness and safety
• Latest SO-TDMA networking for longer range and faster performance
• Built-in antenna splitter simplifies installation with existing VHF radio antenna
• NMEA2000, NMEA0183, PC and SeaTalk^ng Compatible
• Software or hardware switchable Silent Mode for enhanced security when needed

In the Box:

• AIS700 Class B AIS Transceiver with built-in VHF antenna splitter
• GNSS (GPS) Antenna, gasket and pole mount kit
• Power and data cable (2 meters)
• VHF Radio antenna interconnect cable (1 meter)
• DeviceNet to SeaTalk NG Cable (1 meter)
• Mounting Hardware
• Pro-AIS Programming Software CD-ROM
• Documentation kit

Raymarine's fixed Ray90 modular VHF radio fixture brings multi-station communication to a whole new level of power, performance and flexibility. Ray90 is a black box design with an invisible transceiver, while the ergonomic RayMic earpiece and remote speakers can fully control the broadcast through clear audio. An optional wireless handset is now available. The new main function-to provide a wireless earpiece and active speakers. Simple NMEA2000 and NMEA0183 networking. Ray90 is equipped with a powerful 25-watt transmitter and commercial-grade electronic equipment with long service life and excellent performance. Channel scanning, dual monitoring, triple monitoring and weather alert are standard configurations. Class D digital selective call broadcasting and integrated GPS make it easy to set up advanced security and call functions. Just enter the ship’s MMSI number during the setup process to start using it. For GPS operation, the optional GA150 passive GPS antenna is required.



Save $410 when you buy the Raymarine Ray90 VHF Radio & AIS700 Bundle for only $1689 from NVN Marine! Same day fast and free shipping before 3pm.
