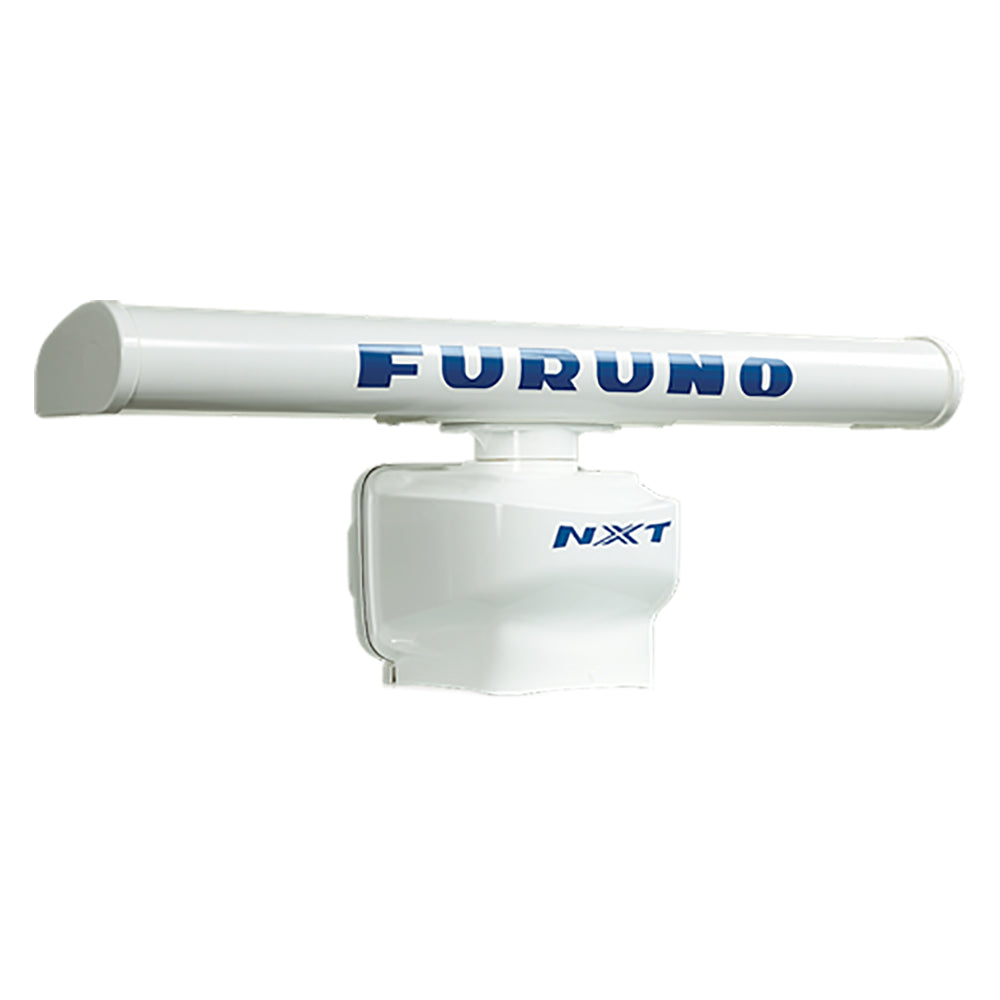

DRS25ANXT/4 Radar Pedestal 4' Array - 15M Cable

Fast & Free Shipping (1-3 Days Delivery Time)

SKU: 83553 - UPC: DRS25ANXT/4 - MPN: DRS25ANXT/4
$9,270.00 $9,270.00 ( / )

Available Stock : 3

The DRS25ANXT/4 radar pedestal is a 4& 39; array, 15M.
Furuno
Same Day

Shipping (3PM)

Free Returns

Within 30 days

DRS25ANXT/4 Radar Pedestal 4' Array - 15M Cable Product Description

DRS25ANXT/4 Radar Pedestal 4' Array - 15M Cable

The high-power NXT solid-state Radar options for NavNet TZtouch2 and TZtouch3. These radar options pack serious power and include several Furuno exclusive features: Target Analyzer™ highlights targets in red or green to indicate potential danger, Fast Target Tracking™ displays target vectors in mere seconds, ARPA displays and tracks up to 100 targets in a single sweep, Bird Mode automatically adjusts gain and sea settings to help you find those feathered friends, and Rain Mode turns storm cells blue so you can easily navigate around the weather. Works with NavNet TZtouch2/Tztouch3 MFDs. The high-power DRS12A-NXT and DRS25A-NXT are 100W and 200W respectively.

Features:

  • High-power 100W (DRS12A-NXT) or 200W (DRS25A-NXT) Solid State Radars for NavNet Tztouch2 and Tztouch3
  • Utilize 3.5-foot, 4-foot, or 6-foot Open Array antennas
  • Target Analyzer™ shows dangerous targets approaching your boat by automatically changing their color to red
  • Fast Target Tracking™ displays a targets speed and course vector in only seconds after acquiring
  • Bird mode works automatically adjusting the gain & sea settings for optimal visibility
  • Rain Mode isolates rain cells, so that you can clearly see your targets
  • Exceptional short-range detection

Furuno DRS Radars are available in bundled kits that include the DRS Radar, Antenna, and signal cable. Models ending in /3 include the XN10A/3 antenna. Models ending in /4 include the XN12A/4 antenna. Models ending in /6 include the XN13A/6 antenna.

Furuno DRS25ANXT 200 Watt Solid-State Doppler Radar with 4' antenna

Model: DRS25ANXT/4

The Furuno NXT Radar is the next step in Radar evolution; a Solid-State Radar with pulse compression, Target Analyzer™ and Fast Target Tracking™ utilizing Doppler technology. Combined with FURUNO exclusive RezBoost™ technology for beam sharpening, NXT packs the performance of a larger Radar in a more compact package.

NXT was the first Radar in the world to use the new Furuno exclusive Target Analyzer™ function, where targets that are approaching your vessel automatically change color. Green targets are targets that stay stationary, or are moving away from you, while red targets are moving towards your vessel. Target Analyzer™ works independent of vessel speed, both your own vessels and target vessels, with minor limitations. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target Analyzer™ can increase safety, as well as improve situational awareness.

Once a target has been selected, a speed and course vector is displayed in seconds. With accurate tracking information, estimation of other vessel's course and speed is greatly simplified. With Doppler technology, any vessel approaching yours will automatically display a target vector, as well as sound an alarm.

For the first time Furuno's exclusive RezBoost™ technology is used in one of our Radar units, with impressive performance. With RezBoost™ set to MAX, the sharpness of a much larger open array antenna can be achieved.

Specifications
Antenna Size 4'
Band X
Power Usage 12-24 VDC
Power Output 200 W
Antenna Type Open Array
Beam Width 1.9 degrees

What's in the Box:
  • RSB137-126 Pedestal
  • 001-512-620-00 15m Cable
  • XN12A/4 4' Antenna


DRS25ANXT/4 radar base 4'array-15M cable is used for NavNet TZtouch2 and TZtouch3 high-power NXT solid-state radar options. These radar options are powerful and have many unique features of Furuno:...

Frequently Asked Questions (FAQ) About DRS25ANXT/4 Radar Pedestal 4' Array - 15M Cable

Who is the Furuno?
How to describe DRS25ANXT/4 Radar Pedestal 4' Array - 15M Cable?

Who is the Furuno?

Furuno is a world-renowned manufacturer and leader of marine electronics that produces an abundance of products. With a large selection of high-end, commercial grade sonar to the compact Black Box sonar, Furuno has one to fit almost any vessel. When it comes to communications, top performance and total reliability are necessities. That's why Furuno radio equipment is tough and dependable.

How to describe DRS25ANXT/4 Radar Pedestal 4' Array - 15M Cable?

DRS25ANXT/4 radar base 4'array-15M cable is used for NavNet TZtouch2 and TZtouch3 high-power NXT solid-state radar options. These radar options are powerful and have many unique features of Furuno:...
  • The DRS25ANXT/4 Radar Pedestal 4' Array - 15M Cable is a high-power solid-state radar option for NavNet TZtouch2 and TZtouch3.
  • This radar option includes several Furuno exclusive features, such as Target Analyzer™, which highlights targets with a user-selected color and intensity level.
  • The NXT Radar options are designed to go the distance.
  • With a range of up to 15 miles, you'll never miss out on any potential targets.
  • The Target Analyzer™ highlights all nearby targets on the screen, so you don't have to spend time scanning for them.
  • The DRS25ANXT/4 radar pedestal array is a high-power and versatile radar option for NavNet TZtouch2 and TZtouch3.
  • The NXT solid-state Radar options for NavNet TZtouch2 and TZtouch3 include several Furuno exclusive features: Target Analyzer™ highlights.


Buy with the best price DRS25ANXT/4 Radar Pedestal 4' Array - 15M Cable for only $9270 from NVN Marine! Same day fast and free shipping before 3pm.

DRS25ANXT/4 Radar Pedestal 4' Array - 15M Cable Technical Specifications

Type:

Marine Navigation & Instruments | Radars

Vendor:

Furuno

Weight:

66.6 lb
