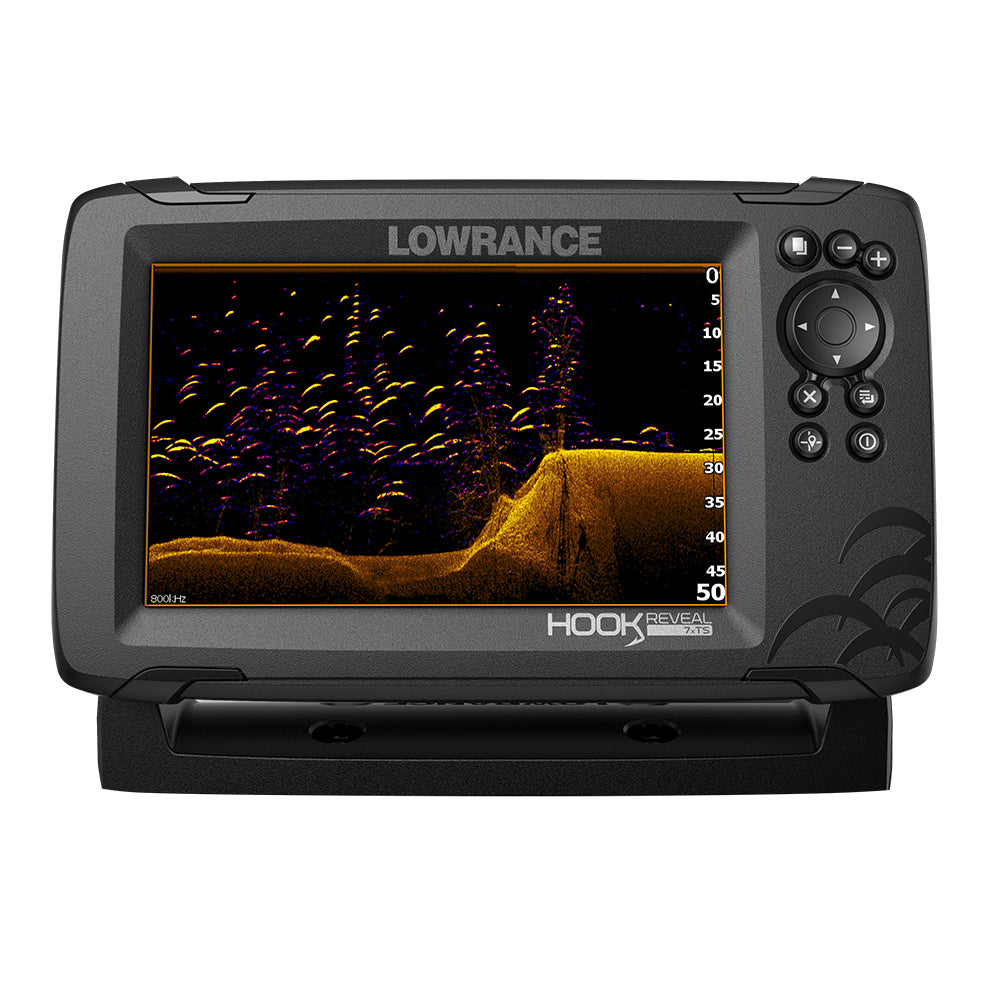

Lowrance HOOK Reveal 7x Fishfinder w/TripleShot Transom Mount Transducer
Free Ground Shipping (2-6 Days Delivery Time)
SKU: 81391 - UPC: 9420064114504 - MPN: 000-15515-001
It will be shipped by UPS Ground.
It will be shipped by UPS Ground.
$289.89
$299.99
( / )
The HOOK Reveal 7x Fishfinder with TripleShot Transom Mount is the perfect choice for anglers who want to find fish fast and keep them coming back. The 7x magnification, 640-foot depth range, and 200-Watt
Same Day
Shipping (3PM)
Free Returns
Within 30 days
Lowrance HOOK Reveal 7x Fishfinder w/TripleShot Transom Mount Transducer Product Description
The all-new HOOK Reveal makes fishing easier, delivering powerful performance with proven fish-finding tools including, Autotuning Sonar, DownScan Imaging ™ and now FishReveal ™, which makes fish easier to see by combining the benefits of Lowrance CHIRP sonar and DownScan Imaging ™ on one screen. Whether you're fishing a local spot or unfamiliar water, find the best fishing areas with preloaded US Inland mapping or map uncharted water in real time with Genesis Live.
Lowrance Electronics 0015515001 Attributes
- Display Size: 7 Inch LCD
- Display Resolution: 800 X 480 Pixels
- Overall Dimensions: 9.3 Inch Width X 6-1/2 Inch Height X 3.3 Inch Depth
- Sonar Compatibility: High CHIRP Sonar
- With Built-In GPS: Yes
- Mount Type: Dash Flush Mount/ Gimbal Bracket Mount
- Used To: To Find Fish, Mark And Return To Hot Spots, Docks And Ramps
- Interface: Keypad
- Waterproof: IPX7 Rating Waterproof
- Power Supply Voltage: 12 Volt
- Point Of Interest: 3000 Waypoints
- Weight: 1.25 Pound
- Screen Brightness: 1000 Nits
- Viewing Angle: 80 Degree Top/ Bottom, 85 Degree Left/ Right
- SD Card Storage: Micro SD Card
- Fuse Rating: 5 Amp
- Operating Temperature Range: 5 To 131 Degree Fahrenheit
- Compass Safe: 12 Inch
- Cartography Included: GPS Plotter Only
Lowrance Electronics 0015515001 Features & Benefits
- Fish Are Easier To Find And Easier To Identify With FishReveal, Which Combines On One Screen The Proven Performance Of Lowrance Chirp Sonar
- High-Resolution, SolarMAX Display
- Autotuning Sonar Makes Fishing Simple
- Tripleshot ™ Features The Fish-Finding Capability Of Wide-Angle High Chirp Sonar And The High-Resolution Images Of Fish-holding Structure From Sidescan And Downscan Imaging ™
- New Fish-Finding Color Palettes
- Optimized Keypad With One-Touch Access To Key Features
- Features MicroSD Card Slot
- Easy Front-Dash Or Gimbal-Bracket Mount
- Limited 1 Year Warranty
Lowrance Electronics 0015515001 Installation Instructions
Lowrance Electronics 0015515001 Technical Bulletins
- Hook-Reveal-Series_OM_EN_988-12681-001_w.pdf
- Hook2-7-Hook-Reveal-7_MT_988-11781-002_w.pdf
- Hook-Reveal-Series_OM_EN_988-12681-001_w.pdf
- Hook-Reveal_QG_EN_988-12656-001_w.pdf
- Hook-Reveal-X-Series-OM_EN_988-12692-001_w.pdf
- Hook-Reveal_QG_EN_988-12656-001_w.pdf
HOOK Reveal 7x Fishfinder w/TripleShot Transom Mount Transducer with Built-In GPS Trackplotter
The HOOK Reveal makes fishing easier, delivering powerful performance with proven fish-finding tools including, Autotuning Sonar, SideScan and DownScan Imaging™ and now FishReveal™, which makes fish easier to see by combining the benefits of Lowrance CHIRP sonar and DownScan Imaging™ on one screen. Navigating to your favorite fishing spot is simple with the GPS Trackplotter, which makes route, trail and waypoint navigation is easy.
Key Features:
- FishReveal™
- Autotuning sonar
- Double the sonar coverage of other fishfinders
- TripleShot™ transducer with High CHIRP, SideScan and DownScan Imaging™ Included
- GPS Plotter
- SolarMAX™ Display
- New fish-finding color palettes
- Optimized keypad with one-touch access to key features
- Easy front-dash or gimbal-bracket mount
Find the difference in Lowrence through Lowrance HOOK Reveal 7 Fish Finder. The world's best-selling fish finder series has been upgraded to one of Lowrance's most popular features: FishReveal. This powerful fish-finding tool combines the target recognition of the mature Lowrance CHIRP sonar with the high-resolution images of the bottom details and structures of DownScan Imaging. Lowrance HOOK Reveal 7 Fish Finder has a series of industry-leading features, from automatic sonar settings to 7 SolarMAX display, which is twice the coverage of traditional fish finder sonar, new fish finder color palette and optimized keyboard. Among them are the main functions of one-key tapping. A simple front dashboard or gimbal allows you to complete the operation in minutes. Type: Sonar/GPS.
Lowrance HOOK Reveal 7x Fishfinder w/TripleShot Transom Mount Transducer Related Products
Lowrance Extension Cable f/HOOK² TripleShot/SplitShot Transducer - 10'Frequently Asked Questions (FAQ) About Lowrance HOOK Reveal 7x Fishfinder w/TripleShot Transom Mount Transducer
Who is the Lowrance?How to describe Lowrance HOOK Reveal 7x Fishfinder w/TripleShot Transom Mount Transducer?
What is the weight of the product?
Is this product waterproof?
What is the display size of the product?
What is the mount type of the product?
What is the controlling interface of the product?
Who is the Lowrance?
Lowrance Electronics, Inc., has been a world leader in the design, manufacture and marketing of high-quality sport fishing SONAR and Global Positioning System (GPS) mapping instruments for over 45 years. With nearly 45 years continuous manufacturing experience, Lowrance designs products that provide the ultimate in high-performance features at highly competitive prices. Lowrance products are used by both sport fisherman and recreational boaters.
How to describe Lowrance HOOK Reveal 7x Fishfinder w/TripleShot Transom Mount Transducer?
Find the difference in Lowrence through Lowrance HOOK Reveal 7 Fish Finder. The world's best-selling fish finder series has been upgraded to one of Lowrance's most popular features: FishReveal. This powerful fish-finding tool combines the target recognition of the mature Lowrance CHIRP sonar with the high-resolution images of the bottom details and structures of DownScan Imaging. Lowrance HOOK Reveal 7 Fish Finder has a series of industry-leading features, from automatic sonar settings to 7 SolarMAX display, which is twice the coverage of traditional fish finder sonar, new fish finder color palette and optimized keyboard. Among them are the main functions of one-key tapping. A simple front dashboard or gimbal allows you to complete the operation in minutes. Type: Sonar/GPS.
- The HOOK Reveal 7x Fishfinder w/TripleShot Transom Mount Transducer with Built-In GPS Trackplotter is the ultimate fishing machine.
- With Autotuning Sonar, SideScan and DownScan, this fish finder is perfect for all types of water conditions.
- Powerful performance with proven fish-finding tools including Autotuning Sonar, SideScan and DownScan.
- The HOOK Reveal's Autotuning Sonar will help you find fish that are close to the bottom or near the surface.
- SideScan and DownScan will show you what's happening on the sides and below your boat, so you can make a clean cast every time.
- Built-in GPS Trackplotter provides accurate fishing location and heading data for easy navigation.
The Lowrance Hook Reveal 7x is the perfect fishfinder for anglers looking for a high-quality, affordable fishfinder with a ton of features. The Hook Reveal 7x Tripleshot GPS only model has three transducers that cover more water than other fishfinders and is equipped with a DownScan Imaging and SideScan sonar. With the Hook Reveal 7x you'll be able to see everything under the water
What is the weight of the product?
4.85
- The HOOK Reveal 7x Fishfinder w/TripleShot Transom Mount Transducer with Built-In GPS Trackplotter is the ultimate fishing machine.
- With Autotuning Sonar, SideScan and DownScan, this fish finder is perfect for all types of water conditions.
- Powerful performance with proven fish-finding tools including Autotuning Sonar, SideScan and DownScan.
- The HOOK Reveal's Autotuning Sonar will help you find fish that are close to the bottom or near the surface.
- SideScan and DownScan will show you what's happening on the sides and below your boat, so you can make a clean cast every time.
- Built-in GPS Trackplotter provides accurate fishing location and heading data for easy navigation.
- Lowrance HOOK Reveal 7x Tripleshot GPS Only No Chart Model: 000-15515-001
- FishReveal Autotuning sonar
- Double the sonar coverage of other fishfinders
- Tripleshot transducer with High CHIRP, SideScan and DownScan Imaging
- GPS Plotter
- Built-in, easy-to-use GPS Plotter
- Tripleshot sonar with High CHIRP, SideScan and DownScan Imaging
- Lowrance HOOK Reveal 7x Tripleshot GPS Only No Chart Model: 000-15515-001FishReveal Autotuning sonar
Is this product waterproof?
IPX7 Rating Waterproof
What is the display size of the product?
7 Inch LCD
What is the mount type of the product?
Dash Flush Mount/ Gimbal Bracket Mount
What is the controlling interface of the product?
Keypad
Save $10 when you buy the Lowrance HOOK Reveal 7x Fishfinder w/TripleShot Transom Mount Transducer for only $289 from NVN Marine! Same day free shipping before 3pm.
Lowrance HOOK Reveal 7x Fishfinder w/TripleShot Transom Mount Transducer Videos
Lowrance HOOK Reveal 7x Fishfinder w/TripleShot Transom Mount Transducer Technical Specifications
| Type: | |
|---|---|
| Vendor: |
Lowrance |
| Weight: |
4.45 lb |
