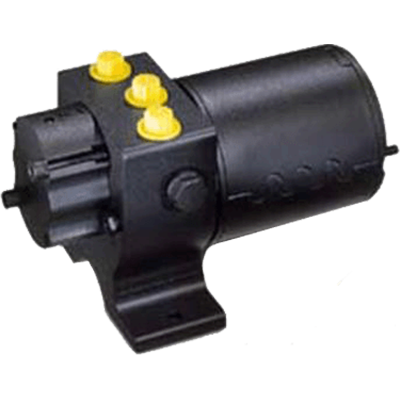

Raymarine E12139 Hydraulic Reversing Pump Type 0.5 - 12V Marine Autopilot Drive Unit
Professional-Grade Hydraulic Autopilot Pump for Hydraulically Steered Vessels
The Raymarine E12139 Type 0.5 Hydraulic Reversing Pump delivers precision steering control for vessels with hydraulic steering systems. Engineered specifically for the Evolution autopilot series, this rugged 12-volt pump seamlessly integrates with your existing hydraulic steering system to provide reliable, hands-free navigation. Perfect for Volvo D4/D6 sterndrive applications and hydraulic cylinders ranging from 3.1 to 6.7 cubic inches.
Key Features & Benefits
- Precision Hydraulic Control - Delivers smooth, responsive steering with maximum 750 PSI pressure capability
- High-Performance Flow Rate - 1000cc/min (67 cubic inches/min) peak flow ensures quick steering response
- Evolution System Compatibility - Designed to work seamlessly with ACU-100 Actuator Control Unit
- Rugged Marine Construction - Built to withstand harsh marine environments with reliable floor-mount design
- Optimal Cylinder Range - Compatible with hydraulic cylinders from 50cc to 150cc (3.1 to 9 cubic inches)
- Sterndrive Ready - Specifically suitable for Volvo D4/D6 sterndrive installations
Technical Specifications
| Model Number: | E12139 |
| Pump Type: | Type 0.5 Hydraulic Reversing Pump |
| Power Requirements: | 12 Volt DC |
| Ram Capacity Range: | 50cc-150cc (3.1-9 cubic inches) |
| Maximum Stall Pressure: | 50 bar (750 PSI) at 12V |
| Peak Flow Rate: | 1000cc/min (67 cubic inches/min) no load |
| Compatible ACU: | ACU-100 Actuator Control Unit |
| Mounting Configuration: | Floor Mount |
| UPC Code: | 091975000751 |
Compatibility & Applications
Ideal Vessel Types:
- Boats with hydraulic steering systems (50cc-150cc cylinder capacity)
- Volvo D4/D6 sterndrive applications
- Vessels requiring EV100 Powerpilot replacement
- Cruising boats seeking reliable autopilot functionality
- Sport fishing boats with hydraulic steering
System Requirements:
- 12V DC electrical system
- ACU-100 Actuator Control Unit
- Hydraulic steering system with compatible cylinder capacity
- Evolution autopilot display unit
Installation & Maintenance
Installation Considerations:
- Professional installation recommended for optimal performance
- Floor-mount design requires secure mounting location
- Direct connection to vessel's hydraulic steering lines
- 12V power connection with appropriate circuit protection
- Integration with existing Evolution autopilot system
Maintenance Requirements:
- Regular inspection of hydraulic connections
- Monitoring of hydraulic fluid levels
- Electrical connection checks
- System calibration verification
Safety & Compliance
- Engineered to meet marine industry standards
- Raymarine quality assurance and testing protocols
- Designed for continuous marine duty cycle
- Built-in protection against hydraulic system over-pressure
- Compliant with recreational marine electrical standards
Frequently Asked Questions
What is the difference between Type 0.5 and other Raymarine hydraulic pumps?
The Type 0.5 pump is designed for smaller hydraulic steering systems with cylinder capacities between 50cc-150cc. It provides 750 PSI maximum pressure and is specifically optimized for Volvo D4/D6 sterndrive applications and boats requiring moderate steering assistance.
Can this pump replace an EV100 Powerpilot system?
Yes, the E12139 Type 0.5 pump is specifically designed as a replacement component for EV100 Powerpilot systems, providing enhanced reliability and performance when paired with the ACU-100 control unit.
What size hydraulic steering system is compatible with this pump?
This pump is compatible with hydraulic steering cylinders ranging from 50cc to 150cc (3.1 to 9 cubic inches). It's essential to match the pump capacity to your specific hydraulic steering system for optimal performance.
What additional components are needed for installation?
You'll need an ACU-100 Actuator Control Unit, an Evolution autopilot display unit, appropriate hydraulic fittings, 12V power supply with proper circuit protection, and professional installation is recommended for system integration and calibration.
Is this pump suitable for both inboard and sterndrive applications?
While the Type 0.5 pump can work with various hydraulic steering systems, it's specifically optimized for Volvo D4/D6 sterndrive applications. For other engine configurations, consult with a qualified marine electronics installer to ensure proper compatibility.
