Furuno 165T/275LHW Pocket Mount Combo Wide Beam Transducer f/DFF3D
Free Ground Shipping (2-6 Days Delivery Time)
SKU: 76811 - UPC: 611679382139 - MPN: 165T/275LHW
$3,369.99
$3,700.00
( / )
This Furuno 165T/275LHW Pocket Mount Combo Wide Beam Transducer is designed to provide excellent performance for a variety of applications including commercial fishing, pleasure boating, and recreational water sports. It includes a high frequency transducer
Same Day
Shipping (3PM)
Free Returns
Within 30 days
Furuno 165T/275LHW Pocket Mount Combo Wide Beam Transducer f/DFF3D Product Description
This is a new size housing that contains DFF3D elements along with CHIRP elements. For over 70 years, Furuno has been continuously imagining and creating new solutions, making new marine electronic equipment with the goal of offering both performance and simplicity for everyone. Not only for men and women who make a living on the seas, but also for those who simply want to enjoy the boating lifestyle. For them, Furuno has become synonymous with quality, performance and reliability.
Furuno 165T275LHW Attributes
- Mounting Location: In-Hull Mount
- Number Of Pins: 7 Pin
- Depth: 3000 Feet
- Power Rating: 1000 Watt
- Frequency Range: 165 kHz/ 42 To 65 kHz For Low CHIRP/ 150 To 250 kHz For High CHIRP
- Supported Angle: 120/ 25 X 16/ 25 Degree Beamwidth
- Cable Length: 39.3 Feet
Furuno 165T275LHW Features & Benefits
- DFF3D Operating Frequency: 165 Kilohertz
- Pigtail Cable For DFF1-UHD, 7 Pin Connector And A Pigtail Cable For The DFF3D
- Recommended For A DFF1-UHD And DFF3D Installation
- Built-In Motion And Temperature Sensor
- Limited 3 Year Warranty
Furuno 165T275LHW Installation Instructions
Furuno 165T275LHW Technical Bulletins

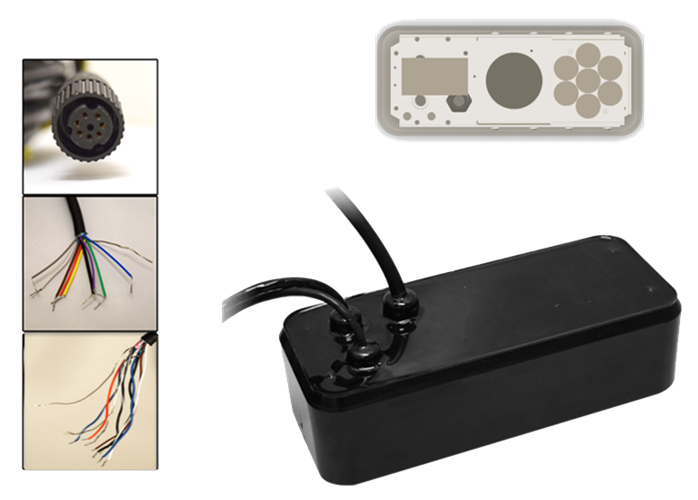

165T/275LHW Pocket Mount Combo Wide Beam Transducer for DFF3D
This is the housing (12L x 5W x 3.5H) that contains DFF3D elements along with CHIRP elements.
Features:
- DFF3D operating frequency 165 kHz
- Low—CHIRPS from 42 kHz to 65 kHz, Beamwidth 25° to 16°
- High—CHIRPS from 150 kHz to 250 kHz, Beamwidth 25°
- 12M Cables. Pigtail cable for DFF1-UHD, 7 pin connector and a pigtail cable for the DFF3D
- Recommended for a DFF1-UHD and DFF3D installation
- Built-in motion sensor
- Built in temp sensor
165T / 265LH-PM488 DFF3D CHIRP Combination Pocket Transmitter Pocket Combination Transmitter The housing of the transmitter (12 LX 5 W X 3.5 H) contains DFF3D components...
Furuno 165T/275LHW Pocket Mount Combo Wide Beam Transducer f/DFF3D Related Products
Sea-Dog Stainless Steel Midget Vent - MediumFrequently Asked Questions (FAQ) About Furuno 165T/275LHW Pocket Mount Combo Wide Beam Transducer f/DFF3D
Who is the Furuno?How to describe Furuno 165T/275LHW Pocket Mount Combo Wide Beam Transducer f/DFF3D?
What is the power rating of the product?
What is the length of cable?
Who is the Furuno?
Furuno is a world-renowned manufacturer and leader of marine electronics that produces an abundance of products. With a large selection of high-end, commercial grade sonar to the compact Black Box sonar, Furuno has one to fit almost any vessel. When it comes to communications, top performance and total reliability are necessities. That's why Furuno radio equipment is tough and dependable.
How to describe Furuno 165T/275LHW Pocket Mount Combo Wide Beam Transducer f/DFF3D?
165T / 265LH-PM488 DFF3D CHIRP Combination Pocket Transmitter Pocket Combination Transmitter The housing of the transmitter (12 LX 5 W X 3.5 H) contains DFF3D components...
- Mount and be done with it. No more hassle with dangling cables.
- The DFF3D operating frequency is 165 kHz, meaning that the sonar has a wider range than a conventional fish finder.
- CHIRPS from 42 kHz to 65 kHz, Beamwidth
- The 165T/275LHW is a Wide Beam Transducer that can operate at 165 kHz.
- It has a Low—CHIRPS from 42 kHz to 65 kHz and a Beamwidth of 16°.
What is the power rating of the product?
1000 Watt
- Mount and be done with it. No more hassle with dangling cables.
- The DFF3D operating frequency is 165 kHz, meaning that the sonar has a wider range than a conventional fish finder.
- CHIRPS from 42 kHz to 65 kHz, Beamwidth
- The 165T/275LHW is a Wide Beam Transducer that can operate at 165 kHz.
- It has a Low—CHIRPS from 42 kHz to 65 kHz and a Beamwidth of 16°.
- Furuno Pocket Mount Combo Wide Beam Transducer for DFF3D
- Operating frequency: 165 kHz
- Low& 8212;CHIRPS: 42 kHz to 65 kHz
- High& 8212;CHIRPS: 150 kHz to 250 kHz
- Furuno's 165T/275LHW Pocket Mount Combo Wide Beam Transducer is a perfect choice for DFF3D model.
- The operating frequency is 165 kHz, Low& 8212;CHIRPS from 42 kHz to 65 kHz, Beamwidth 25& 176; to 16& 176; High& 8212;CHIRPS from 150 kHz to 250 kHz, Beamwidth
What is the length of cable?
39.3 Feet
Save $330 when you buy the Furuno 165T/275LHW Pocket Mount Combo Wide Beam Transducer f/DFF3D for only $3369 from NVN Marine! Same day free shipping before 3pm.
Furuno 165T/275LHW Pocket Mount Combo Wide Beam Transducer f/DFF3D Technical Specifications
| Type: | |
|---|---|
| Vendor: |
Furuno |
| Weight: |
21.7 lb |
Furuno 165T/275LHW Pocket Mount Combo Wide Beam Transducer f/DFF3D User Reviews
Furuno 165T/275LHW Pocket Mount Combo Wide Beam Transducer f/DFF3D Shipping & Return
| Shipping Weight: |
21.7 lb |
|---|---|
| Box Sizes: |
11.00 (h) x 13.00 (w) x 16.00 (l) |
| Cubic Feet: |
2288.0 |
| Returnable: |
Yes |
