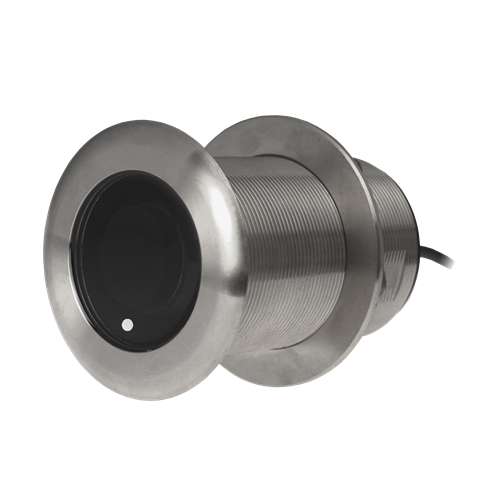

Furuno SS75M Stainless Steel Thru-Hull Chirp Transducer - 20° Tilt - Med Frequency
Shipping (3PM)
Within 30 days
Furuno SS75M Stainless Steel Thru-Hull Chirp Transducer - 20° Tilt - Med Frequency Product Description
Discover the precision and reliability that serious boaters demand with the Furuno SS75M thru-hull chirp transducer. Crafted from robust stainless steel, this medium-frequency powerhouse is designed for hulls with a 16-24 degree deadrise, featuring a 20-degree tilt for optimal beam projection. Whether you're chasing trophy fish in coastal waters or navigating challenging seabeds, this transducer delivers crystal-clear sonar images down to 900 feet, empowering confident decisions on the water.
Why the Furuno SS75M Stands Out for Marine Enthusiasts
Unlike standard fixed-frequency transducers, the SS75M's CHIRP technology sweeps from 80 to 130 kHz, providing exceptional target separation and bottom detail. This means sharper images of fish arches, bait balls, and structure—even in murky conditions. The stainless steel housing withstands harsh saltwater environments, resisting corrosion while maintaining acoustic performance over time.
- Versatile Coverage: Beamwidth adjusts from 24 degrees at lower frequencies for wide-area scanning to 16 degrees at higher ones for pinpoint precision.
- Integrated Sensing: Tracks both depth and water temperature, giving you a complete picture of your underwater world.
- Easy Integration: 10-pin connector pairs seamlessly with Furuno's network sounders and multifunction displays, supporting 600-watt power for robust signal strength.
- Generous Reach: 39 feet of cable simplifies routing during installation, reducing clutter in tight bilge spaces.
Boaters report fewer false readings and more reliable bottom tracking compared to budget alternatives, making it a smart upgrade for offshore adventures or tournament fishing.
Unlock Superior Sonar Performance with Medium CHIRP
Medium CHIRP shines in the 80-130 kHz range, striking a perfect balance for mid-depth applications. Low-end frequencies penetrate deeper for structure scanning, while high-end sweeps reveal fine details like individual fish or wreck features. Paired with Furuno's advanced DSP processing, you'll experience noise rejection that cuts through boat wakes and thermoclines, ensuring every ping counts.
"Switched to the SS75M on my center console, and the difference in fish-finding clarity is night and day—especially marking wrecks at 400 feet." — Experienced offshore angler
For hulls with moderate deadrise, the 20-degree tilt aligns the beam perpendicular to the seabed, maximizing coverage without dead zones astern.
Pro Tips for Seamless Thru-Hull Installation
- Prep the Hull: Select a flat spot forward of the prop, away from strakes or through-hulls that could cause interference. Sand to expose gelcoat for a secure bond.
- Angle It Right: The 20-degree tilt compensates for hull deadrise—use a template to drill precisely, ensuring the transducer faces straight down when underway.
- Seal for Success: Apply marine sealant around the thru-hull fitting, torquing to spec to prevent leaks. Fair the leading edge smooth for minimal drag.
- Wire Smartly: Route the 39-foot cable through existing conduits, securing with zip ties and avoiding heat sources or sharp edges.
- Test Thoroughly: Calibrate gain and range on calm water, tweaking for your vessel's speed and bottom types.
Common pitfall: Over-tightening can crack the housing—hand-tight plus a quarter turn is ideal. This setup minimizes air entrainment at speed, preserving high-quality returns.
Real-World Wins: From Recreational to Pro Fishing
Recreational skippers love how it reveals hidden ledges for crappie or stripers. Commercial ops rely on its durability for daily bait net hauls, spotting schools amid clutter. Pair it with Furuno's DRS or TZTouch series for CHIRP-ready overlays on charts, turning raw data into actionable intel.
In variable conditions, the power handling up to 600 watts scales with your sounder, adapting from slow trolling to planing speeds without washout.
Frequently Asked Questions
What hull types is the Furuno SS75M best suited for?
It's optimized for hulls with 16-24 degree deadrise thanks to the 20-degree tilt, ensuring the beam projects straight down for accurate readings.
Does this transducer measure water temperature?
Yes, it provides both depth and temperature sensing, helping you track thermal layers where fish congregate.
What's the advantage of CHIRP over traditional sonar?
CHIRP sweeps frequencies for better resolution and target ID, showing clearer fish separation and bottom detail than single-frequency units.
How deep can the SS75M detect targets?
It performs reliably down to 900 feet, ideal for coastal and near-offshore use.
Is stainless steel housing suitable for saltwater?
Absolutely—stainless steel offers superior corrosion resistance, making it a top choice for prolonged exposure in marine environments.
What sounders is it compatible with?
It connects via 10-pin to Furuno sounders supporting medium CHIRP, like the FCV series, for plug-and-play operation.
Can I use this on a high-speed planing hull?
Yes, the streamlined design and tilt minimize cavitation at speed, delivering stable images up to 30+ knots.
For over 70 years, Furuno has been continuously imagining and creating new solutions, making new marine electronic equipment with the goal of offering both performance and simplicity for everyone. Not only for men and women who make a living on the seas, but also for those who simply want to enjoy the boating lifestyle. For them, Furuno has become synonymous with quality, performance and reliability.
Furuno SS75M20 Attributes
- Mounting Location: Thru-Hull Mount
- Number Of Pins: 10 Pin
- Depth: 900 Feet
- Power Rating: 600 Watt
- Frequency Range: 80 To 130 kHz Medium CHIRP
- Supported Angle: 24 To 16 Degree Beamwidth
- Cable Length: 39.3 Feet
Furuno SS75M20 Features & Benefits
- Housing Material: Stainless Steel
- Function: Depth, Temperature
- Mount Style: Thru-Hull
- Frequency: 80 To 130 Kilohertz
- Limited 3 Year Warranty
SS75M Stainless Steel Thru-Hull Chirp Transducer - 20° Tilt - Med Frequency
Features:
- Frequency: Chirp 80 - 130 kHz
- Power Rating: 600 Watts
- Connector: 10 Pin
- Tilt: 20 Degree
- Deadrise of Hull: 16-24 Degrees
Simrad ss75m 12-degree tilt Model: 000-13909-001 chirp sensor improves the details and resolution of bottom detection by 5 to 10 times, so it is as accurate as possible
SKU: NVN-76514
MPN: SS75M/20
UPC: 611679382160
Furuno SS75M Stainless Steel Thru-Hull Chirp Transducer - 20° Tilt - Med Frequency Related Products
Sika Sikaflex® 291 Fast Cure - White - 3oz TubeSika Sikaflex® 291 Fast Cure - Black - 3oz Tube
Frequently Asked Questions (FAQ) About Furuno SS75M Stainless Steel Thru-Hull Chirp Transducer - 20° Tilt - Med Frequency
Who is the Furuno?How to describe Furuno SS75M Stainless Steel Thru-Hull Chirp Transducer - 20° Tilt - Med Frequency?
What is the power rating of the product?
What is the length of cable?
Who is the Furuno?
How to describe Furuno SS75M Stainless Steel Thru-Hull Chirp Transducer - 20° Tilt - Med Frequency?
- The SS75M is a thru-hull transducer with a high power rating and a chirp frequency of 80 - 130 kHz.
- The SS75M offers 600 watts of power, 10 pin connector, and tilts 20 degrees from the hull.
- The SS75M is best suited for 16 to 24 degree deadrise boats.
- The SS75M is a thru-hull transducer with a 20 degree tilt for use on boats with a deadrise of 16 to 24 degrees.
- This transducer is highly recommended for boats that have a large deadrise and want to use the same transducer as those who have smaller deadrises.
- The SS75M has the same power rating as the SS70M, but has a higher frequency range.
- The SS75M is a thru-hull, chirp transducer designed for use with boats up to 24 metres in length. It has a frequency range of 80-130 kHz and is best suited to the lower frequencies of the spectrum.
- The SS75M incorporates a 10 pin connector for ease of installation and has a tilt angle of 20 degrees. It also features an adjustable deadrise on hull from 16 to 24 degrees.
What is the power rating of the product?
- The SS75M is a thru-hull transducer with a high power rating and a chirp frequency of 80 - 130 kHz.
- The SS75M offers 600 watts of power, 10 pin connector, and tilts 20 degrees from the hull.
- The SS75M is best suited for 16 to 24 degree deadrise boats.
- The SS75M is a thru-hull transducer with a 20 degree tilt for use on boats with a deadrise of 16 to 24 degrees.
- This transducer is highly recommended for boats that have a large deadrise and want to use the same transducer as those who have smaller deadrises.
- The SS75M has the same power rating as the SS70M, but has a higher frequency range.
- The SS75M is a thru-hull, chirp transducer designed for use with boats up to 24 metres in length. It has a frequency range of 80-130 kHz and is best suited to the lower frequencies of the spectrum.
- The SS75M incorporates a 10 pin connector for ease of installation and has a tilt angle of 20 degrees. It also features an adjustable deadrise on hull from 16 to 24 degrees.
What is the length of cable?
Save $35 when you buy the Furuno SS75M Stainless Steel Thru-Hull Chirp Transducer - 20° Tilt - Med Frequency for only $714 from NVN Marine! Same day shipping before 3pm.
Furuno SS75M Stainless Steel Thru-Hull Chirp Transducer - 20° Tilt - Med Frequency Technical Specifications
| Type: | |
|---|---|
| Vendor: |
Furuno |
| Weight: |
6.2 lb |
