Humminbird XM 9 HW MDI T Transom Mount Transducer

Humminbird XM 9 HW MDI T Transom Mount Transducer Product Description

Humminbird has built its reputation by designing and manufacturing top quality, thoroughly reliable marine equipment. Your Humminbird is designed for trouble-free use in even the harshest marine environment. We encourage you to read this manual carefully in order to get the full benefit from all the features and applications of your Humminbird product.

Humminbird 7102801 Attributes

• Mounting Location: Transom Mount
• Number Of Pins: 7 Pin
• Frequency Range: 150/ 220 kHz Full Dual Spectrum CHIRP Frequency, 455/ 800 kHz, 1.2 MHz Operating Frequency
• Cable Length: 20 Feet

Humminbird 7102801 Features & Benefits

• Fishfinder For Humminbird Is Equipped With A High-Quality Transducer
• Designing And Manufacturing Top Quality, Thoroughly Reliable Marine Equipment
• Designed For Trouble-Free Use In Even The Harshest Marine Environment
• Made In USA
• Limited 1 Year Warranty

Humminbird 7102801 Installation Instructions

• 532508-4_B XM T Fixed Transom Transducer Installation Guide.pdf

Humminbird 7102801 Warranties

• Humminbird 1-Year Limited Warranty.pdf

Humminbird 7102801 Technical Bulletins

• 532651-1EN_A Transducer Resource Guide.pdf
• 532651-1EN_A Transducer Resource Guide.pdf

XM 9 HW MDI T Transom Mount Transducer

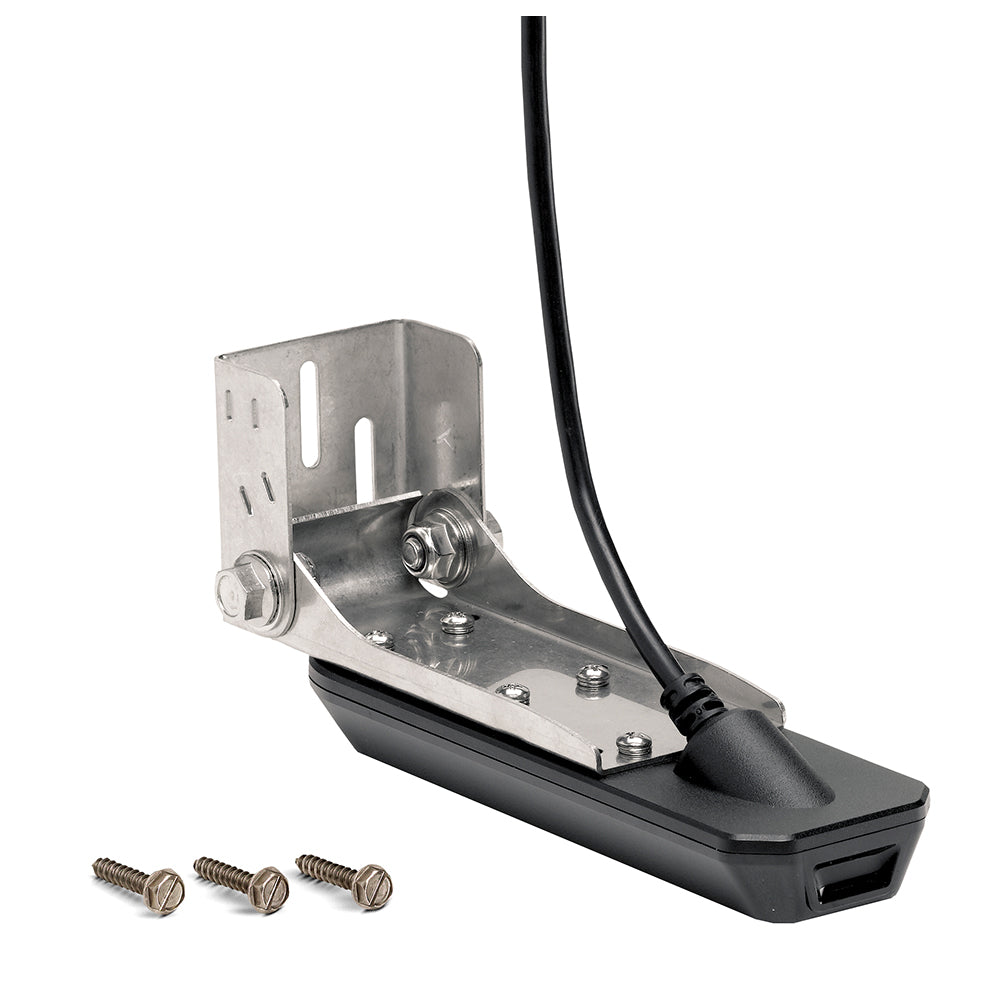

MEGA Down Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, impact-release mounting bracket and 20' cable.

Features:

• This accessory is compatible with the following Humminbird products: HELIX 8 G3N Series MEGA DI+ and MEGA SI+, HELIX 9 G3N Series MEGA DI+ and MEGA SI+, HELIX 10 G3N Series MEGA DI+ and MEGA SI+, HELIX 12 G3N Series MEGA DI+ and MEGA SI+.
• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
• Dual Spectrum CHIRP Max Depth: 1200ft (365m)
• Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m)
• 1-Year Limited Warranty

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
