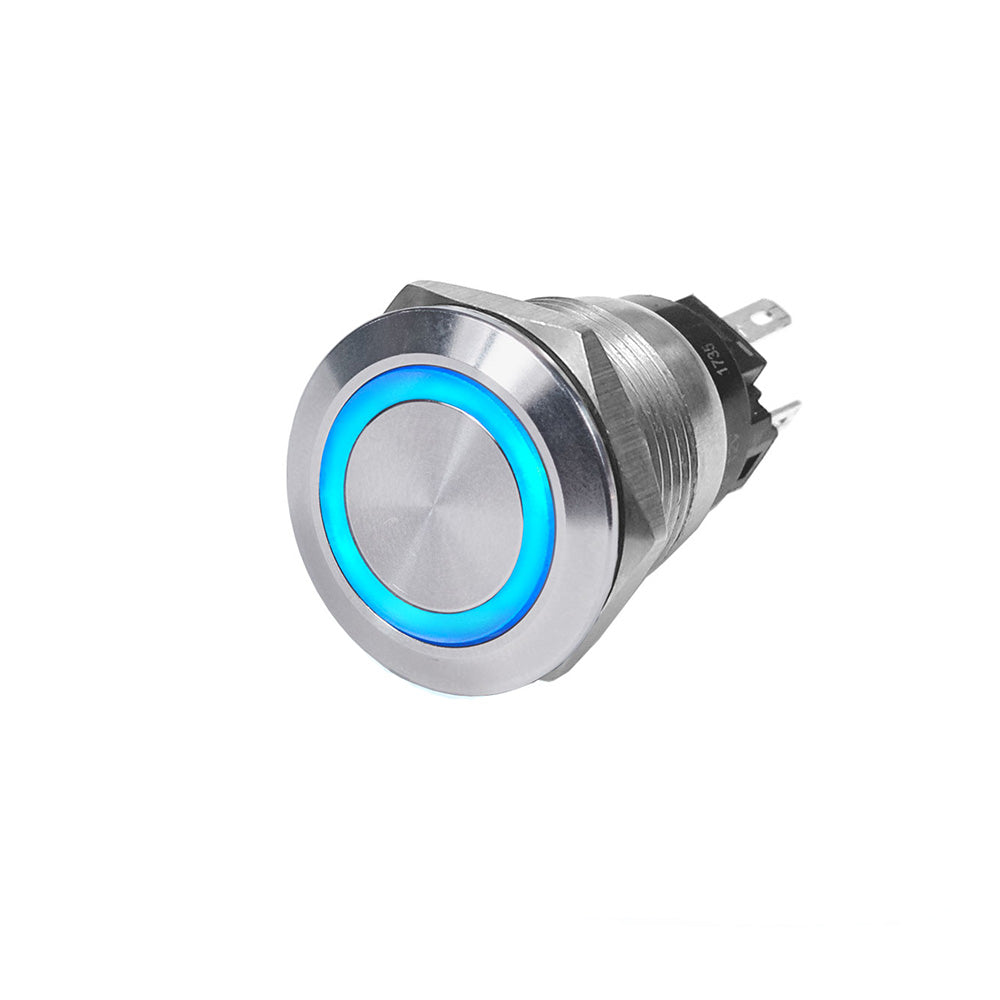

Blue Sea 4160 SS Push Button Switch - Off-On - Blue - 10A

Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.

Blue Sea 4160BSS Attributes

• Use: On/ Off Switch
• Material: Stainless Steel
• Amperage: 10 Amp
• Terminal Type: Quick Connect
• Mount Location: Panel
• Includes Relay: No
• Includes Wiring: No
• Weatherproof Sealed: No
• Lighted: Yes
• Circuit Activation: Momentary

Blue Sea 4160BSS Features & Benefits

• 10 Ampere Continuous
• Single Pole Double Throw Or Single Pole Single Throw
• Can Be Wired For Normally Open Or Normally Closed
• Installs With .110 Inch Quick Connects
• No Supplier Warranty

Blue Sea 4160BSS Technical Bulletins

• 4160 (1).pdf
• 4160.pdf
• 4160.pdf

4160 SS Push Button Switch - Off-On - Blue - 10A

• 10A continuous
• Single Pole Double Throw or Single Pole Single Throw
• Can be wired for normally open or normally closed
• Installs with .110inch quick connects (included in retail package)

Specifications

• Action: OFF-ON
• Amperage: 10A @ 12V DC
• Nominal Voltage: 12V DC
• Maximum LED Operating Current: 20mA
• Minimum Operating Temperature: -10° C
• Maximum Operating Temperature: 70° C
• Minimum Storage Temperature: -55° C
• Maximum Storage Temperature: 85° C
• Illumination: Independent – Separate contacts for LED power
• Mounting Hole: 19mm
• Switching Cycles: 18,000
• Termination: 5 – 0.110inch Quick Connect terminals

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Marinco's Blue Sea Systems 10A button LED ring switch (4160-BSS). Type: Off On. color: blue. This top product is professionally produced and meets strict industry standards.
SKU: NVN-70123
MPN: 4160-BSS
UPC: 632085041601
