Garmin Reactor 40 Steer-by-wire Corepack f/Yamaha Helm Master

Garmin Reactor 40 Steer-by-wire Corepack f/Yamaha Helm Master Product Description

Reactor 40 for steer-by-wire provides robust autopilot capabilities for Yamaha Helm Master systems. With a complete package designed for powerboats and sailboats, Garmin brings an advanced marine technology to the boating public that was once only available for commercial boats. The Reactor 40 autopilot series is simply the most responsive autopilot system we have ever offered. Reactor 40 autopilots are very versatile. Both powerboat and sailing features are available in all corepacks, including heading hold, wind hold, tack and jibe, step turns and more. This amazing autopilot actually reacts to the sea to hold your course. Even when the boat is pitching and rolling, you can remain confident that the Reactor 40 autopilot will keep you on your desired course.

Garmin 100070587 Attributes

• Compatibility: Yamaha Helm Master Systems With Complete Package Designed For Powerboats And Sailboats
• Dimension: CCU 3-19/32 Inch Diameter, Buzzer/Alarm 29/32 Inch Length x 1 Inch Diameter
• Voltage Rating: 9 To 16 Volt

Garmin 100070587 Features & Benefits

• Solid-State 9-Axis Attitude Heading Reference System
• Minimal Commissioning And Calibration
• Minimizes Heading Error, Course Deviation, Rudder Movement And Power Consumption While Providing A Comfortable Ride
• Fully Gasketed, High-Impact Plastic, Waterproof To IEC 529 IPX7 Standards
• Limited 1 Year Warranty

Garmin 100070587 Installation Instructions

• GHP_Reactor_SBW_Yamaha_Addendum_ML.pdf
• Technical_Reference_for_Garmin_NMEA_2000_Products_EN-US (2).pdf
• GHC_20_OM_EN-US.pdf
• GHC_GMI20_Flush_Mount_Template.pdf
• Reactor_40_Steer-by-Wire_Configuration_Guide_EN (1).pdf

Garmin 100070587 Warranties

• garmin-marine-warranty-policy.pdf

Garmin 100070587 Technical Bulletins

• GHC_20_OM_EN-US.pdf
• GHC_GMI20_Flush_Mount_Template.pdf

Reactor 40 Steer-by-wire Corepack for Yamaha Helm Master

** Not compatible with Helm Master EX **

Garmin's Most Responsive Autopilot System on the Water

• Solid-state 9-axis Attitude Heading Reference System (AHRS)
• Minimizes heading error, course deviation, rudder movement and power consumption while providing a comfortable ride
• Minimal commissioning and calibration

The Reactor 40 for steer-by-wire provides robust autopilot capabilities for Yamaha Helm Master systems. With a complete package designed for powerboats and sailboats, Garmin brings an advanced marine technology to the boating public that was once only available for commercial boats. The Reactor 40 autopilot series is simply the most responsive autopilot system we have ever offered.

Reactor 40 autopilots are very versatile. Both powerboat and sailing features are available in all corepacks, including heading hold, wind hold, tack/jibe, step turns and more.

Solid-state 9-axis AHRS

With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. In addition, this system greatly minimizes heading error, course deviation, rudder movement and power consumption while providing a comfortable ride for all on board.

Reacts to Conditions

This amazing autopilot actually reacts to the sea to hold your course. Even when the boat is pitching and rolling, you can remain confident that the Reactor 40 autopilot will keep you on your desired course.

Minimal Commissioning and Calibration

All autopilots require commissioning and calibration all of them. We know you just want to get on the water, so we made this process as fast and easy as possible. That's the power of simple.

Full Integration with Garmin Chartplotters

Combined with a compatible Garmin networked chartplotter, you can have full control of Reactor 40 from wherever you are on the boat. In addition to holding its course in virtually all weather and wind conditions, the system can smoothly perform a variety of preprogrammed trolling and search procedures. Plus, with a compatible Garmin networked chartplotter and BlueChart g2 Vision charts (sold separately), you gain optional features such as Auto Guidance, which automatically steers GPS paths.

Connect to Networked Devices

The Reactor 40 autopilot is operated using up to 3 GHC helm control units. GHC communicates with the autopilot system via your NMEA 2000 network, so autopilot heading data can be shared easily with other devices. This enables MARPA and chart overlay when connected to a Garmin chartplotter. An optional handheld wireless remote control is also available; however, for the highest level of convenience, control the using a compatible quatix 3 or quatix 5 marine multisport smartwatch.

In The Box:

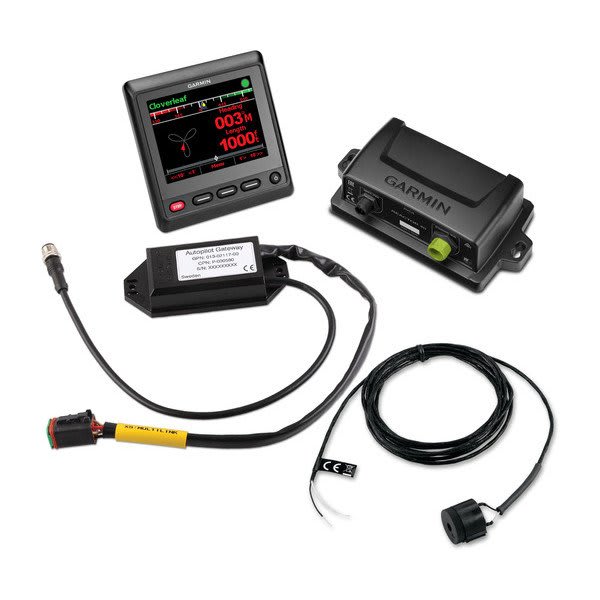

• Reactor 40 CCU (Course Computer Unit)
• GHC 20 helm control display
• Yamaha Gateway
• CCU cable
• Buzzer
• NMEA 2000 drop cables (2 meters)
• NMEA 2000 power cable
• NMEA 2000 T-connectors
• Male and female terminators
• Documentation

¹Auto Guidance is for planning purposes only and does not replace safe navigation operations.

Garmin Reactor 40 Steer-by-wire Corepack for Yamaha Helm Master

Model: 010-00705-87

• Solid-state 9-axis Attitude Heading Reference System (AHRS)
• Minimizes heading error, course deviation, rudder movement and power consumption while providing a comfortable ride
• Minimal commissioning and calibration

Reactor 40 for steer-by-wire provides robust autopilot capabilities for Yamaha Helm Master systems. With a complete package designed for powerboats and sailboats, Garmin brings an advanced marine technology to the boating public that was once only available for commercial boats. The Reactor 40 autopilot series is simply the most responsive autopilot system we have ever offered.

Reactor 40 autopilots are very versatile. Both powerboat and sailing features are available in all corepacks, including heading hold, wind hold, tack/jibe, step turns and more.

With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. In addition, this new system greatly minimizes heading error, course deviation, rudder movement and power consumption while providing a comfortable ride for all on board.

This amazing autopilot actually reacts to the sea to hold your course. Even when the boat is pitching and rolling, you can remain confident that the Reactor 40 autopilot will keep you on your desired course.

All autopilots require commissioning and calibration — all of them. We know you just want to get on the water, so we made this process as fast and easy as possible. That’s the power of simple.

Combined with a compatible Garmin networked chartplotter, you can have full control of Reactor 40 from wherever you are on the boat. In addition to holding its course in virtually all weather and wind conditions, the system can smoothly perform a variety of preprogrammed trolling and search procedures. Plus, with a compatible Garmin networked chartplotter and BlueChart® g2 Vision® charts (sold separately), you gain optional features such as Auto Guidance , which automatically steers GPS paths.

The Reactor 40 autopilot is operated using up to 3 GHC™ helm control units. GHC communicates with the autopilot system via your NMEA 2000® network, so autopilot heading data can be shared easily with other devices. This enables MARPA and chart overlay when connected to a Garmin chartplotter. An optional handheld wireless remote control is also available; however, for the highest level of convenience, control the using a compatible quatix® 3 or quatix 5 marine multisport smartwatch.

Auto Guidance is for planning purposes only and does not replace safe navigation operations.

Specifications

CCU Specifications
Dimensions	3 19/32 in. diameter (91.4 mm)
Temperature range	From 5°F to 131°F (from -15°C to 55°C)
Case material	Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
CCU cable length	9.5 ft. (3 m)
NMEA 2000 power input	9-16V
NMEA 2000 LEN	3 (150 mA)
Buzzer/Alarm Specifications
Dimensions (L Diameter)	29/32 in. 1 in. (23 mm 25 mm)
Temperature range	from 5°F to 131°F (from -15°C to 55°C)
Cable length	10 ft. (3.0 m)
GHC 20 Specifications
Unit dimensions, WxHxD	4.3 " x 4.4 " x 1.9 " (10.9 x 11.2 x 4.8 cm)
Display resolution, WxH	320 x 240 pixels
Display type	QVGA color LCD display
NMEA output	NMEA 0183, NMEA 2000®
Supply voltage	Powered by NMEA 2000 bus, 9-16 VDC, units operate up to 32 VDC
Operating temperature	-15° C to 70 C° (5° F to 158° F)
Max power consumption	3W
Viewing angle	170°
Brightness	1200 cd/m2 (NIT)
Water rating	IPX7
NMEA 2000 LEN (Load Equivalency Number)	7 (350 mA at 9VDC)
Autopilot Gateway Specifications
Dimensions (L Diameter)	5 1/8" 2 3/8" x 1" (130 mm 60 mm x 25 mm)

What's in the Box:

• Reactor 40 CCU (Course Computer Unit)
• GHC™ 20 helm control display
• CCU cable
• Buzzer
• NMEA 2000® drop cables (2 meters)
• NMEA 2000 power cable
• NMEA 2000 T-connectors
• Male and female terminators
• Documentation
• Yamaha Gateway

The GHC helmet control unit is used to control the reactor 40. The control unit communicates with the autopilot system through the Nmea 2000 bus, so the autopilot heading data can be easily shared with other devices. When connected to a Garmin plotter, this will enable Marpa and chart overlays. Up to three GHC controllers can be connected to a single reactor 40. There are complete kits designed for motor boats and sailing boats. Reactor 40 is used in conjunction with a compatible networked chartplotter to provide full control no matter where you are on the ship. In addition to keeping the heading out in almost all weather and wind conditions, the system can also smoothly execute various pre-programmed trolling and search procedures. The Reactor 40 autopilot is very versatile. All core components provide motorboat and navigation functions, including heading keeping, wind keeping, tack/jib, turning, etc.





Save $1470 when you buy the Garmin Reactor 40 Steer-by-wire Corepack f/Yamaha Helm Master for only $1829 from NVN Marine! Same day free shipping before 3pm.
